Fuchuan Copper Core Wire Single Twist Machine 30MM - 200MM Cable Laying Equipment

Fuchuan Copper Core Wire Single Twist  Machine 30MM - 200MM Cable Laying Equipment
Fuchuan Copper Core Wire Single Twist  Machine 30MM - 200MM Cable Laying Equipment Fuchuan Copper Core Wire Single Twist  Machine 30MM - 200MM Cable Laying Equipment Fuchuan Copper Core Wire Single Twist  Machine 30MM - 200MM Cable Laying Equipment Fuchuan Copper Core Wire Single Twist  Machine 30MM - 200MM Cable Laying Equipment

Large Image :  Fuchuan Copper Core Wire Single Twist Machine 30MM - 200MM Cable Laying Equipment

Product Details:
Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: ISO9001:2008
Model Number: FC-800-2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: wooden packing
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 500 SETS/PER YEAR

Fuchuan Copper Core Wire Single Twist Machine 30MM - 200MM Cable Laying Equipment

Description
Color: Sky Blue/apple Green Fit For Bobbin: Dia800/1000/1250
Wire: PE/PVC Core Wire Or Copper Wire Fit For Wire: Dia0.6mm-3.0mm
Max Speed: 500rpm Direction Of Lay: Righ Or Left
Pitch: 30-200 Max Twist Diameter: 16mm
Control Type: PLC Computer Control
High Light:

wire buncher machine

,

electric wire making machine

Fuchuan Copper Core Wire Single Twist Machine 30MM - 200MM Cable Laying Equipment



1.Quick detail

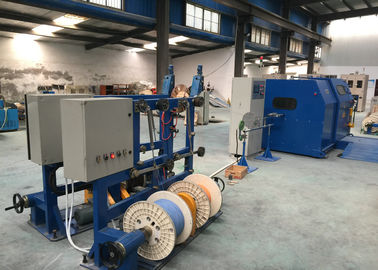

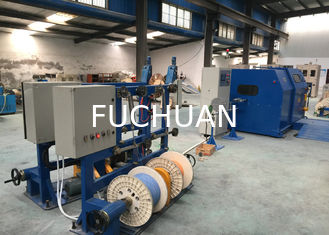

Machine usage:It is mainly used in cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping. The entire machine is consists of pay off rack, central bundler, side pay off rack for the central coil tapping set, single twist(cable-laying) machine and electrical control cabinet. Fit for PVC coated centre bundling and twisting, copper wire re-twisting.

2.

      2. Characteristics



2.1 single core wire :¢1.0mm-¢3.0mm

2.2 Main machine max rotating speed:500rpm

2.3 Twisting pitch:30-200mm

2.4 Max twisting outside diameter: ¢15mm

2.5 Max hauling speed:500r/min

2.6 Main machine centre height: 800mm

2.7 Total power:11KW

2.8 Max speed of central bundling machine :2600m/min



3.Main components:

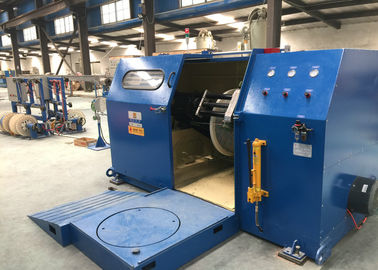

3.1 FC-800 main machine 1set

3.2 FC-800 centre bundling machine 1set

3.3 Wire concentration seat 1set

3.4 Electrical control cabinet 1set

3.5 FC-630 core wire pay off rack 7heads/set*1set



4. Specification:



Equipment models FC-630 FC-800 FC-1000 FC-1250
Twisting usage It is applied to the twisting of PVC/PE core wire or copper wire, central bundling or side bundling.
Applicable dia(mm) φ0.60-φ3.0 φ0.60-φ3.0 φ1.0-φ6.0 φ1.0-φ6.0
Max twist outer dia φ12 φ16 φ25 φ30
Pitch(mm) 10-150 30-200 50-300 50-400
Direction of lay Optional for right or left
Take-up bobbin size φ630

φ800



φ1000



φ1250



Max rotating speed(rpm) 600 500 500 400

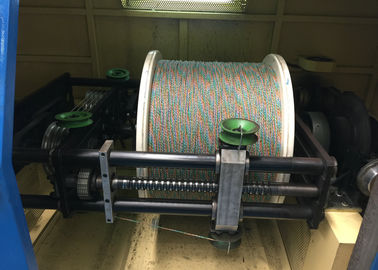

Traversing method Traverse is adopt crossbar-less reciprocating
Take up tension Pneumatic tension automatic regulate
Brake mode Disc brake
Bundling mode Central bundling or side bundling
Replace pitch mode Computer pitch or gear pitch



Other information:



active pay off or passive pay off



Terms of payment:



FOB Shanghai / Ningbo



Payment terms:



30% down payment,70% before shipment



Delivery time:



45days after receive the downpayment



Origin:



China



Minimum order:



1set



Package:



With container

Fuchuan Copper Core Wire Single Twist  Machine 30MM - 200MM Cable Laying Equipment 0

Fuchuan Copper Core Wire Single Twist  Machine 30MM - 200MM Cable Laying Equipment 1

Fuchuan Copper Core Wire Single Twist  Machine 30MM - 200MM Cable Laying Equipment 2
