Product Details:
|
| Color: | Sky Blue Or Apple Green | Fit For Bobbin: | Dia 1250mm |
|---|---|---|---|
| Wire: | PE/PVC Core Wire Or Copper Wire | Fit For Wire: | Dia1.0mm-6.0mm |
| Max Speed: | 400rpm | Direction Of Lay: | Left Or Right |
| Pitch: | 50-400 | Max Twist Diameter: | 30mm |
| Type: | Gear | ||
| High Light: | wire buncher machine,electric wire making machine |
||

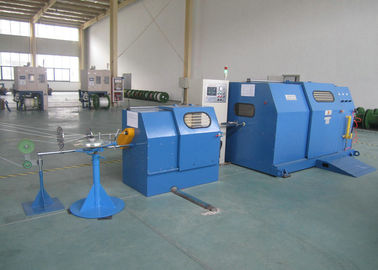

NOISELESS Cable Laying Equipment / Single Twist Machine For PE / PVC Core Wire
Quick Details:
Series for 1250 gear type single twist Machine / (cable laying) machine
Characteristics:
1. mainly used in cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping.

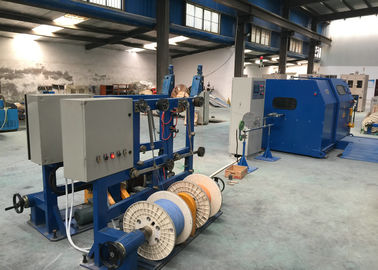

2. The entire machine is consists of pay off rack, central bundler, side pay off rack for the central coil tapping set, single twist(cable-laying)machine and electrical control cabinet.
Specifications:
|
Equipment models |
FC-1250-2 |
|
Twisting usage |
It is applied to the twisting of PVC/PE core wire or copper wire, central bundling or side bundling. |
|
Applicable dia(mm) |
φ1.0-φ6.0 |
|
Max twist outer dia |
φ30 |
|
Pitch(mm) |
50-400 |
|
Direction of lay |
Optional for right or left |
|
Take-up bobbin size |
φ1250 |
|
Max rotating speed(rpm) |
400 |
|
Traversing method |
Traverse is adopt crossbar-less reciprocating |
|
Take up tension |
Pneumatic tension automatic regulate |
|
Brake mode |
Disc brake |
|
Bundling mode |
Central bundling or side bundling |
|
Replace pitch mode |
Computer pitch or gear pitch |
