Product Details:
|
| Color: | Sky Blue | Fit For Bobbin: | Diameter 300mm |
|---|---|---|---|
| Fit Wire: | 0.5-1.50mm | Wire: | Core Wire |
| Power: | 3.7kw | ||
| High Light: | wire twister machine,metal twisting machine |
||

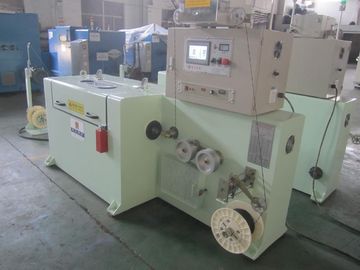

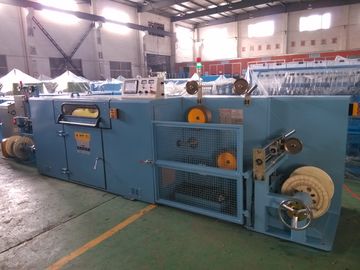

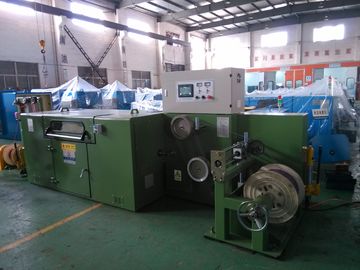

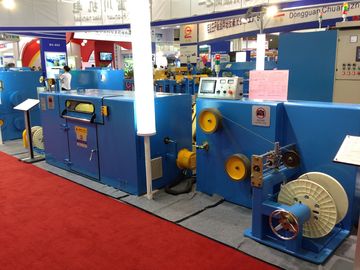

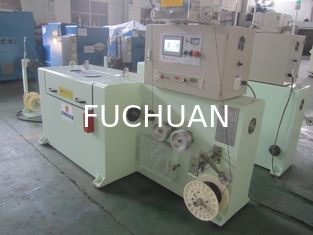

Fuchuan 2500RPM Bare Copper Wire Buncher Machine Twisting Machine / Equipment 3.7Kw For High Frequency Data Cable
Quick Details:
Series for on-twist double twist machine
A. Parameter of FC-300E high speed double twist bunching machine:
It is applied to produce the high frequency date cable.Lan cable(CAT6 cable),USB2.0
USB3.0,Cate-6e,Cate-7E,HDMI and other high speed date cable.
Characteristics:
1. Applied for wire :core wire φ0.5～φ1.5mm
2. Max outerside twisted wire: core wire φ1.0～φ3.0mm
3. Pay off bobbin:φ300*φ30* 160
4. Outer pay off type: active pay off
5. Max speed of bow:2500RPM
6. Double twist pitch:5～50mm
7. Main power:3.7KW inverter motor+inverter
8. Brake:adopt electromagnetic break, when meters arrived it will automatically stopped.
9. Tension control: PLC+magnetic powder clutch,with stable tension.
Specifications:
| Equipment Models | FC-200B | FC-250B | FC-300B | FC-400B | |
| Twisting Usage | Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires). | ||||
| Single Wire Dia(mm) | 0.016～0.08 | 0.03～0.18 | 0.05～0.28 | 0.05～0.32 | |
| Stranding Section Area(mm²) | 0.0014～0.035 | 0.0049～0.3 | 0.0137～0.45 | 0.0137～1.0 | |
| Pitch(mm) | 0.8～4.0(14 classes) | 0.8~10.8(24classes) | 1.6～21.6(24classes) | 3.1～33.3(24classes) | |
| Direction of Lay | Free to right or left | ||||
|
Take-up Bobbin(mm) Outer dia*bore*outer width |
200*31*135 | 300*30*185 |
250*30*185 300*30*185 |
300*30*185 400*56*300 |
|
| Max Rotating Speed(rpm) | 5000rpm(10000tpm) | 4000rpm(8000tpm) | 3500rpm(7000tpm) | 3500rpm(7000tpm) | |
| Main Motor Power | 2.2KW | 3.7KW | 3.7KW | 3.7KW | |
| Inverter Power | 2.2KW | 3.7KW | 3.7KW | 3.7KW | |
| Tension Control | Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin | ||||
| Magnetic Powder Clutch | 0.05kgf | 0.3kgf | 0.6kgf | 0.6kgf | |
| Protection |
automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived |
||||
| Brake Mode | Electromagnetic brake | ||||
| Traversing Method | Rolling wire with ring drive units, winding pitch and breadth are adjustable | ||||
| Operation Mode | Touch Screen Operation | ||||
| Dimension L*W*H | 2000*960*1100 | 2300*1100*1330 | 2300*1100*1330 | 2850*1150*1350 | |
