Product Details:
|
| Color: | Sky Blue Or Apple Green | Fit For Bobbin: | Dia 1250mm |
|---|---|---|---|
| Wire: | PE/PVC Core Wire / Copper Wire | Fit For Wire: | Dia1.0mm-6.0mm |
| Max Speed: | 400rpm | Direction Of Lay: | Righ Or Left |
| Pitch: | 50-400 | Max Twist Diameter: | 30mm |
| Type: | Computer | ||
| High Light: | wire buncher machine,electric wire making machine |
||

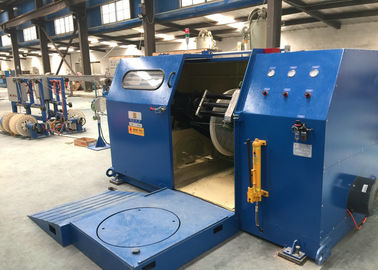

FC - 1250 Single Wire Twist Machine For Applicable , Dia 1.0-6.0
Quick Details:
Apply for twisting of PVC/PE core wire or copper wire, central bundling or side bundling.New arrival, instead of the traditional 400 tube bunching machine with high productivity(4.5times than the machine, especially for 1+6 conductors twisting), save energy, smaller size, lower noise etc.
Characteristics:

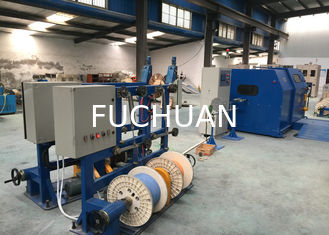

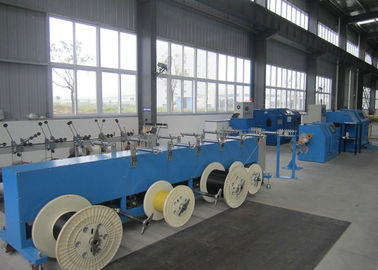

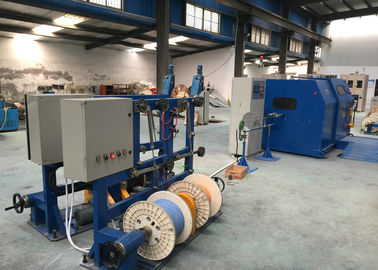

Mainly used in cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping. The entire machine is consists of pay off rack, central bundler, side pay off rack for the central coil tapping set, single twist(cable-laying)machine and electrical control cabinet.
Specifications:
|
Equipment models |
FC-1250-3 |
|
Twisting usage |
It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires. |
|
Single wire dia(mm) |
φ0.20-φ2.54 |
|
Stranding section area (mm²) |
6.0-35.0 |
|
Core wire single wire dia |
φ3.0-φ6.0 |
|
Core wire stranding outer dia |
φ6-φ15 |
|
Pitch(mm) |
35-200(12zones) |
|
Direction of lay |
Optional for right or left |
|
Take up bobbin Outer dia*bore*outer width |
φ1250*φ80*950 |
|
Max rotating speed |
800(1600twist) |
|
Main motor power |
22KW |
|
Inverter power |
22KW |
|
Tension control method |
Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin |
|
Magnetic powder clutch |
20kgf |
|
Protection |
Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. |
|
Brake mode |
Electromagnetic brake |
|

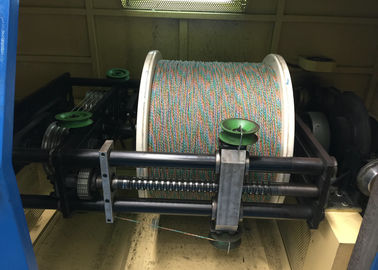

Traversing method |
Rolling ring drive units, winding pitch and breadth are adjustable |
|
Operation mode |
Touch screen operation |
|
Dimension(mm) |
4000L*2200W*2100H |
