Enamelled Wire Bunching Machine High Speed Double Twist Design FC-500B Stranding Equipment

Name: Enamelled Wire Bunching Machine High Speed Double Twist Design FC-500B Stranding Equipment
Brand: Kunshan Fuchuan Electrical and Mechanical Co.,ltd
SKU: FC-500B-2
Price: 18500.00 USD
Availability: InStock

All Products

Copper Wire Bunching Machine
(211)

Wire Twisting Machine
(43)

Double Twist Bunching Machine
(88)

Wire Bunching Machine
(66)

Copper Wire Twisting Machine
(39)

Cable Twisting Machine
(27)

Wire Extruder Machine
(66)

PVC Extrusion Machine
(40)

Single Twist Machine
(14)

Cable Extrusion Machine
(27)

Wire Annealing Machine
(31)

Certification

Customer Reviews

The machine from Fuchuan is with high quality.We have confidence of its machine. And we have cooperation for many years. No 1 machine in China.

—— Mr Robert Klimko

I'm Online Chat Now

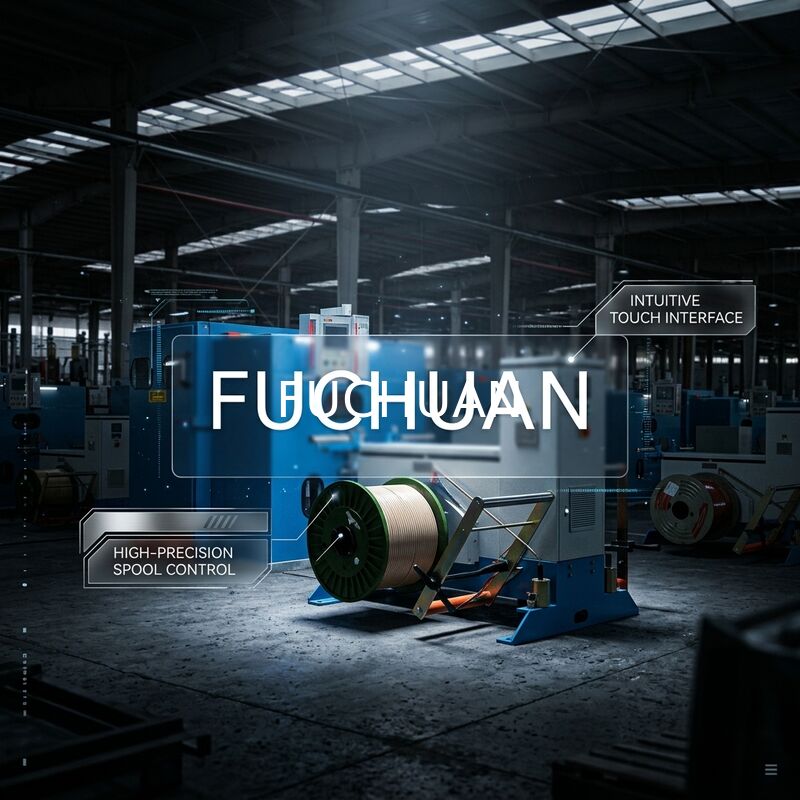

Enamelled Wire Bunching Machine High Speed Double Twist Design FC-500B Stranding Equipment

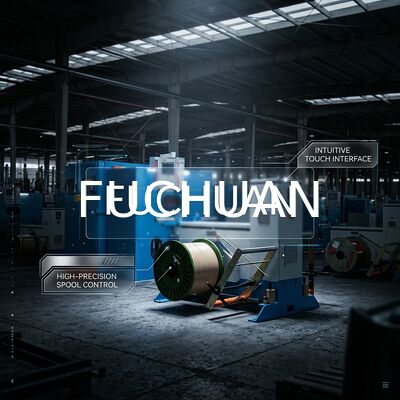

Large Image : Enamelled Wire Bunching Machine High Speed Double Twist Design FC-500B Stranding Equipment

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Fuchuan
Certification:	CE
Model Number:	FC-500B-2

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 16000-21000 / Set
Packaging Details:	Export grade wooden case with shock-proof packing
Delivery Time:	15-45 working days after deposit
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	20 Sets per Month

Contact Now

Enamelled Wire Bunching Machine High Speed Double Twist Design FC-500B Stranding Equipment

Description

Model:	FC-500B-2	Single Wire Diameter:	0.10-0.50 Mm
Stranding Section Area:	0.5-4.0 Mm2	Pitch Range:	15-120 Mm (12 Zones)
Max Rotating Speed:	3000 Rpm (6000 Twist/min)	Main Motor Power:	5.5 KW
Tension Control:	Touch Screen + PLC + Magnetic Powder Clutch	Brake Mode:	Electromagnetic Brake
Traverse Method:	Rolling Ring Drive, Adjustable Pitch	Operation Mode:	Touch Screen
Take-up Bobbin:	500 Mm Outer Diameter	Dimension:	2900L X 1600W X 1500H Mm
Highlight:	FC-500B wire bunching machine , high speed double twist stranding , enamelled wire bunching equipment

Enamelled Wire Bunching Machine High Speed Double Twist Design FC-500B Stranding Equipment

High-speed double twist design for double output per spindle rotation

Enamelled wire bunching machine FC-500B with high-speed double twist design, 5.5KW, high output, CE certified.

Key Features

High-speed double twist design for fine enamelled wire
Stable tension protects insulation from damage
High productivity with low noise and power
Automatic brake and length stop
Suitable for multi-strand fine conductor bunching

Technical Specifications

Model	FC-500B-2
Single Wire Diameter	0.10-0.50 mm
Stranding Section Area	0.5-4.0 mm2
Pitch Range	15-120 mm (12 zones)
Max Rotating Speed	3000 rpm (6000 twist/min)
Main Motor Power	5.5 KW
Tension Control	Touch screen + PLC + magnetic powder clutch
Brake Mode	Electromagnetic brake
Traverse Method	Rolling ring drive, adjustable pitch
Operation Mode	Touch screen
Take-up Bobbin	500 mm outer diameter
Dimension	2900L x 1600W x 1500H mm

Capacity & Application

Optimized for 0.5-4.0 mm2 fine enamelled and bare copper wire bunching in enamel wire and precision cable lines.

Welcome to contact us for detailed quotation, sample testing and customization of the FC-500B-2 high-speed double twist wire bunching machine.
