Product Details:
|
Color: | Sky Blue | Pay Off Bobbin: | Dia 500/630/800/1000mm |
---|---|---|---|
Material: | Low Smoking Non-halogen Flameresistant | Screw Dia: | 35 |
Plastic: | Electric Power Wire/ PU/NYLON Wire | Max Speed: | 500m/min |
Feed Wire Type: | Active Pay Off /tension Pay Off | ||
High Light: | plastic extrusion machinery,pvc extruder machine |

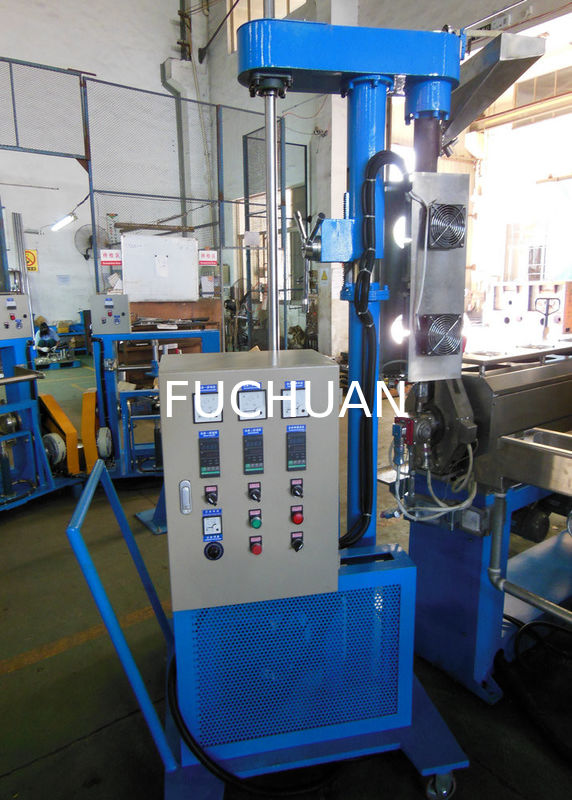

Photovoltaic Movable Injection Machine 500M / Min , sky blue
Characteristics:
FC-35 movable injection machine:
1. Motive: 3.7kw AC motor
2. Screw: 38CrMoAlA diameter 40,ratio:18:1
3. Screw ratating speed: 10-51r/min
4. Elec-heating ,with voltage 220V. screw tubes 2zones, cast Al heater, each heating power 2*550W.
5. Cooling type: fan 2sets,each set power 20w. nose cooling naturally
6. Head: PVC,non-halgon material
7. Lifting type: manual lifting
8. Color: sky blue
