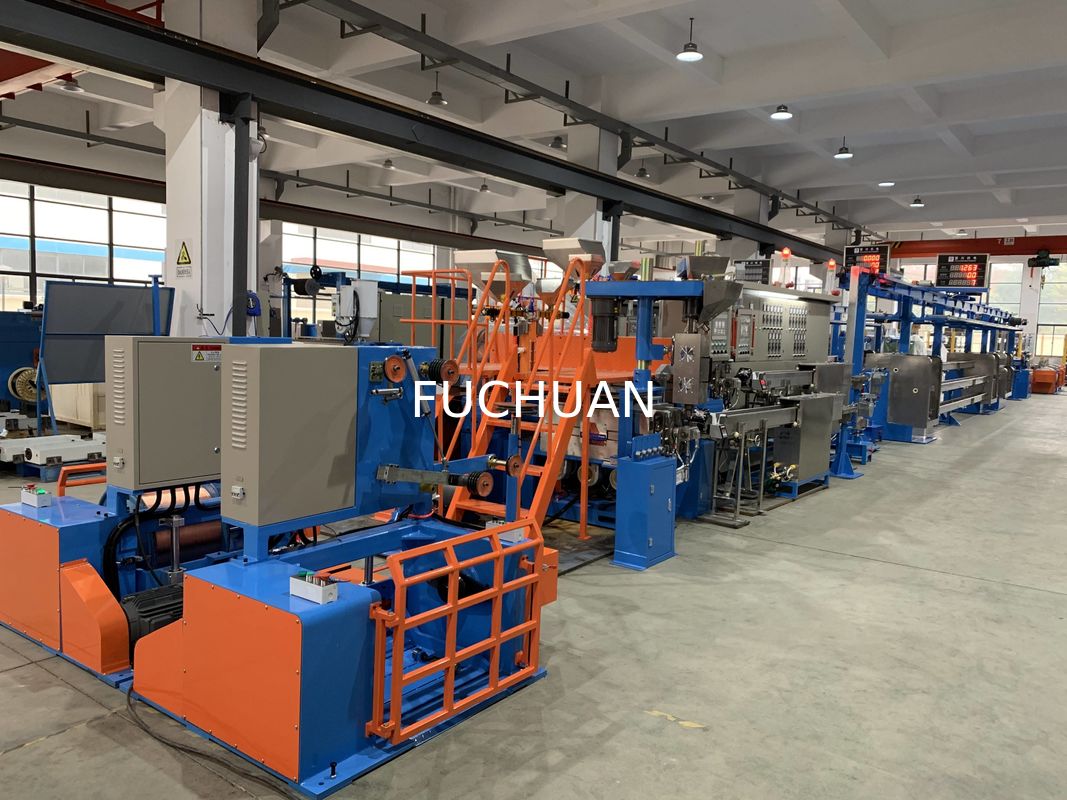

90mm Screw Extruder Insulation Sheath Extrusion Production Line

90mm Screw Extruder Insulation Sheath Extrusion Production Line
90mm Screw Extruder Insulation Sheath Extrusion Production Line 90mm Screw Extruder Insulation Sheath Extrusion Production Line 90mm Screw Extruder Insulation Sheath Extrusion Production Line 90mm Screw Extruder Insulation Sheath Extrusion Production Line 90mm Screw Extruder Insulation Sheath Extrusion Production Line

Large Image :  90mm Screw Extruder Insulation Sheath Extrusion Production Line

Product Details:
Place of Origin: China Kunshan
Brand Name: Fuchuan
Certification: ISO9001
Model Number: FC-90+45
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD53300
Packaging Details: normal packing
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 500 SET/PER YEAR
Contact Now

90mm Screw Extruder Insulation Sheath Extrusion Production Line

Description
Color: Sky Blue Pay Off Bobbin: Diameter 800/1250mm
Material: PVC Screw Dia: 40/50/60/70/80/90
Extrusion: Extruder/ Extrusion Line Screw Extruder: Diameter 90mm
Control System: PLC Cooling Method: Air Cooling
Extrusion Capacity: High Extrusion Type: Single Screw
Heating Power: 55kw Heating Zone: 3-5
Power: 50-100kw Product Name: PVC Extrusion Machine
Screw Diameter: 50-1500mm Screw L/D Ratio: 25:1
Screw Speed: 10-80rpm Size: Customized
Voltage: 380V Weight: 1000-3000kg
Highlight:

pvc extruder machine

,

cable making machine

90mm Screw Extruder Insulation Sheath Extrusion Production Line



Quick detail :



Electrical wire, power wire extruder line,Extrusion Production Line





Usage:

Extruder machine is applied to produce the electrical wire, power wire, insulated sheathing and other wire&cable.



Specification:



Model FC-40 FC-50 FC-60 FC-70 FC-80 FC-90
Screw Diameter Φ40 Φ50 Φ60 Φ70 Φ80 Φ90
Screw L/D Ratio 26:1 26:1 26:1 26:1 25:1 25:1
Feed wire type Active pay off or tension pay off
Extrusion Max speed(m/min) 300 400 500 500 200 200
Extrusion output 40 70 100 150 200 250
Power for main machine(KW) 11 15 18.5 22 30 37
Wire diameter Φ0.5-3.0 Φ0.6-4.0 Φ0.8-8.0 Φ1.5-12 Φ5.0-20 Φ6.0-25
Max accumulator length(m) 220
Accumulator Horizonal accumulator
Cooling channel Folding W type
Capstan diameter Φ340 Φ410 Φ410 Φ510 Double wheel capstan or caterpillar capstan
Capstan power 2.2KW 3.7KW 3.7KW 5.5KW 7.5KW 7.5KW
Take up power 3.7KW 3.7KW 5.0KW 7.5KW 7.5KW 7.5KW
Take up type Double shaft take-up or shaftless take up













































Features:

  • Product Name: Wire Extruder Machine
  • Screw Length: 2000mm
  • Weight: 1900kg
  • Extrusion Head Diameter: Φ90mm
  • Power Supply: 380V/50Hz
  • Plastic Materials: PVC
  • Wire Winding Machine
  • Wire Forming Machinery
  • Wire Forming Machinery



Other information:



Extrusion Production Line:800/1250 active pay off or barrel pay off



Terms of payment:



Extrusion Production Line:FOB Shanghai / Ningbo



Payment terms:



Extrusion Production Line support 30% down payment,70% before shipment



Delivery time:



Extrusion Production Line will be deliveried 45days after receive the downpayment



Origin:



Extrusion Production Line From China



Minimum order:



Extrusion Production Line at lest 1set



Packing and Shipping:

The Wire Extruder Machine is packaged and shipped with the following:

  • Wire Extruder Machine
  • User Manual
  • Quick Start Guide
  • Power Cord
  • Original Packaging



90mm Screw Extruder Insulation Sheath Extrusion Production Line 0

90mm Screw Extruder Insulation Sheath Extrusion Production Line 1

90mm Screw Extruder Insulation Sheath Extrusion Production Line 290mm Screw Extruder Insulation Sheath Extrusion Production Line 3
