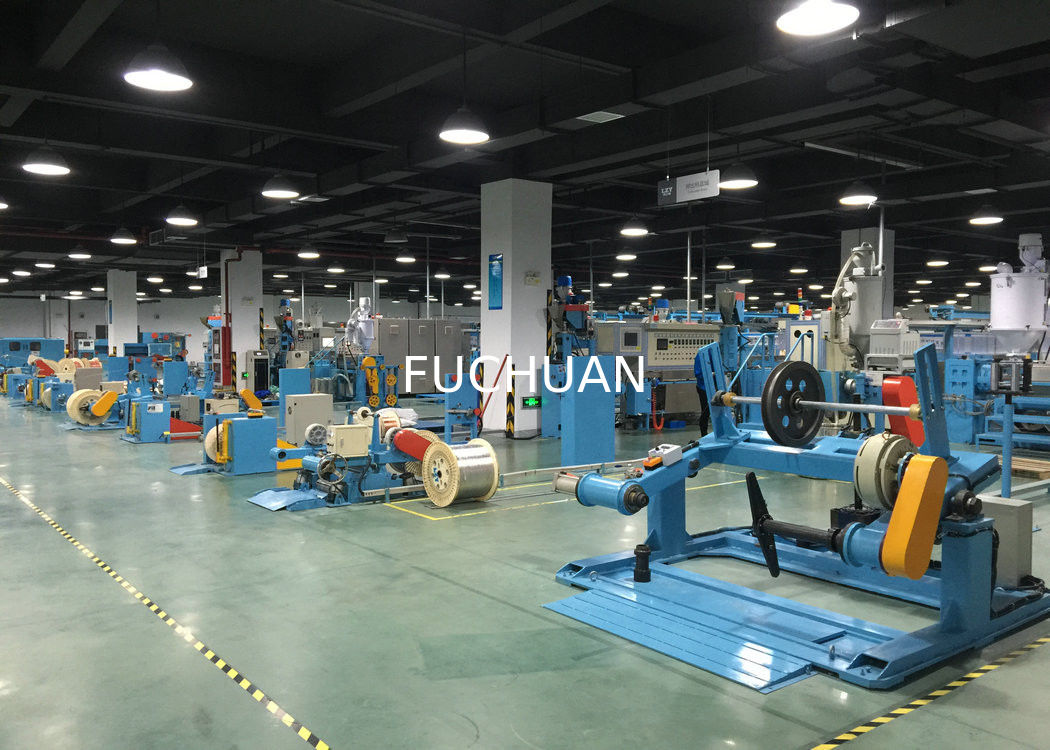

Fuchuan Electrical Wire PU Extrusion Line Tension Pay Off 90mm Screw Dia

Fuchuan Electrical Wire PU Extrusion Line Tension Pay Off 90mm Screw Dia
Fuchuan Electrical Wire PU Extrusion Line Tension Pay Off 90mm Screw Dia Fuchuan Electrical Wire PU Extrusion Line Tension Pay Off 90mm Screw Dia Fuchuan Electrical Wire PU Extrusion Line Tension Pay Off 90mm Screw Dia Fuchuan Electrical Wire PU Extrusion Line Tension Pay Off 90mm Screw Dia

Large Image :  Fuchuan Electrical Wire PU Extrusion Line Tension Pay Off 90mm Screw Dia

Product Details:
Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: ISO9001:2008
Model Number: FC-90+45
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD53300
Packaging Details: normal packing
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 500 SET/PER YEAR

Fuchuan Electrical Wire PU Extrusion Line Tension Pay Off 90mm Screw Dia

Description
Color: Sky Blue Pay Off Bobbin: Diameter 500/630mm
Material: Electrical Wire,power Wire,insulated Sheathing Wire Screw Dia: 90
Feed Wire Type: Active Pay Off Or Tension Pay Off Max Accumulator Length(m): 220
High Light:

pvc extruder machine

,

cable making machine

Fuchuan Electrical Wire PU Extrusion Line Tension Pay Off 90mm Screw Dia





Quick detail:



FC-90 +45 Electrical wire, power wire extruder line



Usage:

It is applied to produce the electrical wire, power wire, insulated sheathing and other wire&cable.



Specification:



Model FC-40 FC-50 FC-60 FC-70 FC-80 FC-90
Screw Diameter Φ40 Φ50 Φ60 Φ70 Φ80 Φ90
Screw L/D Ratio 26:1 26:1 26:1 26:1 25:1 25:1
Feed wire type Active pay off or tension pay off
Max speed(m/min) 300 400 500 500 200 200
Extrusion output 40 70 100 150 200 250
Power for main machine(KW) 11 15 18.5 22 30 37
Wire diameter Φ0.5-3.0 Φ0.6-4.0 Φ0.8-8.0 Φ1.5-12 Φ5.0-20 Φ6.0-25
Max accumulator length(m) 220
Accumulator Horizonal accumulator
Cooling channel Folding W type
Capstan diameter Φ340 Φ410 Φ410 Φ510 Double wheel capstan or caterpillar capstan
Capstan power 2.2KW 3.7KW 3.7KW 5.5KW 7.5KW 7.5KW
Take up power 3.7KW 3.7KW 5.0KW 7.5KW 7.5KW 7.5KW
Take up type

Double shaft take-up or shaftless take up





Ot



















Other information:



active pay off or passive pay off



Terms of payment:



FOB Shanghai / Ningbo



Payment terms:



30% down payment,70% before shipment



Delivery time:



45days after receive the downpayment



Origin:



China



Minimum order:



1set



Package:



With container

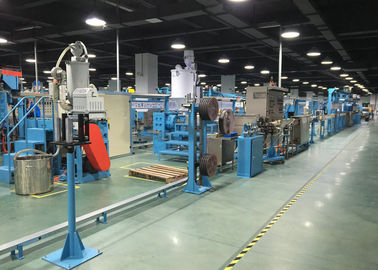

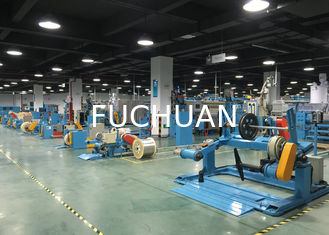

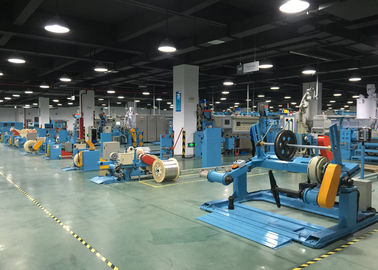

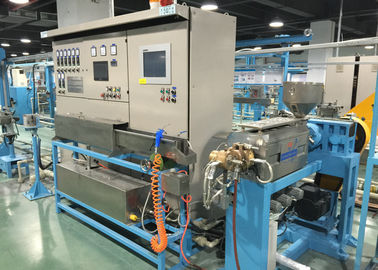

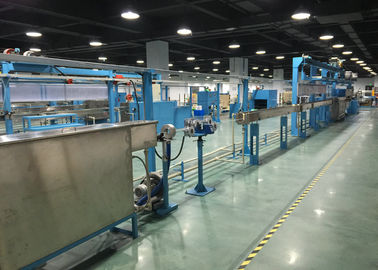

Fuchuan Electrical Wire PU Extrusion Line Tension Pay Off 90mm Screw Dia 0
