Active Type PVC Extrusion Machine Insulating Wire Extruder Line

Active Type PVC Extrusion Machine Insulating Wire Extruder Line
Active Type PVC Extrusion Machine Insulating Wire Extruder Line Active Type PVC Extrusion Machine Insulating Wire Extruder Line Active Type PVC Extrusion Machine Insulating Wire Extruder Line Active Type PVC Extrusion Machine Insulating Wire Extruder Line Active Type PVC Extrusion Machine Insulating Wire Extruder Line Active Type PVC Extrusion Machine Insulating Wire Extruder Line

Large Image :  Active Type PVC Extrusion Machine Insulating Wire Extruder Line

Product Details:
Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: ISO9001:2008
Model Number: FC-90+40-2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: cooperation
Packaging Details: pallet packing
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 22SETS/PER MONTH

Active Type PVC Extrusion Machine Insulating Wire Extruder Line

Description
Color: Sky Blue Pay Off Bobbin: Diameter 500/630/800/1000mm
Material: PVC,PP,PE,SR-PVC Wire: Sheathed Wire/ Insulated Wire
Also Wire: LSZH,LSOH,HFFR,XLPE Pay Off Type: Active Type
Screw Dia: 70 Screw Ratio: 25:1
Capstan Power: 5.5kw
High Light:

wire cable machine

,

plastic extrusion equipment

FC-90 High Speed Extrusion Line





Quick detail :



  Application: for PVC,low-smoking non-halogen and other material of wire insulation and sheathing line.





  Characteristics:

A. Wire and Cable Size :Inlet bunched conductor:φ6.0mm~φ28.0mm

            outlet diameter after sheathing: φ8.0mm~φ30.0mm

B. Wire Speed: 80m/min

C. Machine centre height: 1000mm

D. Line direction:Right to Left or Left to Right-----confirmed by the buyer.

E. Machine color:

F. Machine Body: Sky Blue Control Box: Computer White (RAL7035)

           Safe color:Yellow(RAL1021)



Detail construction of machines:



Name unit Note

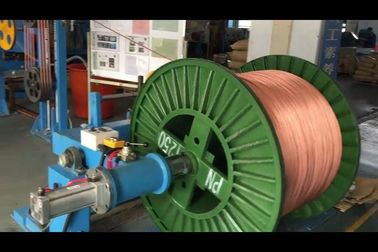

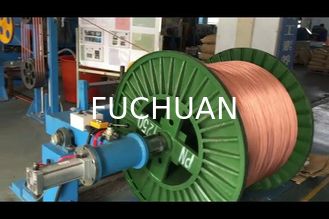

1.∮1600 Big Shaft Magnetic Pay-Off Machine Set Fuchuan 630mm-800mm-1000mm

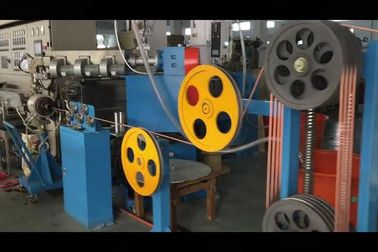

2. 800KG Caterpillar Set Fuchuan made

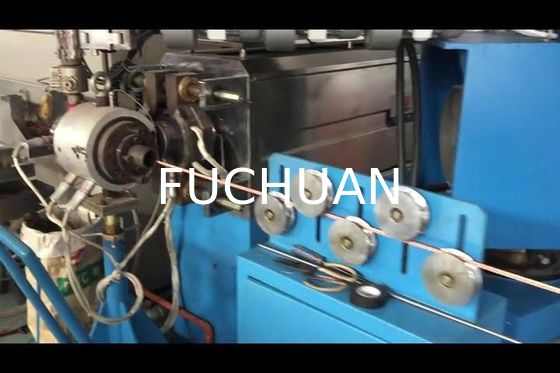

3. Wire straightening device Set Fuchuan made

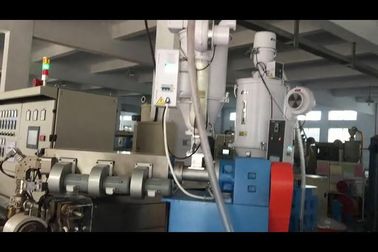

4.∮90mm main Extruder (pressure sensor included) Set Contain PVC. TPEscrew 1 piece-made in Zhejiang
5.low-smoking non halogen screw rod set
6.X9 adjustable pcs ShangHai
7. 200KG Hopper & Dryer set Made in Taiwan
8. Vacuum intake set Made in Taiwan
9. 2.5 meters movable water cooling tank set Fuchuan made for cooling
10.water blower set
11.jet-spraine machine set Cuostomer provide
12. 2050 Diameter measure device Set ShangHai on-line
13. Spark Tester Set ShangHai on-line
14. High Speed Printing machine Set Fuchuan made

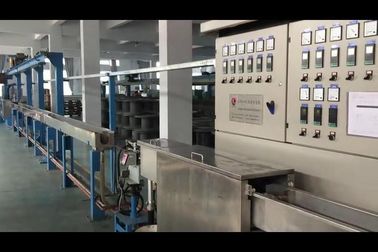

15. 16 meters single layer cooling water tank Set Fuchuan made
16. 1250KG Caterpillar set Fuchuan made
17. 159 Meter Counter Set Fuchuan made
18.1600 Big Shaft Take-up Machine   Fuchuan made

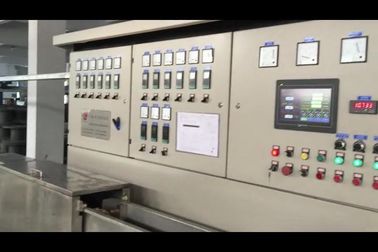

19. Driving control   Fuchuan made



Other information:

Terms of payment:

FOB Shanghai



Payment terms:

30% down payment,70% before shipment



Delivery time:

45days after receive the downpayment



Origin:

China



Minimum order:

1set



Package:

With container
