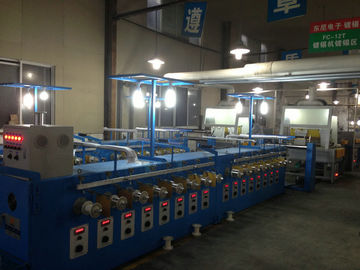

Round Copper Wire Annealing Machine 32Pcs Φ300 Bobbin With Hot Dip Tinned Method

Round Copper Wire Annealing Machine 32Pcs Φ300 Bobbin With Hot Dip Tinned Method
Round Copper Wire Annealing Machine 32Pcs Φ300 Bobbin With Hot Dip Tinned Method Round Copper Wire Annealing Machine 32Pcs Φ300 Bobbin With Hot Dip Tinned Method Round Copper Wire Annealing Machine 32Pcs Φ300 Bobbin With Hot Dip Tinned Method Round Copper Wire Annealing Machine 32Pcs Φ300 Bobbin With Hot Dip Tinned Method

Large Image :  Round Copper Wire Annealing Machine 32Pcs Φ300 Bobbin With Hot Dip Tinned Method

Product Details:
Place of Origin: CHINA
Brand Name: FUCHUAN
Certification: ISO9001 2008
Model Number: FC-T32-1
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD30000
Packaging Details: simply water proof packing
Delivery Time: 8weeks
Payment Terms: T/T, L/C
Supply Ability: 500sets one year

Round Copper Wire Annealing Machine 32Pcs Φ300 Bobbin With Hot Dip Tinned Method

Description
Number Of Inlet Wire: 32pcs Machine Color: Sky Blue Or Apple Green
Fit For Wire: 0.08-0.25mm Or 0.15-0.64 Pay Off Bobbin: Diameter 300mm
Annealing Method: Tube Annealing Max Speed: 300m/min
Pay Off Method: Brush Pay Off
High Light:

wire tinning machine

,

copper wire annealing machine

Round Copper Wire Annealing Machine 32Pcs Φ300 Bobbin With Hot Dip Tinned Method





Characteristics:



Easy to operate, good annealing heat preservation, save electricity, achieve industry-leading level.



Specification:



Equipment models

FC-T32-1

Twisting usage

It is mainly applied to the annealing of ultra-fine round copper wire and alloy wire.

Single wire dia(mm)

φ0.08-φ0.25 or φ0.15-φ0.64mm

Max numbers of inlet wire

32pcs

Linear speed

Max:300m/min

Pay off method

Brush pay off

Pay off bobbin model

φ300bobbin

Annealing furnace length

3.5m or 6m

Annealing method

Tube annealing

Annealing protection method

Water seal protection

Tinned method

Hot dip

Capstan control method

Inverter+ motor control or adopt stepless speed regulation motor

Equipment total power

68kw

Take up control

Take up is voltage regulator control the moment motor

Take up bobbin size

5inch,8inch bobbin or 5inch,8inch,10inch bobbin

Traverse control method

Stepless speed regulation motor+ turbine gear box control toothrow traverse

Installation size

24000L*2200W*2100H

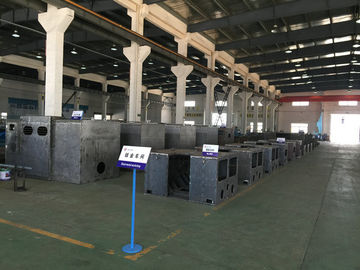

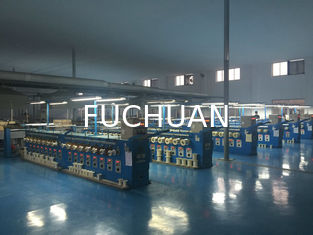

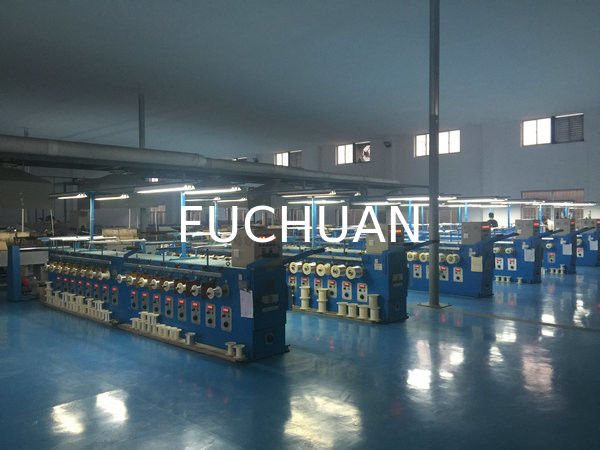

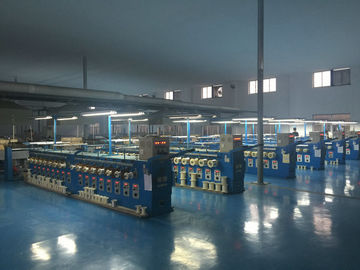

Round Copper Wire Annealing Machine 32Pcs Φ300 Bobbin With Hot Dip Tinned Method 0

Round Copper Wire Annealing Machine 32Pcs Φ300 Bobbin With Hot Dip Tinned Method 1

Round Copper Wire Annealing Machine 32Pcs Φ300 Bobbin With Hot Dip Tinned Method 2
