Product Details:
|
Fit For Wire: | 0.08-0.25mm Or 0.15-0.64 | Number Of Inlet Wire: | 12pcs |
---|---|---|---|
Pay Off Bobbin: | Diameter 300mm | Machine Color: | Sky Blue Or Apple Green |
Annealing Method: | Tube Annealing | Max Speed: | 300m/min |
Pay Off Method: | Brush Pay Off | ||
High Light: | wire tinning machine,copper wire annealing machine |

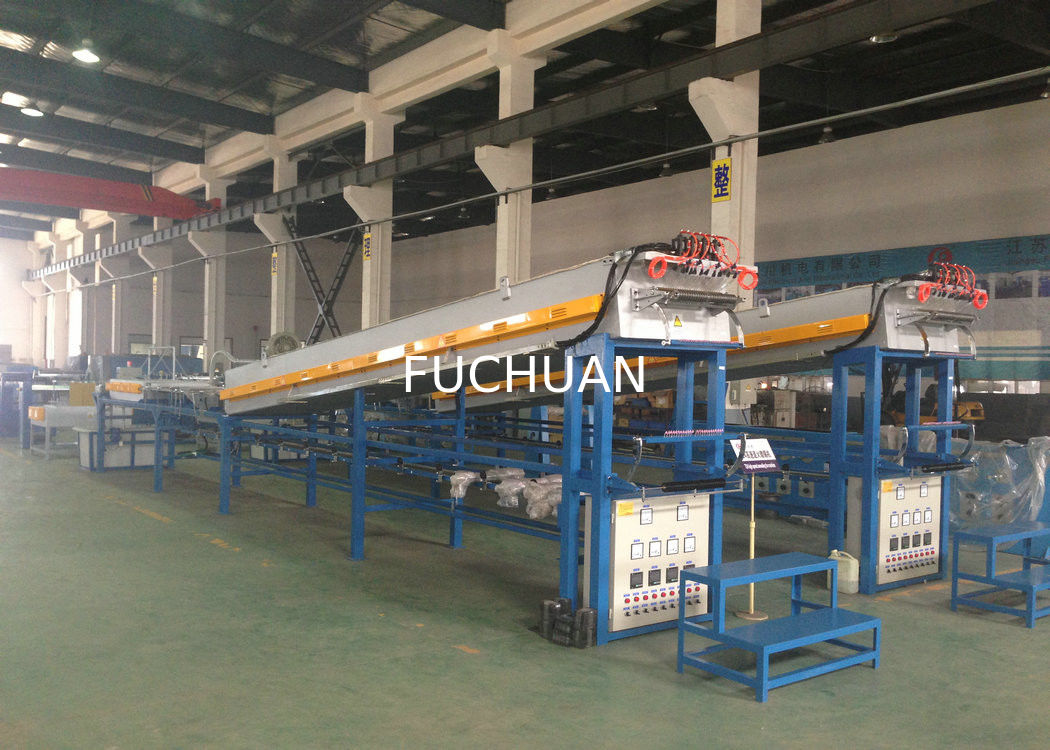

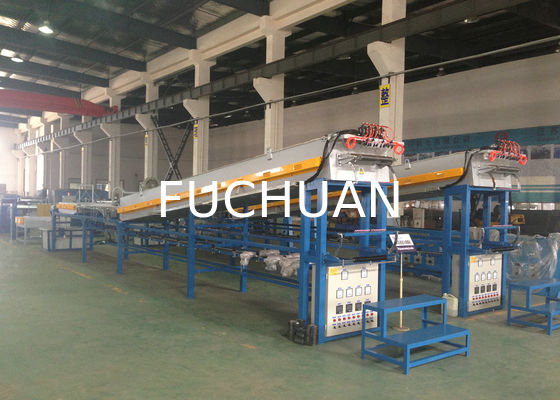

300M / Min Wire Annealing Machine Apple Green 3.5M Furnace Length
FC-T12 normal wire high speed annealing machine
Characteristics:
Easy to operate, good annealing heat preservation, save electricity, achieve industry-leading level.
Specification:
Equipment models |
FC-T12 |
Twisting usage |
It is mainly applied to the annealing of ultra-fine round copper wire and alloy wire. |
Single wire dia(mm) |
φ0.08-φ0.25 or φ0.15-φ0.64mm |
Max numbers of inlet wire |
12pcs |
Linear speed |
Max:300m/min |
Pay off method |
Brush pay off |
Pay off bobbin model |
φ300bobbin |
Annealing furnace length |
3.5m or 6m |
Annealing method |
Tube annealing |
Annealing protection method |
Water seal protection |
Tinned method |
Hot dip |
Capstan control method |
Inverter+ motor control or adopt stepless speed regulation motor |
Equipment total power |
53kw |
Take up control |
Take up is voltage regulator control the moment motor |
Take up bobbin size |
5inch,8inch bobbin or 5inch,8inch,10inch bobbin |
Traverse control method |
Stepless speed regulation motor+ turbine gear box control toothrow traverse |
Installation size |
14500L*1500W*2100H |
