16Pcs Wire Annealing Machine , Round Alloy Wire Tinning Machine

Good quality Wire Twisting Machine for sales
Good quality Wire Twisting Machine for sales
The machine from Fuchuan is with high quality.We have confidence of its machine. And we have cooperation for many years. No 1 machine in China.

—— Mr Robert Klimko

I'm Online Chat Now

16Pcs Wire Annealing Machine , Round Alloy Wire Tinning Machine

China 16Pcs Wire Annealing Machine , Round Alloy Wire Tinning Machine supplier
16Pcs Wire Annealing Machine , Round Alloy Wire Tinning Machine supplier 16Pcs Wire Annealing Machine , Round Alloy Wire Tinning Machine supplier

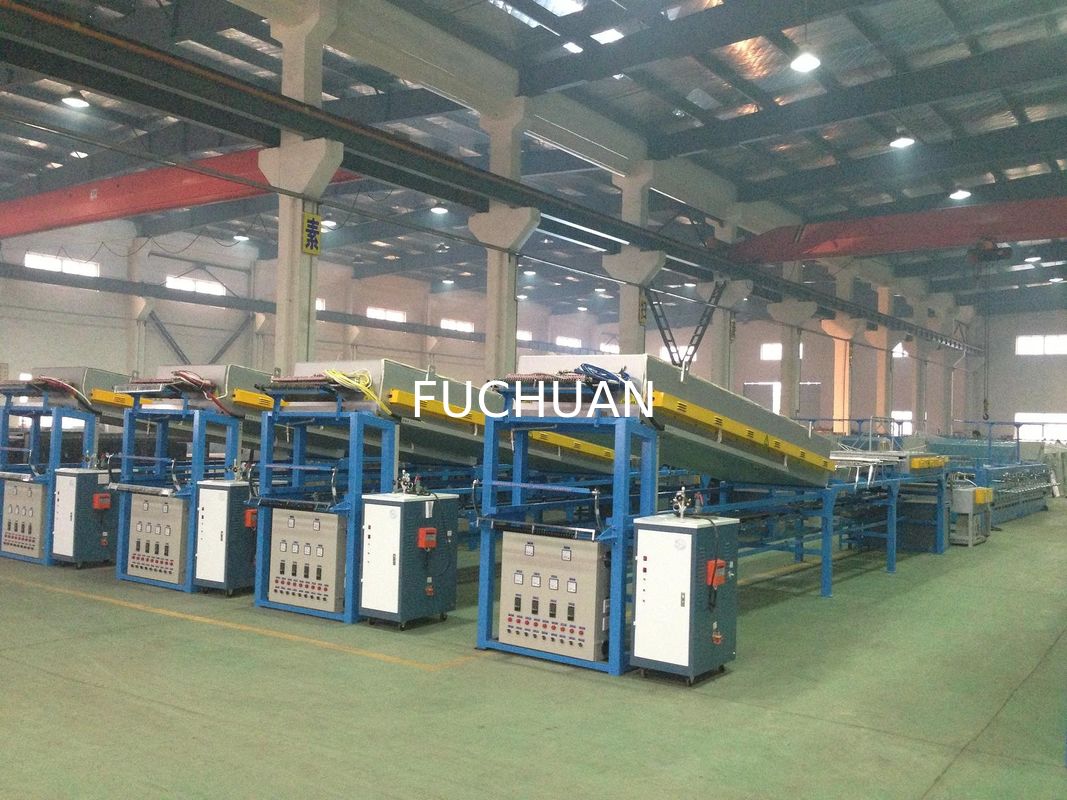

Large Image :  16Pcs Wire Annealing Machine , Round Alloy Wire Tinning Machine

Product Details:

Place of Origin: CHINA
Brand Name: FUCHUAN
Certification: ISO9001 2008
Model Number: FC-T16

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: USD21000
Packaging Details: simply water proof packing
Delivery Time: 8weeks
Payment Terms: T/T, L/C
Supply Ability: 500 sets one year
Contact Now
Detailed Product Description
Number Of Inlet Wire: 16pcs Machine Color: Sky Blue Or Apple Green
Fit For Wire: 0.08-0.25mm Or 0.15-0.64 Pay Off Bobbin: Diameter 300mm
Annealing Method: Tube Annealing Max Speed: 300m/min
Pay Off Method: Brush Pay Off

16Pcs Wire Annealing Machine , Round Alloy Wire Tinning Machine





Quick detail:



Normal wire high speed annealing machine



Characteristics:



Easy to operate, good annealing heat preservation, save electricity, achieve industry-leading level.



Specification:



Equipment models

FC-T16

Twisting usage

It is mainly applied to the annealing of ultra-fine round copper wire and alloy wire.

Single wire dia(mm)

φ0.08-φ0.25 or φ0.15-φ0.64mm

Max numbers of inlet wire

24pcs

Linear speed

Max:300m/min

Pay off method

Brush pay off

Pay off bobbin model

φ300bobbin

Annealing furnace length

3.5m or 6m

Annealing method

Tube annealing

Annealing protection method

Water seal protection

Tinned method

Hot dip

Capstan control method

Inverter+ motor control or adopt stepless speed regulation motor

Equipment total power

53kw

Take up control

Take up is voltage regulator control the moment motor

Take up bobbin size

5inch,8inch bobbin or 5inch,8inch,10inch bobbin

Traverse control method

Stepless speed regulation motor+ turbine gear box control toothrow traverse

Installation size

14500L*1500W*2100H



















































16Pcs Wire Annealing Machine , Round Alloy Wire Tinning Machine

16Pcs Wire Annealing Machine , Round Alloy Wire Tinning Machine
