0.04mm - 0.127mm Wire Annealing Machine Vapour Protection 300M / Min Linear Speed

China 0.04mm - 0.127mm Wire Annealing Machine Vapour Protection 300M / Min Linear Speed supplier
0.04mm - 0.127mm Wire Annealing Machine Vapour Protection 300M / Min Linear Speed supplier 0.04mm - 0.127mm Wire Annealing Machine Vapour Protection 300M / Min Linear Speed supplier 0.04mm - 0.127mm Wire Annealing Machine Vapour Protection 300M / Min Linear Speed supplier 0.04mm - 0.127mm Wire Annealing Machine Vapour Protection 300M / Min Linear Speed supplier

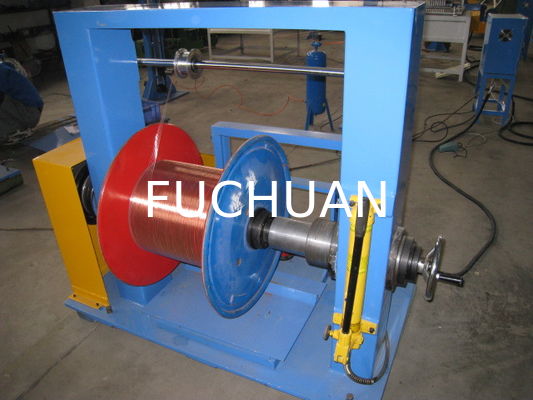

Large Image :  0.04mm - 0.127mm Wire Annealing Machine Vapour Protection 300M / Min Linear Speed

Product Details:

Place of Origin: CHINA
Brand Name: FUCHUAN
Certification: ISO9001 2008
Model Number: FC-TX16

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: USD32000
Packaging Details: simply water proof packing
Delivery Time: 8weeks
Payment Terms: T/T, L/C
Supply Ability: 500sets one year
Contact Now
Detailed Product Description
Annealing Method: Tube Annealing Number Of Inlet Wire: 16pcs
Max Speed: 300m/min Pay Off Method: Brush Pay Off
Machine Color: Sky Blue Or Apple Green Fit For Wire: 0.04-0.127mm
Pay Off Bobbin: Diameter 300mm

0.04mm - 0.127mm Wire Annealing Machine Vapour Protection 300M / Min Linear Speed





Quick detail:



Ultra-fine wire high speed tinning machine



The technology of this machine is brought from Japan and put in production in Jiangsu.



Characteristics:



Easy to operate, good annealing heat insulation, save power, adopt nitrogen or steam protection, have individual meter counter for each take up bobbin, stop automatically achieve the preset meter. It may realize ultra-fine annealing tin and achieve industry-leading level.





Specification:



Equipment models

FC-TX16

Twisting usage

It is mainly applied to the annealing of ultra-fine round copper wire and alloy wire.

Single wire dia(mm)

φ0.04-φ0.127 mm

Max numbers of inlet wire

24pcs

Linear speed

Max:300m/min

Pay off method

Brush pay off

Pay off bobbin model

φ300bobbin

Annealing furnace length

3.0m

Annealing method

Tube annealing

Annealing protection method

Nitrogen protection or vapour protection

Tinned method

Hot dip

Capstan control method

Inverter+ motor control or adopt stepless speed regulation motor

Equipment total power

40kw

Take up control

Take up is voltage regulator control the moment motor

Take up bobbin size

3inch,5inch,8inch bobbin

Traverse control method

Inverter+reducer motor control ball screw traversing,photoelectric induction reversing

Installation size

20000L*1250W*1850H

















































Other Information



FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container
