Product Details:
|
| Number Of Inlet Wire: | 24pcs | Machine Color: | Sky Blue Or Apple Green |
|---|---|---|---|
| Fit For Wire: | 0.08-0.25mm Or 0.15-0.64 | Pay Off Bobbin: | Diameter 300mm |
| Annealing Method: | Tube Annealing | Max Speed: | 300m/min |
| Pay Off Method: | Brush Pay Off | ||
| High Light: | copper wire annealing machine,cable coiling machine |
||

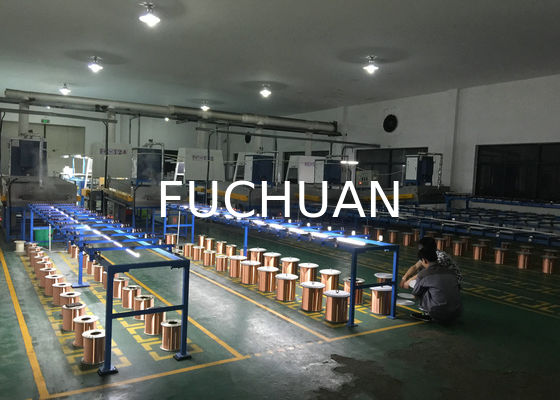

Flexible Alloy Wire Tube Annealing Machine 61Kw Water Seal Protection
Quick detail:
Normal wire high speed annealing machine
Characteristic:
Easy to operate, good annealing heat preservation, save electricity, achieve industry-leading level.
Specification:
| Equipment models | FC-T24 |
| Twisting usage | It is mainly applied to the annealing of ultra-fine round copper wire and alloy wire. |
| Single wire dia(mm) | φ0.08-φ0.25 or φ0.15-φ0.64mm |
| Max numbers of inlet wire | 24pcs |
| Linear speed | Max:300m/min |
| Pay off method | Brush pay off |
| Pay off bobbin model | φ300bobbin |
| Annealing furnace length | 3.5m or 6m |
| Annealing method | Tube annealing |
| Annealing protection method | Water seal protection |
| Tinned method | Hot dip |
| Capstan control method | Inverter+ motor control or adopt stepless speed regulation motor |
| Equipment total power | 61kw |
| Take up control | Take up is voltage regulator control the moment motor |
| Take up bobbin size | 5inch,8inch bobbin or 5inch,8inch,10inch bobbin |
| Traverse control method | Stepless speed regulation motor+ turbine gear box control toothrow traverse |
| Installation size | 145000L*1500W*2100H |
