PVC ,SR - PVC Plastic Extrusion Machinery Insulating Wire Extruder Line

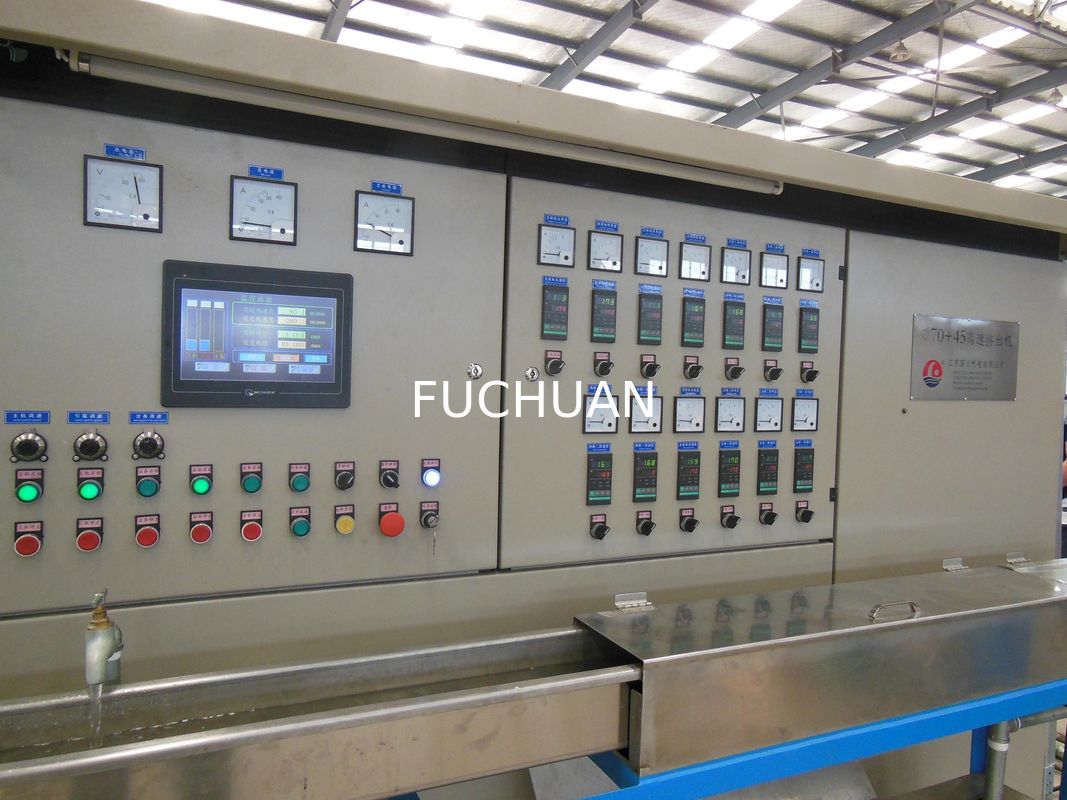

Large Image : PVC ,SR - PVC Plastic Extrusion Machinery Insulating Wire Extruder Line

Product Details:

Place of Origin:	China JiangSu
Brand Name:	Fuchuan
Certification:	ISO9001:2008
Model Number:	FC-70+40

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiable
Packaging Details:	normal packing
Delivery Time:	45days
Payment Terms:	T/T
Supply Ability:	20SET/PER MONTH

Contact Now

PVC ,SR - PVC Plastic Extrusion Machinery Insulating Wire Extruder Line

Description

Color:	Sky Blue	Pay Off Bobbin:	Diameter 500/630/800/1000mm
Material:	PVC,PP,PE,SR-PVC	Wire:	Sheathed Wire/ Insulated Wire
Also Wire:	LSZH,LSOH,HFFR,XLPE	Pay Off Type:	Active Type
Screw Dia:	70
Highlight:	plastic extrusion equipment , single screw extruder

PVC ,SR - PVC Plastic Extrusion Machinery Insulating Wire Extruder Line

Serial insulating production line

Usage:

It is applied to drawing and extrude BV building wire, LAN cable and local cable.

Merits:

Integrated design of annealing and pre-heating, equipped with automatic tension adjusting system, and ensure the wire diameter uniformity of the copper wire elongation and conductor.
The plastic extruder main machine using non-adjustable crosshead, which can ensure concentricity of core wire over 95%.
Device structure: drawing machine, annealing machine, extruder, take-up machine, tester and other equipments.

Usage	BV building wire
Inlet copper wire diameter	Φ2.5-3.0mm
Outlet copper wire diameter	Φ0.8-1.78mm
Extrusion finished wire diameter	Φ2.0-5.0mm
Max speed	300
Max die number	17
Mechanical reduction ratio	20%
Capstan reduction ratio	15%
Drawing machine power	45KW
Annealing type	DC 3phase
Accumulator	Vertical accumulator
Extruder main machine	FC-70
Injection machine	45horizonal injection machine
Extruder main machine power	22KW
printer	Double printer
Cooling tank	Double layers
Capstan	510double wheels
Accumulator	horizonal
Take up	Shaft or coiling machine
