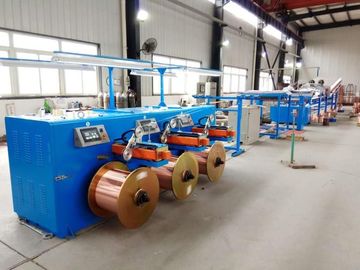

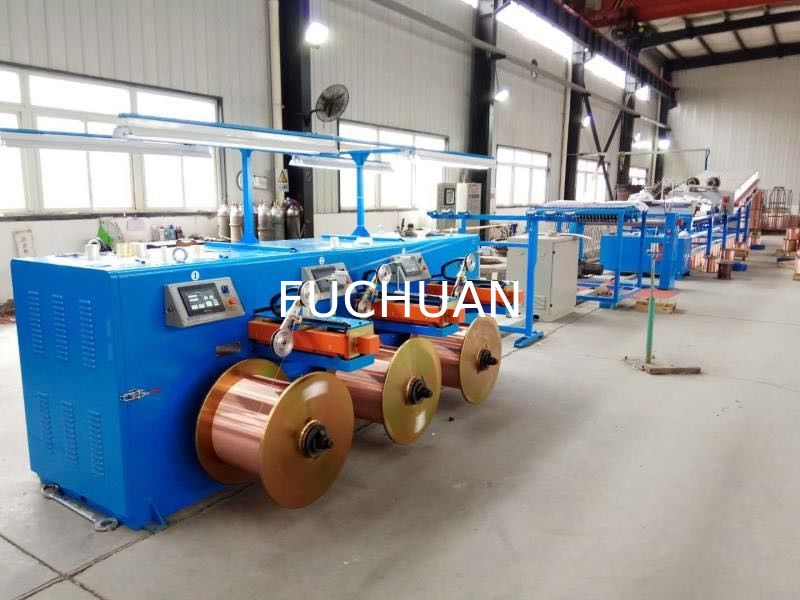

Touch Screen Operation Copper Wire Tinning Machine / Induction Annealing Machine

Touch Screen Operation Copper Wire Tinning Machine / Induction Annealing Machine
Touch Screen Operation Copper Wire Tinning Machine / Induction Annealing Machine

Large Image :  Touch Screen Operation Copper Wire Tinning Machine / Induction Annealing Machine

Product Details:
Place of Origin: CHINA
Brand Name: FUCHUAN
Certification: ISO9001 2008
Model Number: FC-T20/630
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: can quote to customer
Packaging Details: pallet packing
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 20sets/month

Touch Screen Operation Copper Wire Tinning Machine / Induction Annealing Machine

Description
Name: Copper Wire Tinning Machine Machine Color: Sky Blue Or Apple Green
Power: 32KW Inlet Wire Dia: φ0.41~φ0.64mm
Max Nos Of Inlet Wire: 20 Linear Speed: Max:150m/min
Operation: Touch Screen Operation Pay Off Bobbin Type: Dia300mm Bobbin
High Light:

wire tinning machine

,

copper wire annealing machine

,

Copper Wire Tinning Machine

Touch Screen Operation Copper Wire Tinning Machine / Induction Annealing Machine



Copper Wire Tinning Machine Description:



  1. The annealer integral type, total thickness is 500mm, and 100mm much thicker than general supplier’s design. The heat preservation effect is good. This type can save 30% of electricity.
  2. The annealer, oven and tinning furnace is tube type. Easy to replace and maintenance.
  3. The two ends of the furnace tube all ceramic sleeve design, to prevent the wire be scratched.
  4. The water tank is re-cycle design and with water tank and pump.
  5. The two ends of the hauling drum with revolving joints and can connect the re-cycle water for cooling.
  6. The take up two ends is with clapboard design, to prevent broken wire effect the connecting wires.
  7. Below the annealing furnace and upper of the take up has lights design, easy for workers to operate the wire.



Copper Wire Tinning Machine Specification:



Equipment model FC-T20/630 FC-T42/630 FC-T48/630 FC-T60/630
Twisting usage mainly for BVR conductor annealing,especially for high speed bunching,to promote the quality of wire, Mainly used for round copper wire annealing tin to use, and will share more copper wire at the same time in 630 iron plate
.
inlet wire dia φ0.41~φ0.64mm φ0.15~φ0.64mm φ0.15~φ0.32mm
max numbers of inlet wire 20 42 48 60
linear speed max:150m/min max:260m/min
pay off type brush pay off or far end pay off
pay off bobbin type dia300mm bobbin
annealing length 6m 5m
annealing type tube annealing
annealing protection type water seal protection
annealing power 32KW 54KW 94KW 92KW
drying device high pressure worm fan+blower
oven length 1.5m 1.2m
hauling active hauling +passive hauling control active hauling device controller
tinned type / hot dip /
take up control inverter control torque motor take up
take up operation mode touch screen operation
take up bobbin 2~6pcs 630bobbin take up(can according to customer's requirement)
traverse control type servo motor+ball screw precision traverse
installation size(mm) 23000L*3000W*2100H 26000L*3000W*2100H 25000L*2200W*2400H 27000L*2200W*2300H





Other information:



Terms of payment:

FOB Shanghai



Payment terms:



30% down payment,70% before shipment



Delivery time:



45days after receive the downpayment



Minimum order:



1set



Package:



With container
