Cable Extruder Machine For BV Building Wire With Finished Dia 2-5mm Screw Dia 70mm

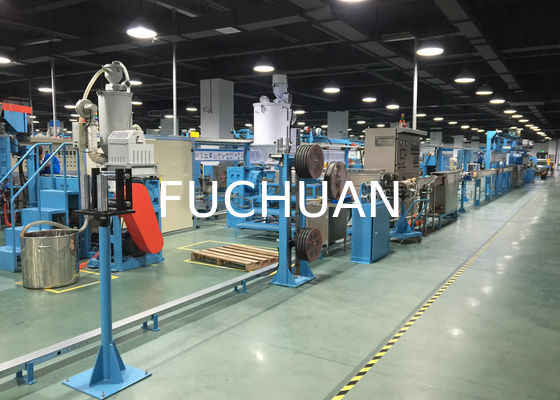

Large Image : Cable Extruder Machine For BV Building Wire With Finished Dia 2-5mm Screw Dia 70mm

Product Details:

Place of Origin:	China JiangSu
Brand Name:	Fuchuan
Certification:	ISO9001:2008
Model Number:	BV building Wire Insulating Production Line

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	discussable
Packaging Details:	normal packing
Delivery Time:	45-60days
Payment Terms:	T/T, L/C
Supply Ability:	500 SETS/YEAR

Contact Now

Cable Extruder Machine For BV Building Wire With Finished Dia 2-5mm Screw Dia 70mm

Description

Material:	BV Building Wire Insulating Production Line	Extruder Main Machine:	70
Inlet Copper Wire Dia:	2.5-3mm	Outlet Copper Wire Dia:	0.8-1.78mm
Extrusion Finished Wire Dia:	2-5mm	Max Speed:	300m/mim
Max Die Number:	17	Injection Machine:	45 Horizontal Injection Machine
Highlight:	Coil Winding Machine , cable making machines

Cable Extrusion Machine For BV Building Wire With Finished Dia 2-5mm Screw Dia 70mm

Quick detail :

It is applied to drawing and extrude BV building wire,LAN cable and local cable.Merits: 1. Integrated design of annealing and pre-heating, equipped with automatic tension adjusting system, and ensure the wire diameter uniformity of the copper wire elongation and conductor. 2. The plastic extruder main machine using non-adjustable crosshead, which can ensure concentricity of core wire over 95%.

Device structure:drawing machine,annealing machine,extruder,take up machine,tester and other equipments.

Specification:

Equipment usage	BV building wire	LAN cable
Inlet copper wire diameter	Φ2.5～3.0mm	Φ2.5～3.0mm
Outlet copper wire diameter	Φ0.8～1.78mm	Φ0.4～0.9mm
Extrusion finished wire diameter	Φ2.0～5.0mm	Φ0.7～1.5mm
max speed	300	1200
max die number	17	17
Mechanical reduction ratio	20%	20%
Capstan reduction ratio	15%	15%
drawing power	45KW	45KW
Annealing type	DC 3phase	DC 3phase
Wire accumulator rack	Vertical accumulator	Vertical accumulator
Extruder main machine	70	65
Injection machine	45Horizontal injection machine	35Horizontal injection machine
Extruder main machine power	22KW	22KW
Printer	Double head printer	Single head printer
Cooling water tank	Double layer	Double layer
Capstan	510Double wheels	410double wheels
Wire accumulator	Horizontal	Horizontal
Take up machine	Shaft or coiling machine	Shaft

Other information:

active pay off or passive pay off

Terms of payment:

FOB Shanghai / Ningbo

Payment terms:

30% down payment,70% before shipment

Delivery time:

45-60 days after receive the downpayment

Origin:

China

Minimum order:

1set

Package:

With container

Cable Extruder Machine For BV Building Wire With Finished Dia 2-5mm Screw Dia 70mm 0

Cable Extruder Machine For BV Building Wire With Finished Dia 2-5mm Screw Dia 70mm 1

Cable Extruder Machine For BV Building Wire With Finished Dia 2-5mm Screw Dia 70mm 2
