Product Details:
|
| Color: | Sky Blue | Take Up Bobbin: | Diameter200 250 300 400mm 800mm |
|---|---|---|---|
| Fit Wire Diameter: | 0.03mm-0.32mm | Wire: | Alloy Wires, Tinned Wires, Silver Jacketed Wires And Enamelled Wires |
| Direction Of Lay: | Free To Left Or Right | Operation Mode: | Touch Screen Operation |
| Main Machine Power: | 11kw | Pay Off: | Magnetic Tension Pay Off |
| High Light: | cable braiding machine,copper wire making machine |
||

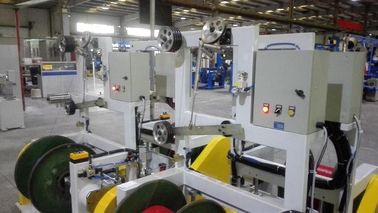

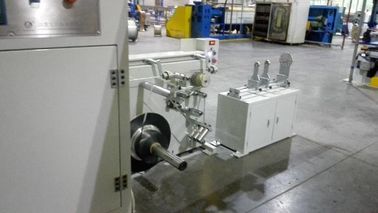

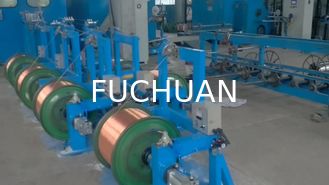

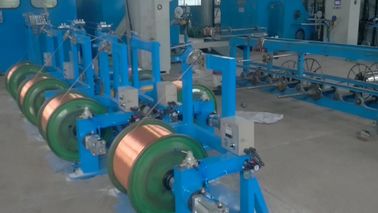

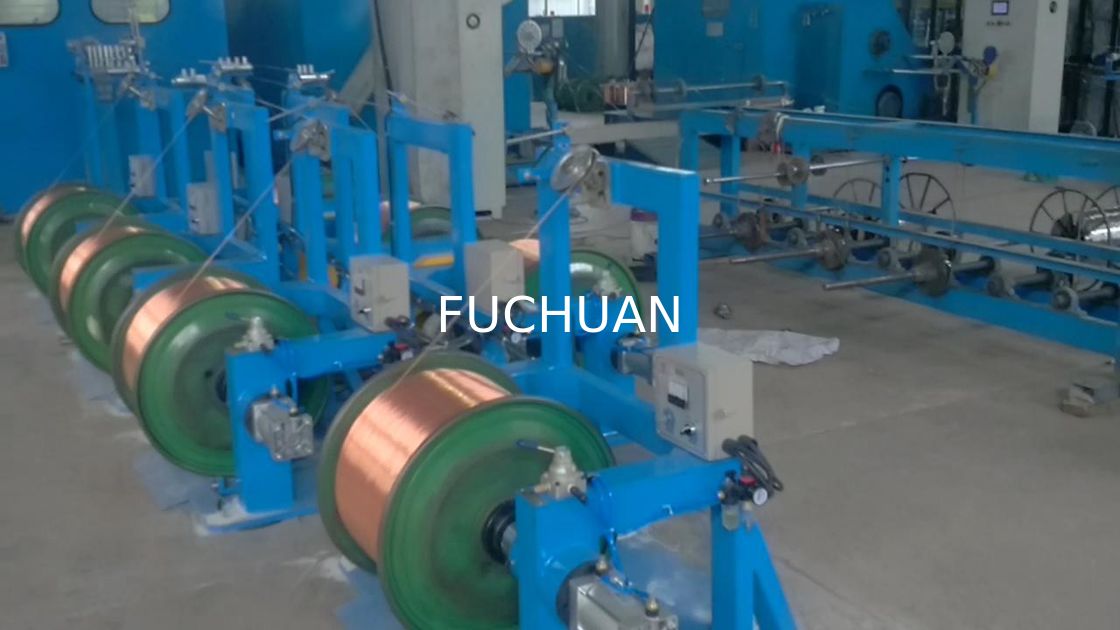

Fuchuan FC-B Ultra fine Wire Twisting Machine with Stranding Section Area 0.016 to 0.32mm2
Quick Details:
Japanese Technology ,Product in China
It has been developed to produce very accurate strands with very small sections for the electronic industry. Simultaneously produce two different strand sections, on equal or different reels.One motor drive two shafts can be more environmental and power. With the main shaft meter counter, the machine twist the same types of line, and the tolerance is only 0.01%.
Patent No.:201320522156.7
Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires).
Characteristics:
A. High production speed, constant tension from empty to full bobbin, especially for high quality stranding wire.
B. Use shaft to calculate meters, less than 0.01% error for a certain wire&cable.

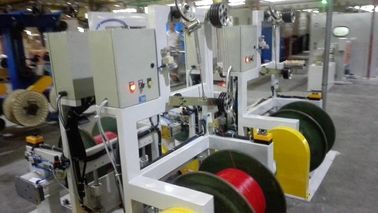

C. With FC-100 active back-twist pay-off machine to achieve bunching instead of twisting.
D. Especially for twisting small cross-section area.
E. Use synchronous belt drive,
F. Change guide wheel to change lay distance, easy to operate.
Specifications:

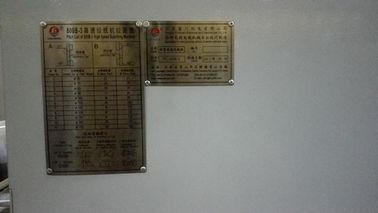

| Equipment Models | FC-200B | FC-250B | FC-300B | FC-400B | |
| Twisting Usage | Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires). | ||||
| Single Wire Dia(mm) | 0.016～0.08 | 0.03～0.18 | 0.05～0.28 | 0.05～0.32 | |
| Stranding Section Area(mm²) | 0.0014～0.035 | 0.0049～0.3 | 0.0137～0.45 | 0.0137～1.0 | |
| Pitch(mm) | 0.8～4.0(14 classes) | 0.8~10.8(24classes) | 1.6～21.6(24classes) | 3.1～33.3(24classes) | |
| Direction of Lay | Free to right or left | ||||
|

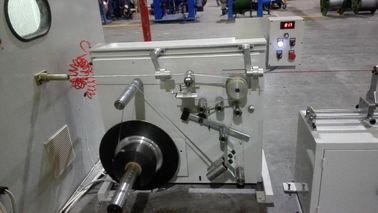

Take-up Bobbin(mm) Outer dia*bore*outer width |
200*31*135 | 300*30*185 |
250*30*185 300*30*185 |
300*30*185 400*56*300 |
|
| Max Rotating Speed(rpm) | 5000rpm(10000tpm) | 4000rpm(8000tpm) | 3500rpm(7000tpm) | 3500rpm(7000tpm) | |
| Main Motor Power | 2.2KW | 3.7KW | 3.7KW | 3.7KW | |
| Inverter Power | 2.2KW | 3.7KW | 3.7KW | 3.7KW | |

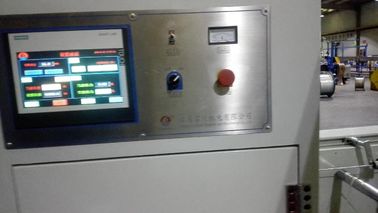

| Tension Control | Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin | ||||
| Magnetic Powder Clutch | 0.05kgf | 0.3kgf | 0.6kgf | 0.6kgf | |
| Protection |
automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived |

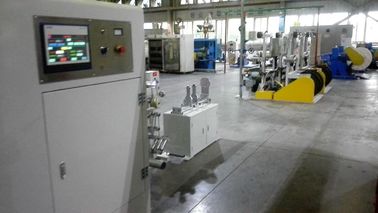

||||
| Brake Mode | Electromagnetic brake | ||||
| Traversing Method | Rolling wire with ring drive units, winding pitch and breadth are adjustable | ||||
| Operation Mode | Touch Screen Operation | ||||
| Dimension L*W*H | 2000*960*1100 | 2300*1100*1330 | 2300*1100*1330 | 2850*1150*1350 | |
