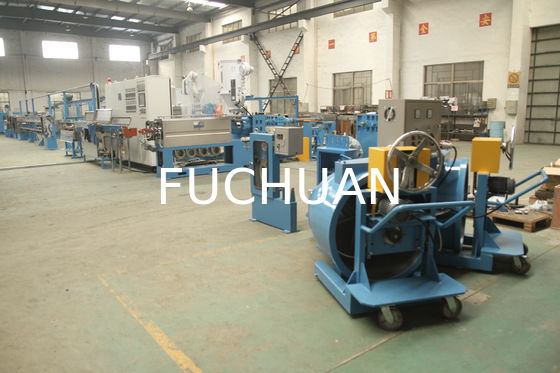

PVC PE Extrusion Machinery

PVC PE Extrusion Machinery
PVC PE Extrusion Machinery PVC PE Extrusion Machinery PVC PE Extrusion Machinery

Large Image :  PVC PE Extrusion Machinery

Product Details:
Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: ISO9001:2008
Model Number: FC-80+45-1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: discuss
Packaging Details: packing as customer reqirement or standard packing
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 25SET/PER MONTH

PVC PE Extrusion Machinery

Power For Main Machine: 37kw Color: Sky Blue/green
Printer: Double Head Or Single Head Pay Off Bobbin: Diameter 500/630/800/1000mm
Screw Ratio: 25:1 Material: FEP,FPA,ETFE Fluorine Plastic
Screw Dia: 80mm Equipment Type: 80+45
Accumulator: Horizonal Accumulator Extrusion Output: 200
Wire Diameter: 5.0-20mm Extrusion: High Temperature
Fit For Plastic: PVC PE Control Type: Computer Control
Take Up: Shaft Or Coiling Machine Injection Machine: Diameter 40mm
Capstan Power: 7.5kw
High Light:

wire making machine


copper wire machine

φ70+φ35 high speed extrusion machine(Touch screen operation)



      Quick detail:


It is mainly for PVC plastic material extrusion for electric wire and cable wire.




A. Operation direction:right hand machine

B. Main machine centre height 1000mm;

C. Inlet wire:φ0.6-φ3.2mm;

D. Finished wire:φ1.5-φ5.0mm;

E. Production linear speed:350m/min

F. Main machine color:main machine RAL5012 sky blue;electric cabinet: computer white;safe       color:yellow.


Machine composition


No Name Numbers Unit Note
1. 630 active pay off 1 Pcs Fuchuan made
2. 200 swing tension rack 1 Pcs Fuchuan made
3. Wire straightening 1 Pcs Fuchuan made
4 Filtrating powder machine 1 Pcs Fuchuan made
5 U7 head 1 pcs ShangHai Xu Dong
6 ¢70 main machine 1 pcs Fuchuan Made(contain ZhouShan PVC screw one set)
7 ¢35movable injection machine 1 pcs Fuchuan made
8 1.8 meters movable cooling water tank 1 set Fuchuan made
9 Diameter measure device 1 set ShangHai On-line
10 High speed printer 1 pcs Fuchuan made
11 8meters single layer cooling water tank 1 set Fuchuan made
12 510hauling machine 1 pcs Fuchuan made
13 12meters horizontal accumulator rack 1 set Fuchuan made
14 159 meter counter 1 Pcs Fuchuan made
15 Spark tester 1 Pcs Tai Wan He Tai
16 1246computer automatic coiling machine 1 pcs
17 Dry hopper loader 1 set Tai Wan Shin Yi
18 Suction machine 1 set Tai Wan Shin YI
19 Electric-control parts 1 set


Other information:


Terms of payment: FOB Shanghai


Payment type:


30% T/T downpayment,70% before shipment




after receive the down payment 45days





Minimum order:




With container
