Screw Dia90 Mm Cable Extrusion Machine 630pay Off And 120 Tension Rack

China Screw Dia90 Mm Cable Extrusion Machine 630pay Off And 120 Tension Rack supplier
Screw Dia90 Mm Cable Extrusion Machine 630pay Off And 120 Tension Rack supplier Screw Dia90 Mm Cable Extrusion Machine 630pay Off And 120 Tension Rack supplier Screw Dia90 Mm Cable Extrusion Machine 630pay Off And 120 Tension Rack supplier Screw Dia90 Mm Cable Extrusion Machine 630pay Off And 120 Tension Rack supplier

Large Image :  Screw Dia90 Mm Cable Extrusion Machine 630pay Off And 120 Tension Rack

Product Details:

Place of Origin: China
Brand Name: FUCHUAN
Certification: ISO9001 2008
Model Number: FC-90+45-6

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: discussion
Packaging Details: wooden packing
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 30sets/month
Contact Now
Detailed Product Description
Machine Color: Sky Blue Or Apple Green Style: Automatic
Fit For Bobbin: Diameter630/800 Lifting Type: Electric Hydraulic Lifting
Power: 5.5KW Speed Reduction Motor Max Speed: 400m/min
Screw Dia: 90mm Screw Ratio: 25:1
Control Type: Computer Control Or Knob Control

FC-90+45 High Speed Extrusion Line





Quick detail :



Application: for PE,PVC,low-smoking non-halogen and other material of wire insulation and sheathing line



Characteristics:

1.  Wire and Cable Size :Inlet bunched conductor:φ6.0mm~φ28.0mm

           outlet diameter after sheathing: φ8.0mm~φ30.0mm

2.  Wire Speed: 80m/min

3.  Machine centre height: 1000mm

4.  Line direction:Right to Left or Left to Right-----confirmed by the buyer.

5.  Machine color:

6.  Machine Body: Sky Blue Control Box: Computer White (RAL7035)

            Safe color:Yellow(RAL1021)

7.  Detail construction of machines:





Components



Name unit Note
1.∮1600 Big Shaft Magnetic Pay-Off Machine Set Fuchuan 630mm-800mm-1000mm
2. 800KG Caterpillar Set Fuchuan made
3. Wire straightening device Set Fuchuan made
4.∮90mm main Extruder (pressure sensor included) Set Contain PVC. TPEscrew 1 piece-made in Zhejiang
5.low-smoking non halogen screw rod set
6.X9 adjustable pcs ShangHai
7. 200KG Hopper & Dryer set Made in Taiwan
8. Vacuum intake set Made in Taiwan

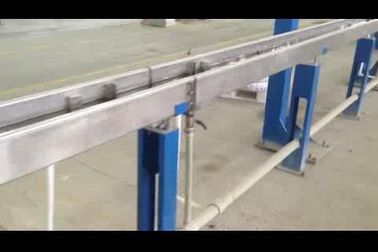

9. 2.5 meters movable water cooling tank set Fuchuan made for cooling
10.water blower set
11.jet-spraine machine set Cuostomer provide
12. 2050 Diameter measure device Set ShangHai on-line
13. Spark Tester Set ShangHai on-line
14. High Speed Printing machine Set Fuchuan made
15. 16 meters single layer cooling water tank Set Fuchuan made
16. 1250KG Caterpillar set Fuchuan made
17. 159 Meter Counter Set Fuchuan made
18.1600 Big Shaft Take-up Machine   Fuchuan made

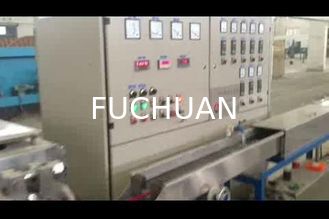

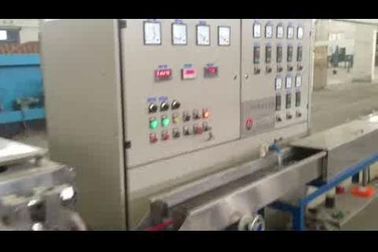

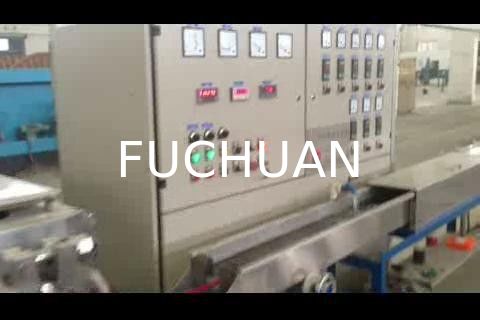

19. Driving control   Fuchuan made



Other information:

On terms of ; FOB Shanghai



Delivery date; 30% T/T,70% before shipment



Country of origin:  China



Minimum order : 1set



Package: within container
