20Kgf Bare Copper Wire Bunching Machine Diameter 1250mm Bobbin

20Kgf Bare Copper Wire Bunching Machine Diameter 1250mm Bobbin
20Kgf Bare Copper Wire Bunching Machine Diameter 1250mm Bobbin 20Kgf Bare Copper Wire Bunching Machine Diameter 1250mm Bobbin 20Kgf Bare Copper Wire Bunching Machine Diameter 1250mm Bobbin

Large Image :  20Kgf Bare Copper Wire Bunching Machine Diameter 1250mm Bobbin

Product Details:
Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: CE
Model Number: FC-1250B-1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD66330
Packaging Details: normal packing
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 20SET/PER MONTH

20Kgf Bare Copper Wire Bunching Machine Diameter 1250mm Bobbin

Description
Fit For Bobbin: Diameter1250mm Color: Sky Blue
Power: 22kw Magnetic Powder Clutch: 20kgf
Operation Mode: Touch Screen Operation Fit For Wire: Core Wire/copper Wire
High Light:

cable manufacturing equipment

,

single cable machine

20Kgf Bare Copper Wire Bunching Machine Diameter 1250mm Bobbin









Model FC-1250B-1 large wire high speed bunching machine and double twist bunching machine



The technology of this machine is brought from Japan and put in production in JiangSu



Merits: It is the latest developed machine. This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),low power, small floor place ,low noise and other merits.



Equipment models

FC-1250B-1

Twisting usage

It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.

Single wire dia(mm)

φ0.5-φ2.14

Stranding section area (mm²)

10.0-50.0

Core wire single wire dia

φ3.0-φ8.0

Core wire stranding outer dia

φ6.0-φ16.0

Pitch(mm)

50-250(12zones)

Direction of lay

Optional for right or left

Take up bobbin Outer dia*bore*outer width

φ1250*φ80*950

Max rotating speed

800(1600twist)

Main motor power

22KW

Inverter power

22KW

Tension control method

Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin

Magnetic powder clutch

20kgf

Protection

Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.

Brake mode

Electromagnetic brake

Traversing method

Rolling ring drive units, winding pitch and breadth are adjustable

Operation mode

Touch screen operation

Dimension(mm)

4500L*2600W*2500H

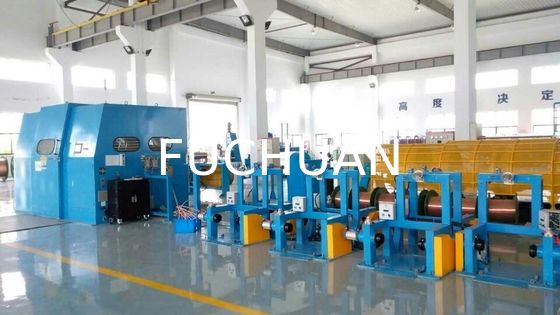

20Kgf Bare Copper Wire Bunching Machine Diameter 1250mm Bobbin 0



20Kgf Bare Copper Wire Bunching Machine Diameter 1250mm Bobbin 1
