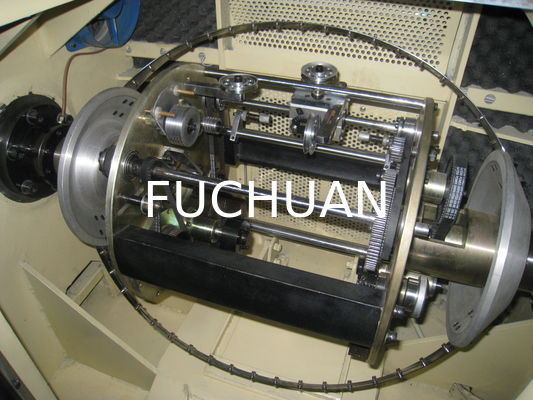

250mm Bobbin Wire Stranding Machine 0.3Kgf Single Twist Z Direction

250mm Bobbin Wire Stranding Machine 0.3Kgf Single Twist Z Direction
250mm Bobbin Wire Stranding Machine 0.3Kgf Single Twist Z Direction 250mm Bobbin Wire Stranding Machine 0.3Kgf Single Twist Z Direction 250mm Bobbin Wire Stranding Machine 0.3Kgf Single Twist Z Direction

Large Image :  250mm Bobbin Wire Stranding Machine 0.3Kgf Single Twist Z Direction

Product Details:
Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: CE
Model Number: FC-250B
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD11330
Packaging Details: normal packing
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 20SET/PER MONTH

250mm Bobbin Wire Stranding Machine 0.3Kgf Single Twist Z Direction

Description
Color: Sky Blue Fit For Bobbin: Diameter 250mm
Applied For Wire: Copper Wire/silver Jacketed Wire/ Enamelled Wire Applied For Bobbin: Diameter 250mm Bobbin
Twist Type: Double Twist/single Twist Direction: S Or Z
High Light:

wire processing machine

,

wire processing equipment

250mm Bobbin Wire Stranding Machine 0.3Kgf Single Twist Z Direction







Series for Model B ultra-fine high speed bunching machine



The technology of this machine is brought from Japan and put in production in JiangSu



Merits: With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, it can realize bunching instead of twisting to match up to FC-100 active back-twist pay off machine. And meet requirements of customer to twist wire of small section area. The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.



Equipment models

FC-250B

Twisting usage

It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.

Single wire dia(mm)

φ0.03-0.18

Stranding section area (mm²)

0.0049-0.3

Pitch(mm)

0.8-10.8(24zones)

Direction of lay

Optional for right or left

Outer dia*bore*outer width

φ300*φ30*185

Max rotating speed

4000(8000twist)

Main motor power

3.7KW

Inverter power

3.7KW

Tension control method

Touch screen+PLC+magnetic powder clutch,it may ensure the constant tension from empty bobbin to full bobbin

Magnetic powder clutch

0.3kgf

Protection

Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived.

Brake mode

Electromagnetic brake

Traversing method

Rolling ring drive units,winding pitch and breadth are adjustable

Operation mode

Touch screen operation

Dimension(mm)

2300L*1100W*1330H
