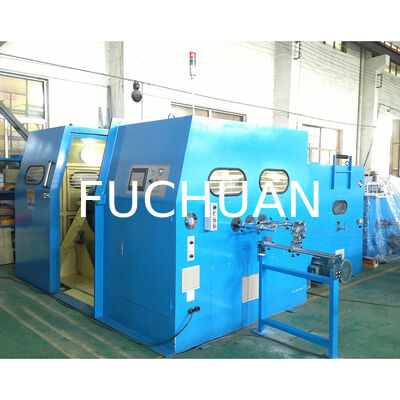

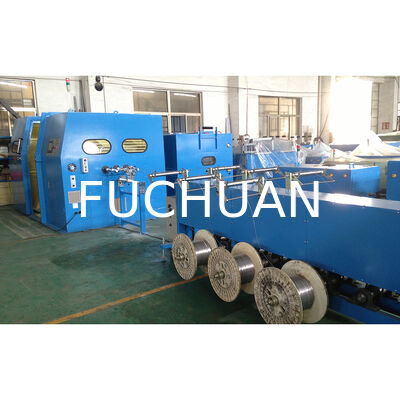

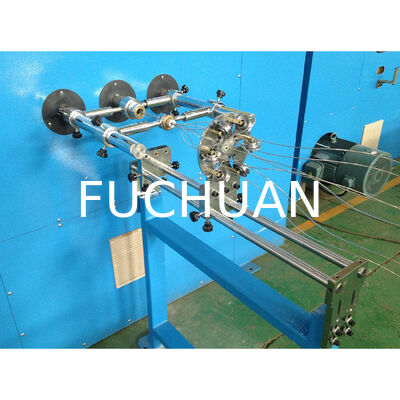

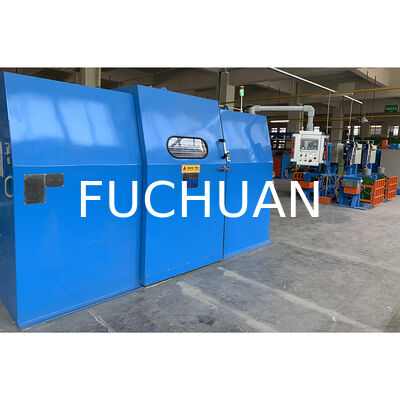

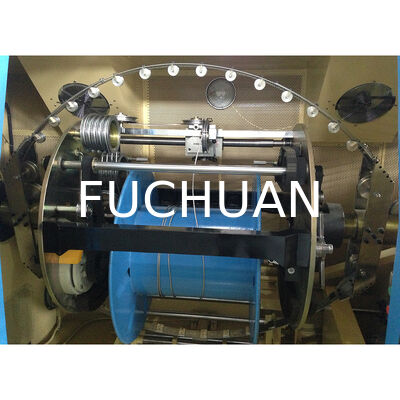

1000mm Double Twist Copper Wire Bunching Machine Stranding Cabling Equipment Fuchuan

1000mm Double Twist Copper Wire Bunching Machine Stranding Cabling Equipment Fuchuan
1000mm Double Twist Copper Wire Bunching Machine Stranding Cabling Equipment Fuchuan
1000mm Double Twist Copper Wire Bunching Machine Stranding Cabling Equipment Fuchuan 1000mm Double Twist Copper Wire Bunching Machine Stranding Cabling Equipment Fuchuan 1000mm Double Twist Copper Wire Bunching Machine Stranding Cabling Equipment Fuchuan 1000mm Double Twist Copper Wire Bunching Machine Stranding Cabling Equipment Fuchuan 1000mm Double Twist Copper Wire Bunching Machine Stranding Cabling Equipment Fuchuan 1000mm Double Twist Copper Wire Bunching Machine Stranding Cabling Equipment Fuchuan 1000mm Double Twist Copper Wire Bunching Machine Stranding Cabling Equipment Fuchuan

Large Image :  1000mm Double Twist Copper Wire Bunching Machine Stranding Cabling Equipment Fuchuan

Product Details:
Place of Origin: China Kunshan
Brand Name: FUCHUAN
Certification: CE
Model Number: FC-1000B
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: simply packed
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 200SETS/MONTH
Contact Now

1000mm Double Twist Copper Wire Bunching Machine Stranding Cabling Equipment Fuchuan

Description
Take-up Spool: 1000mm Diameter Wire Diameter: 0.85-2.14mm
Cross Section: 4.0-25.0mm2 Max Speed: 1000rpm
Main Motor: 18.5KW Pitch Range: 35-149mm
Tension Control: PLC + Magnetic Powder Clutch
Highlight:

Bunching Machine

,

Wire Buncher

,

Twisting Equipment

Basic Info.

Model NO.
FC-1000B
Condition
New
Certification
FDA, RoHS, ISO, CE
Warranty
24 Months
Automatic Grade
Automatic
Mould Life
<300,000 Shots
Type
High-speed Stranding Machine
Model No.
FC-1000b
Bow
Carbon Fiber/Stainless Steel
Color
Customized
Etd
30days
Max Speed
1000rpm
Power
18.5kw
Transport Package
Wooden Box
Specification
5000kg
Trademark
FCJD
Origin
Kunshan, China
HS Code
8479400000
Production Capacity
200 Sets Per Month

Product Description

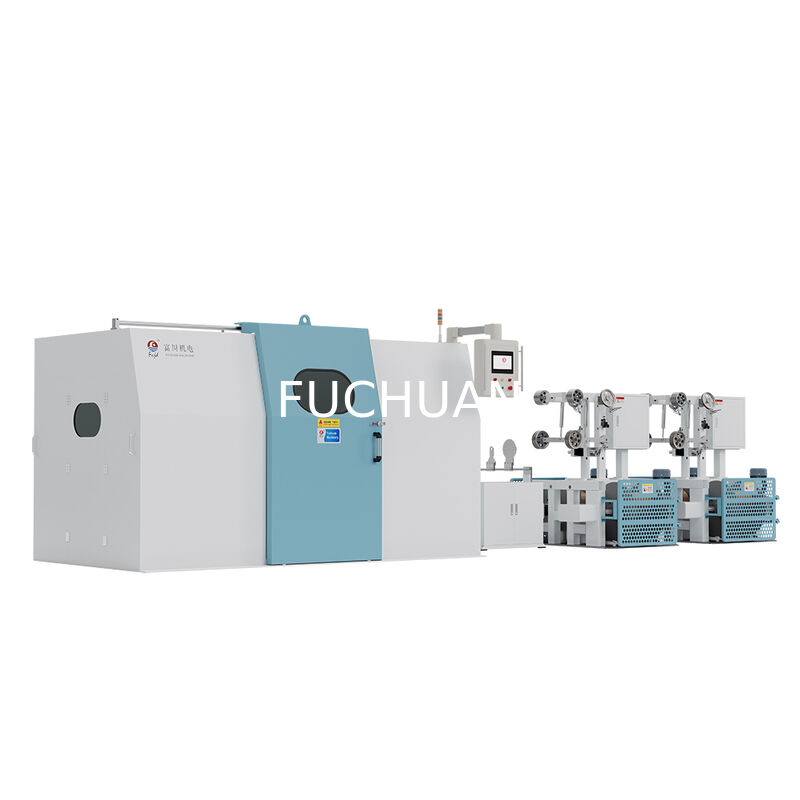

Series of Model B Large Wire High Speed Bunching Machine
Our high-performance bunching machine is engineered for durability, efficiency in cable & wire producing projects.
Designed with advanced technology and robust materials, this bunching machine ensures high speed, smooth
operation. It is suitable for stranding conductors such as BVR and RVV bare copper wires, tinned wires, and
aluminum alloy wires with seven or more strands, as well as for cabling of power line cores.
Specification
Technical Specifications
(Custom configurations available upon request.)
Model
FC-1000B
FC-1250B
FC-1600B
Wire dia. (mm)
Φ0.85-2.14
Φ1.0-2.52
Φ1.0-2.52
Cross section (mm2 )
4.0-25.0
6.0-35.0
6.0-35.0
Core wire dia. (mm)
Φ2.0-4.0
Φ3.0-6.0
Φ3.0-6.0
Overall Diameter of Stranded Core
Φ4.0-10.0
Φ6.0-12.0
Φ6.0-12.0
Pitch (mm)
35-149
41-155
47-275
Take-up Spool size (mm)
Φ1000*Φ80*750
Φ1250*Φ80*950
Φ1600*Φ80*1180
Max speed (rpm)
1000
800
600
Stranding direction
S/Z
S/Z
S/Z
Main motor power
18.5KW
22KW
22KW
Tension control
PLC+Magnetic powder clutch
Protection
Automatic brake on wire break by electromagnetic brake
Features
1. Ethernet port is reserved for IoT access, which can display the speed, stranding details, line speed, equipment maintenance, etc.

2. PLC control+Magnetic powder clutch, perfectly ensure the constant tension from empty to full spool.

3. With bearing type polished rod traversing, traversing width and lay length is adjustable.

2025 High Speed Cable Drum Twister Buncher 1000 Bunching Machine Twister Machine Twister
2025 High Speed Cable Drum Twister Buncher 1000 Bunching Machine Twister Machine Twister
2025 High Speed Cable Drum Twister Buncher 1000 Bunching Machine Twister Machine Twister

Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can
provide tailored designs to meet specific project requirements.
2025 High Speed Cable Drum Twister Buncher 1000 Bunching Machine Twister Machine Twister
After Sales Service
Standard Warranty: 24 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Company Profile
2025 High Speed Cable Drum Twister Buncher 1000 Bunching Machine Twister Machine Twister
Kunshan Fuchuan Electrical & Mechanical Co., Ltd.
Kunshan Fuchuan Electrical & Mechanical Co., Ltd. is a leading Chinese manufacturer of cable & wire machinery with over 20 years
of expertise. Certified with ISO 9001, CE, GOST, we export to 100+ countries, offering reliable machinery backed by R&D innovation
and strict quality control.
2025 High Speed Cable Drum Twister Buncher 1000 Bunching Machine Twister Machine Twister
2025 High Speed Cable Drum Twister Buncher 1000 Bunching Machine Twister Machine Twister
Why Choose Us?
Other Products
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Stranding machine
Back-twist bunching machine
Signle twist bunching machine
Torsion-free cable-laying machine
Pay-off machine
Extruding machine
Rewinding machine
Certifications
2025 High Speed Cable Drum Twister Buncher 1000 Bunching Machine Twister Machine Twister
Fuchuan has obtained dozens of certifications and certificates, and hundreds of patents.
With ISO9001
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 60–90 days.

Q: Do you provide after-sales service overseas?
A: Yes, we provide online service and if the customer needed, we can send our engineer to customer's site.

Q: Can I request a customized machine?
A: Absolutely! We accept OEM and ODM.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
