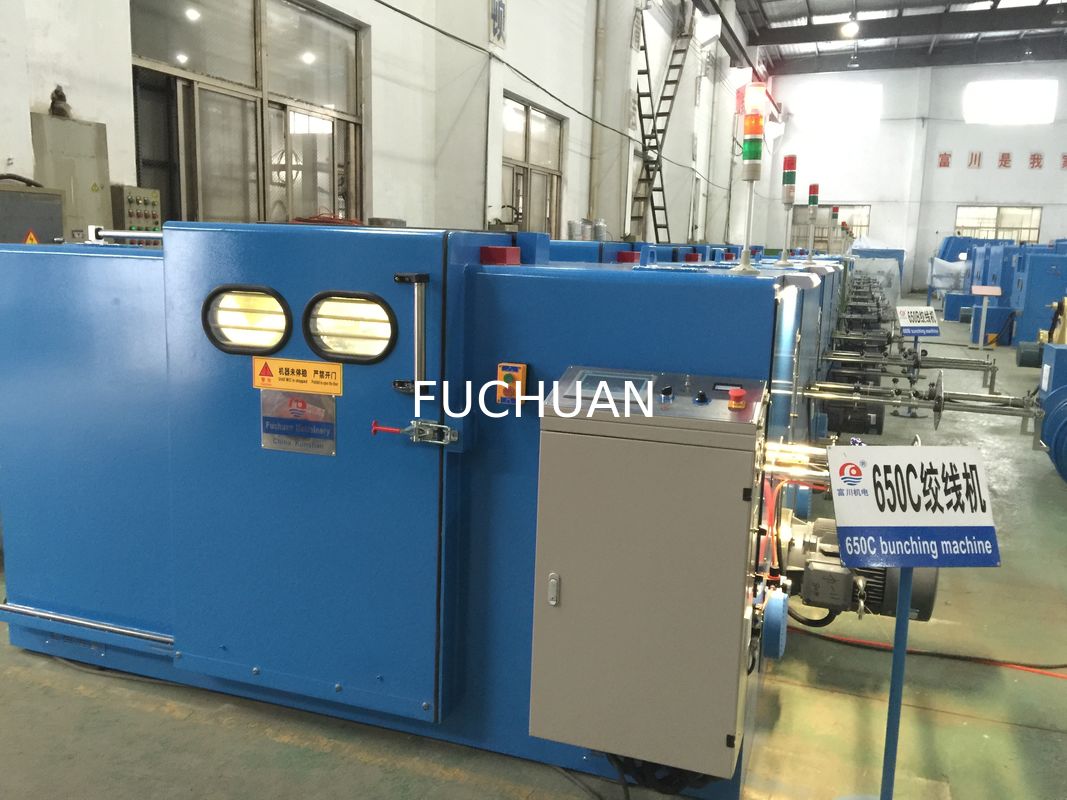

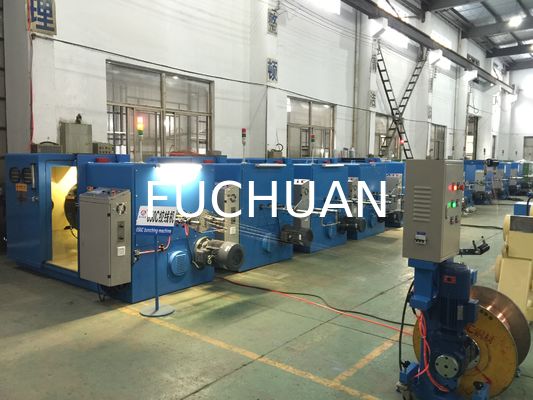

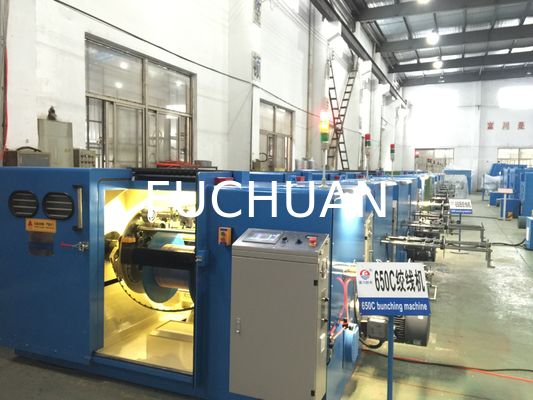

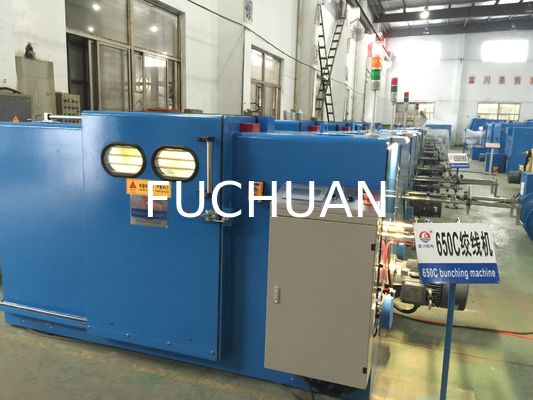

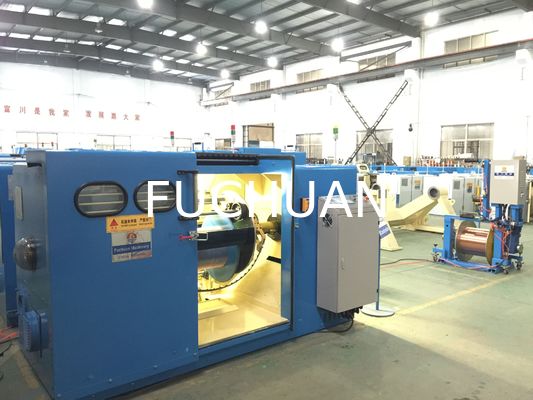

Magnetic Powder Clutch Copper Wire Bunching Machine Equipment 2.5Kgf Bow Cabling

Magnetic Powder Clutch Copper Wire Bunching Machine Equipment 2.5Kgf Bow Cabling
Magnetic Powder Clutch Copper Wire Bunching Machine Equipment 2.5Kgf Bow Cabling Magnetic Powder Clutch Copper Wire Bunching Machine Equipment 2.5Kgf Bow Cabling Magnetic Powder Clutch Copper Wire Bunching Machine Equipment 2.5Kgf Bow Cabling Magnetic Powder Clutch Copper Wire Bunching Machine Equipment 2.5Kgf Bow Cabling

Large Image :  Magnetic Powder Clutch Copper Wire Bunching Machine Equipment 2.5Kgf Bow Cabling

Product Details:
Place of Origin: China
Brand Name: Fuchuan
Certification: CE
Model Number: FC-650C-3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: simply packed
Delivery Time: 45days
Supply Ability: 50SETS/MONTH
Contact Now

Magnetic Powder Clutch Copper Wire Bunching Machine Equipment 2.5Kgf Bow Cabling

Description
Color: Sky Blue Wire And Cable Machinery Fit For Bobbin: Diameter 630mm
Fit Copper Wire: 0.12mm-0.52mm Wire: Core Wire,bare Copper Wire,tinned Wires,silver Jacketed Wires
Control Type: Computer Control Magnetic Powder Clutch: 2.5kgf
Highlight:

Magnetic powder clutch copper wire bunching machine

,

Copper wire bow cabling machine 2.5Kgf

,

Copper wire bunching equipment with warranty

FUCHUAN Copper Wire Bunching Machine 2.5Kgf Magnetic Powder Clutch Bow Cabling Machine / Equipment​



Quick Details:



Series for Model C normal wire high speed bunching machine and double twist bunching machine

Apply for the bunching of aerospace, medical instrument, cellphone,notebook PC and ultra fine conductor(above seven pcs of alloy wires, tinned wires, silver jacketed wires and enamelled wires).



Characteristics:



Japan Technology, product in China

 With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.



Specifications:



Equipment models FC-650C-3
Twisting usage It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm) φ0.12-φ0.52mm
Stranding section area (mm²) 0.3-4.0
Core wire single wire dia φ0.5-φ2.0
Core wire stranding outer dia φ1.0-φ4.0
Pitch(mm) 11.6-100(34zones)
Direction of lay Optional for right or left
Outer dia*bore*outer width

φ630*φ56*475

φ630*φ127*475
Max rotating speed 2400(4800twist)
Main motor power 11KW
Inverter power 11KW
Tension control method Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch 5kgf
Protection Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode Electromagnetic brake
Traversing method Rolling ring drive units, winding pitch and breadth are adjustable





Other Information

FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container

Magnetic Powder Clutch Copper Wire Bunching Machine Equipment 2.5Kgf Bow CablingMagnetic Powder Clutch Copper Wire Bunching Machine Equipment 2.5Kgf Bow Cabling
Magnetic Powder Clutch Copper Wire Bunching Machine Equipment 2.5Kgf Bow Cabling
