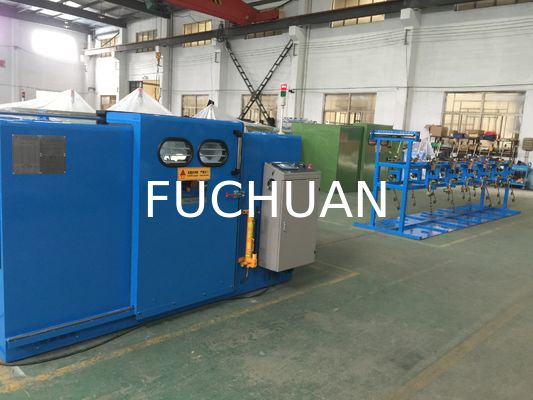

Bare Copper Wire Bunching Machine / Equipment 6000 Twist 6.3mm - 52.3mm Pitch

Bare Copper Wire Bunching Machine / Equipment 6000 Twist 6.3mm - 52.3mm Pitch
Bare Copper Wire Bunching Machine / Equipment 6000 Twist 6.3mm - 52.3mm Pitch Bare Copper Wire Bunching Machine / Equipment 6000 Twist 6.3mm - 52.3mm Pitch Bare Copper Wire Bunching Machine / Equipment 6000 Twist 6.3mm - 52.3mm Pitch Bare Copper Wire Bunching Machine / Equipment 6000 Twist 6.3mm - 52.3mm Pitch

Large Image :  Bare Copper Wire Bunching Machine / Equipment 6000 Twist 6.3mm - 52.3mm Pitch

Product Details:
Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: CE
Model Number: FC-500B-3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: normal packing
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 20SET/PER MONTH

Bare Copper Wire Bunching Machine / Equipment 6000 Twist 6.3mm - 52.3mm Pitch

Description
Wire: Core Wire Double Twist Color: Sky Blue
Magnetic Powder Clutch: 1.2kgf Fit For Bobbin: Diameter 500/630/800/1000mm
For Wire: Bare Copper Wire/silver Jacketed Wire/enamelled Wire Wire Dia: 0.08-0.45mm
High Light:

automatic wire twister

,

cable twisting machine

,

Bare Copper Wire Bunching Equipment

FUCHUAN Bare Copper Wire Bunching Machine / Equipment 6000 Twist 6.3mm - 52.3mm Pitch





Quick Details:



Series for Model B normal wire high speed bunching machine and double twist bunching machine

Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.



Characteristics:



Japan Technology, product in China



1. High rotation speed, max up to 2600rpm, is the 1.6 times than normal (1600rpm);

2. Use PLC, hysteresis clutch take-up device imported from German, tension sensor ensure the stable tension and high quality stranding wire, especially for high quality tight line.

3. Use carbon fiber bow, strong rigidity, uneasy-transformation, small shock, light weight, reduce air friction for high quality of conductors;

4. Use synchronous belt drive, just to replace the guide wheel to change the lay distance, easy to operate.

5. Use spindle to calculate meters, only 0.01% error for a certain wire&cable.

6. Use PLC automatically lubricate spindle bearing, avoid injecting too much or too little grease. Get rid of unnormal noise and worn, cost down for maintenance.



Specifications:



Equipment models FC-500B-3
Twisting usage It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm) φ0.08-φ0.45
Stranding section area (mm²) 0.05-2.5
Core wire single wire dia φ0.5-φ1.5
Core wire stranding outer dia φ1.0-φ3.5
Pitch(mm) 6.3-52.3(24zones)
Direction of lay Optional for right or left
Outer dia*bore*outer width φ500*φ56*375
Max rotating speed 3000(6000twist)
Main motor power 5.5KW
Inverter power 5.5KW
Tension control method Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch 1.2kgf
Protection Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode Electromagnetic brake
Traversing method Rolling ring drive units, winding pitch and breadth are adjustable



Other Information

FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container



Bare Copper Wire Bunching Machine / Equipment 6000 Twist 6.3mm - 52.3mm Pitch 0Bare Copper Wire Bunching Machine / Equipment 6000 Twist 6.3mm - 52.3mm Pitch 1Bare Copper Wire Bunching Machine / Equipment 6000 Twist 6.3mm - 52.3mm Pitch 2
