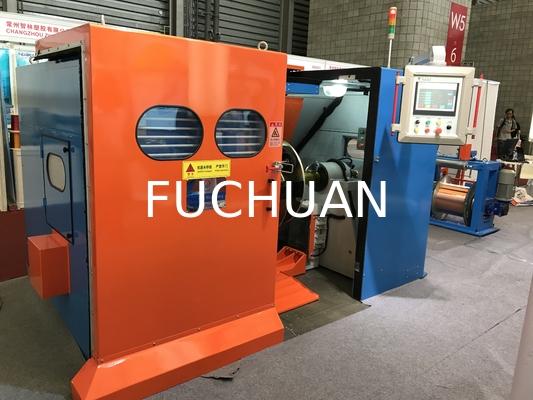

0.05-2.52mm tinned copper wire Double Twisting Stranding Making machine

0.05-2.52mm tinned copper wire Double Twisting Stranding Making machine
0.05-2.52mm tinned copper wire Double Twisting Stranding Making machine 0.05-2.52mm tinned copper wire Double Twisting Stranding Making machine 0.05-2.52mm tinned copper wire Double Twisting Stranding Making machine 0.05-2.52mm tinned copper wire Double Twisting Stranding Making machine 0.05-2.52mm tinned copper wire Double Twisting Stranding Making machine 0.05-2.52mm tinned copper wire Double Twisting Stranding Making machine

Large Image :  0.05-2.52mm tinned copper wire Double Twisting Stranding Making machine

Product Details:
Place of Origin: CHINA
Brand Name: FUCHUAN
Model Number: FC-800B
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: USD38600/SET
Packaging Details: standard packing
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 100sets/month
Contact Now

0.05-2.52mm tinned copper wire Double Twisting Stranding Making machine

Description
Highlight:

Double Twisting Stranding Machine

,

Tinned Copper Cca Wire Bunching Machine

,

2.52 mm Wire Bunching Machine

Equipment model FC-500B FC-650B FC-650B modified FC-800B
Twisting usage Apply for the twisting of above seven pcs of bare copper wires,tinned wires,silver jacketed wires and enamelled wires)double twisting for core wire
Single wire dia(mm) 0.08-0.45 0.15-1.04 0.38-1.7 0.38-1.7
Stranding section area 0.05-2.5 0.35-6.0 1.0-16
Core wire dia 0.5-1.5 0.5-3.0 1.5-4.0 1.5-4.0
Twisted outer dia 1.0-3.0 1.6-6.0 3.0-8.0
pitch 6.3-52.3 11.6-100 20-160 23-160
Direction of lay:free option to S Z
Take up size 400-500 500-630 630-800
Max speed 3000(6000TPM) 2000(4000TPM) 1600(3200TPM)
power 5.5KW 7.5KW 11KW 15KW
Tension control method:touchscreen+PLC+magnetic powder clutch,ensure constant tension from empty to full bobbin
Magnetic powder 1.2kgf 5kgf 10kgf 10kgf
protection Internal and outer wire cut off automatic brake(electromagnetic brake).automatic shut down when the meters reaches
Traversing method Precious traverse or screw type polish wire traverse,winding pitch and width are adjustable
