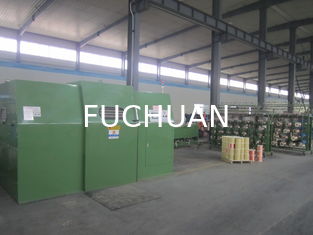

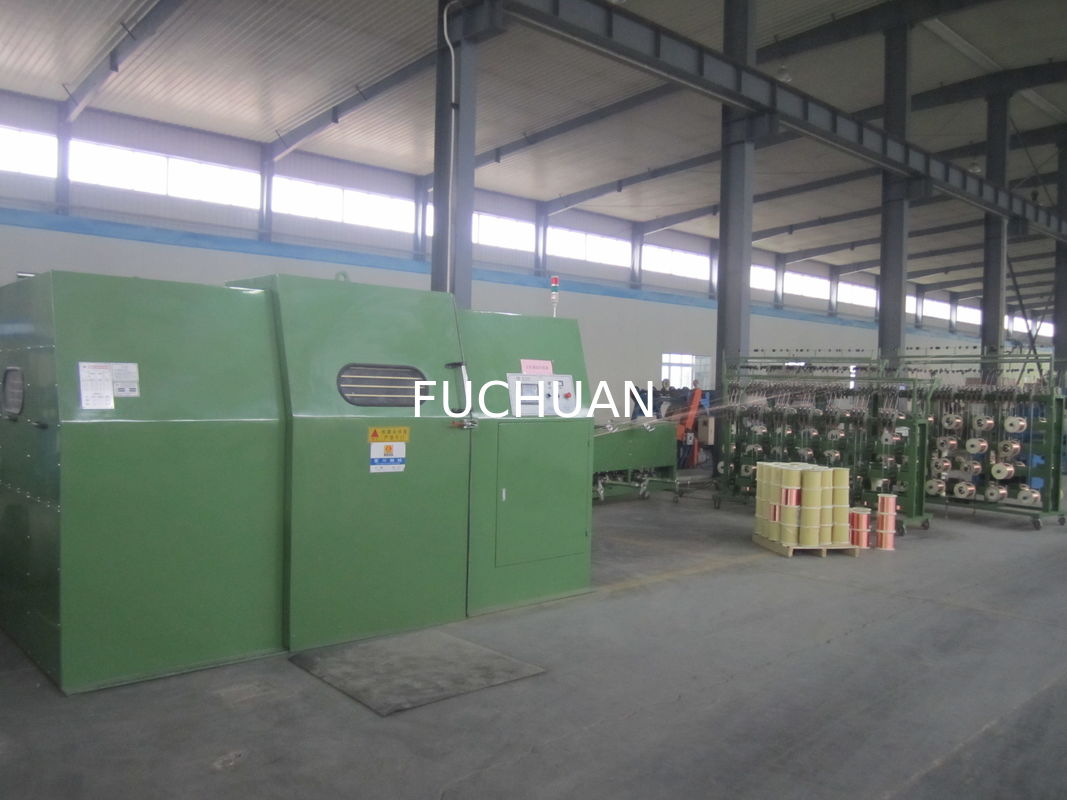

Electrical Copper Wire Bunching Machine Butter Lubrication Security

Copper Wire Bunching Machine Feature

• Over-line system: The latest structure, the wire from the spindle directly across the guide wheel to the bow belt, the bow (with) a unique semi-circular groove design, with the bow with a semicircle porcelain ring line to avoid high-speed operation due to wind resistance Caused by stranding scratch, jump shares phenomenon
• Spindle lubrication: butter lubrication (Oil lubrication defects: the oil’s temperature increases while high-speed operation , and the oil mist will concentrate into beads on the wall , falling to the reel and pollute the conductor, cause blister when conduct insulating )
• Security protection: If the door contact is not in place, lift contact is not in place, internal and external wire broken error display in the touch screen on the automatic alarm or can not start to work
• Spindle andþ aluminum disc ¨rotation arm finish: after high-speed dynamic balancer processing; noise less than dB
• Electrical control: user-friendly touch screen interface operation, control by the PLC programmer + inverter
• Flyer Bow :þ Japan imported SK5, finished with heat treatment, the surface of hard chrome þ Imported fiber glass Transmission system: drive with synchronous belts , laying accurate, no internal lubrication position, no waste products effect by refueling and machine cleaning

Copper Wire Bunching Machine parameters

• Application: cores twister and conductor stranding ,such as bare wire, tinned wire, nickel wire ,silver plated wire,enameled wire,copper clad aluminum,, alloy wire and etc. 1 + 6 can replace twisting with stranding
• Mono-filament diameter range: mm
• Twisted wire diameter range: mm
• Stranded cross-sectional area: mm²
• Spool specifications: PND
• Max speed : RPM(Design speed); (different specifications ,different speed )
• Normal working speed: up to 80% of Max speed
• Painting: RAL5015 light blue (can be customization according to customer requirements)
• Packing: waterproof simple packaging
• Direction: left hand machine, i.e, facing to the front door,pay-off on the right (can be customization according to customer requirements)
• Body and door seal: plastic seal
• Spindle bearing Seal: Mechanical oil retaining ring

Copper Wire Bunching Machine Mechanical Performance

• Spindle housing:

1.Material: ductile iron QT42-10.

2.Processing: CNC machine tooling

3.Accuracy: one processing hole end molding, to ensure concentricity.

• Spindle bearing lubrication system:

1.Lubrication method: butter lubrication

2.Butter Model: LGMT2

3.Sealing method: mechanical oil retaining ring, keep the machine clean inside

• Take up:Tensile tension control through the magnetic clutch control thread tension, by the PLC program controller automatically adjust the tension, keep tension constant
• Cable laying:Special two-way cable laying device, φ mm light rod bearing type,lay length and distance can be accurately adjusted
