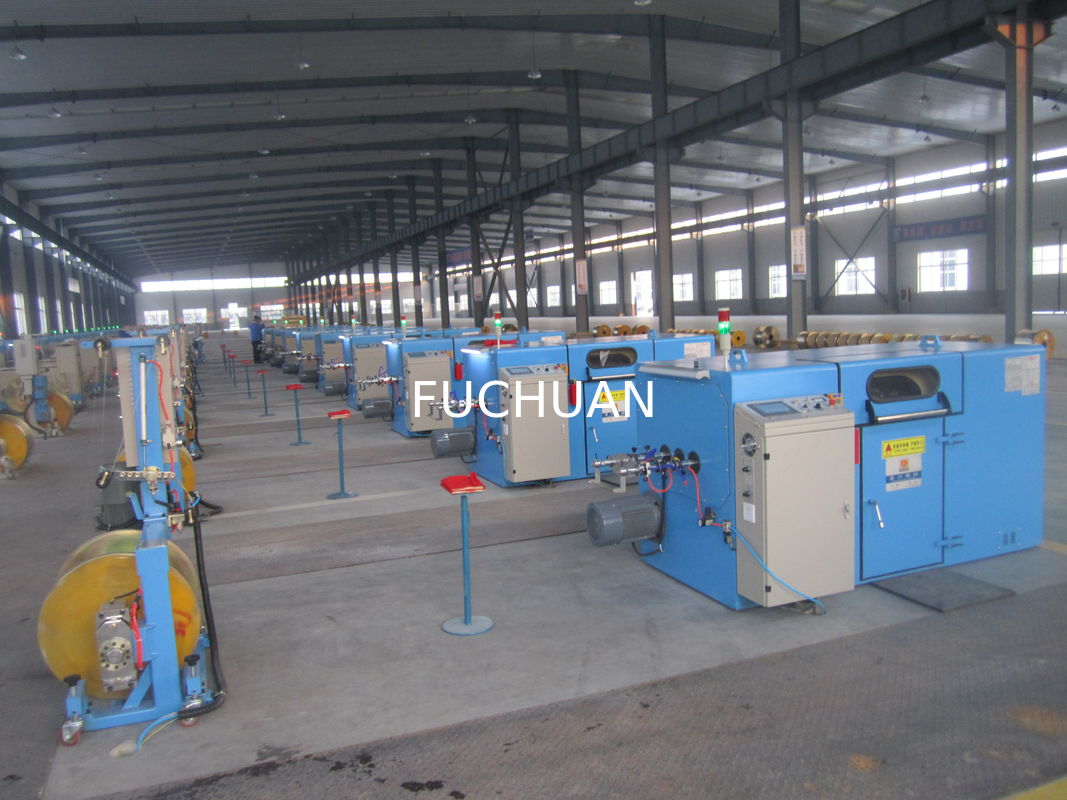

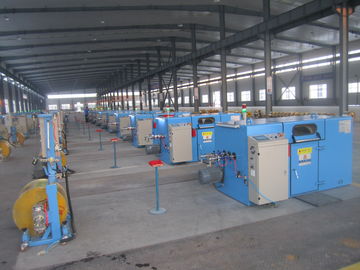

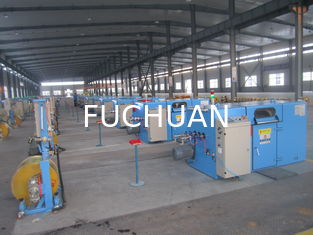

Touch Screen Double Twist Bunching Machine With Constant Tension

Touch Screen Double Twist Bunching Machine With Constant Tension
Touch Screen Double Twist Bunching Machine With Constant Tension

Large Image :  Touch Screen Double Twist Bunching Machine With Constant Tension

Product Details:
Place of Origin: China
Brand Name: FUCHUAN
Certification: CE
Model Number: FC-185C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD12000
Packaging Details: simple water proof packing
Delivery Time: 8weeks
Payment Terms: T/T
Supply Ability: 20sets/month

Touch Screen Double Twist Bunching Machine With Constant Tension

Description
Name: Double Twist Bunching Machine Stranding Section Area: 0.0034-0.055
Pitch: 0.6-3(15sections) Inverter Power: 2.2kw
Magnetic Powder Clutch: 0.1kgf Direction Of Lay: S Twist
High Light:

double cable machine

,

steel twisting machine

Touch Screen Double Twist Bunching Machine With Constant Tension



Double Twist Bunching Machine Merits:



With high rotation speed,with constant tension from empty bobbin to full bobbin,with superior

quality for twist wire,it can realize bunching instead of twisting to match up FC-100 active back-twist

pay off machine.And meet requirements of customer to twist wire of small section area,the machine

is driven by synchronization strap,only need to change capstan wheel to change the pitch,easy

to operate.





Double Twist Bunching Machine ​Application



Double Twist Bunching Machine is applied to bunch above 5 pcs alloy wire.Back-twist function,finished wire is straighten

naturally,not twist.



Detailed Product Description

Name: Double Twist Bunching Machine Stranding Section Area: 0.0034-0.055
Pitch: 0.6-3(15sections) Inverter Power: 2.2kw
Magnetic Powder Clutch: 0.1kgf Direction Of Lay: S Twist

Double Twist Bunching Machine Parameters



1. Direction of lay: S twist

2. Outer diameter of bobbin: dia185mm*30mm*180mm

3. Max rotating speed: 4500(9000twist)

4. Main motor power:2.2kw

5. Inverter power: 2.2kw

6. Tension control method: touch screen+PLC+magnetic powder clutch,it may ensure the constant tension

    from empty bobbin to full bobbin.

7. Magnetic powder clutch:0.1kgf

8. Protection: machine will automatically brake when wire inside and outside is broken,the machine will

    automatically stop when the preset length is arrived.

9. Brake mode: electromagnetic brake

10. Traversing method: Rolling ring drive units,winding pitch and breadth are adjustable.

11. Operation mode: touch screen operation

12. Dimension: 1900L*700W*1900H
