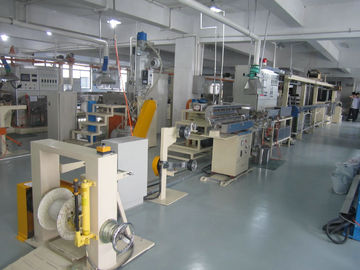

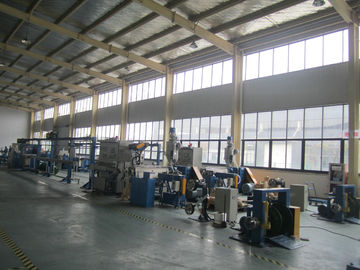

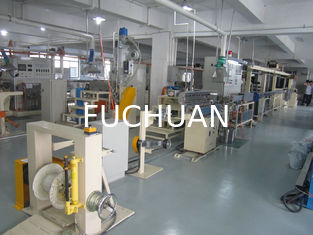

Cable Wire Extrusion Machine

Cable Wire Extrusion Machine
Cable Wire Extrusion Machine Cable Wire Extrusion Machine

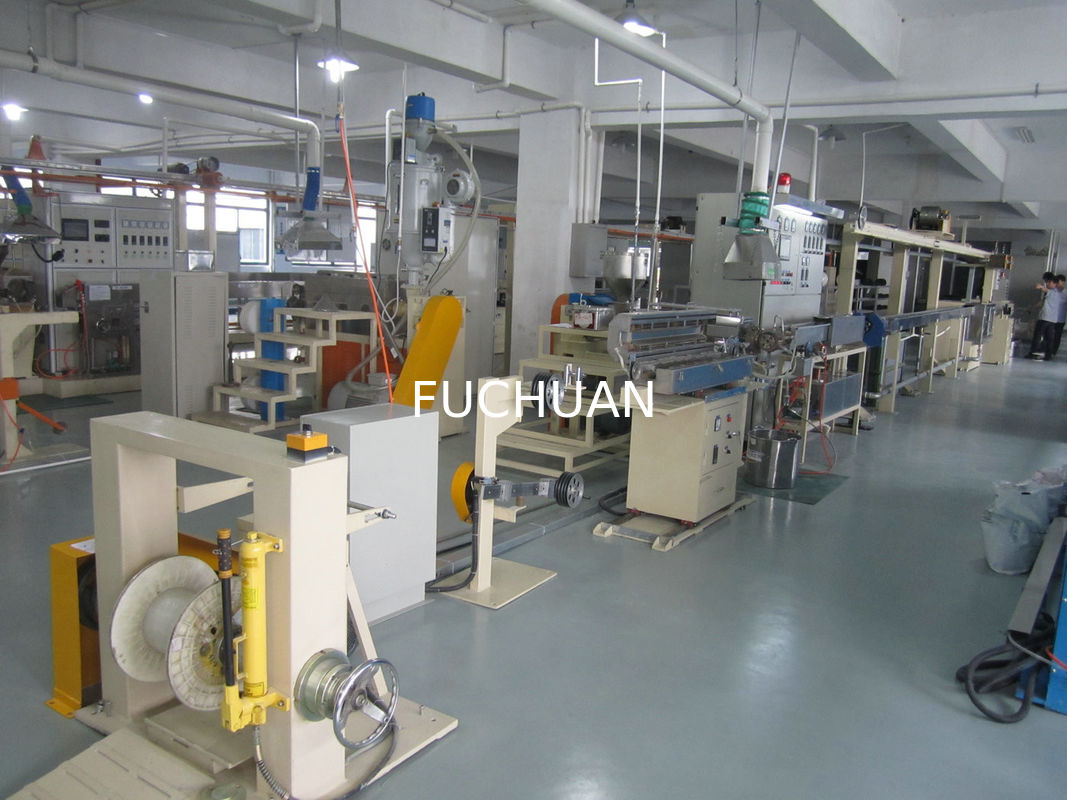

Large Image :  Cable Wire Extrusion Machine

Product Details:
Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: ISO9001:2008
Model Number: FC-50 / 60 / 70 / 80 / 90
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: cooperation
Packaging Details: with container or with box
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 22 SETS/PER MONTH

Cable Wire Extrusion Machine

Color: Sky Blue Or Apple Green Pay Off Bobbin: Diameter 500/630/800/1000mm
Material: Low Smoking Non-halogen Flameresistant Wire: Sheathed Wire/ Insulated Wire
Also Wire: LSZH,LSOH,HFFR,XLPE Pay Off Type: Active Type
Screw Dia: 50 60 70 80 90 Screw Ratio: 25:1
Capstan Power: 3.7 ~ 7.5kw
High Light:

Cable Wire Extrusion Machine


Active Type Cable Extrusion Machine


Sheathed Wire Cable Extruder

Insulating and Sheating Cable Extrusion Machine



Quick detail :


Apply for PU  PVC,low-smoking non-halogen and other material of wire insulation and sheathing line.

Also for photovoltaic extruder line

PLC control + IPC operation, display and revise technology parameters,remote control

Adopt the high speed pay off bobbin device,make sure machine don’t stop to change the bobbin



1. Wire and Cable Size :Inlet bunched conductor:φ0.6mm~φ25.0mm

            outlet diameter after sheathing: φ0.8mm~φ26.0mm

2. Wire Speed: 80m/min

3. Machine centre height: 1000mm

4. Line direction:Right to Left or Left to Right-----confirmed by the buyer.

5. Machine Body: Sky Blue Control Box: Computer White (RAL7035)

           Safe color:Yellow(RAL1021)

       6. Machine color:




Model FC-40 FC-50 FC-60 FC-70 FC-80 FC-90
Screw Diameter 40 50 60 70 80 90
Screw L/D Ratio 26:1 26:1 26:1 26:1 25:1 25:1
Feed wire type Active pay off or tension pay off
Max speed(m/min) 300 400 500 500 200 200
Extrusion output 40 70 100 150 200 250
Power for main machine(KW) 11 15 18.5 22 30 37
Wire diameter 0.5-3.0 0.6-4.0 0.8-8.0 1.5-12 5.0-20 6.0-25
Max accumulator length(m) 220
Accumulator Horizonal accumulator
Cooling channel Folding W type
Capstan diameter 340 410 410 510 Double wheel capstan or caterpillar capstan
Capstan power 2.2KW 3.7KW 3.7KW 5.5KW 7.5KW 7.5KW
Take up power 3.7KW 3.7KW 5.0KW 7.5KW 7.5KW 7.5KW
Take up type

Double shaft take-up or shaftless take up



















Other information:


active pay off or passive pay off


Terms of payment:


FOB Shanghai /  Ningbo


Payment terms:


30% down payment,70% before shipment


Delivery time:


45days after receive the downpayment






Minimum order:






With container
