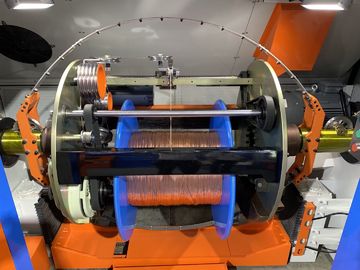

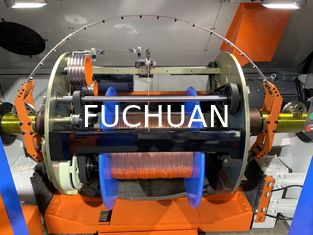

7.5kw 2000RPM Cable Twisting Machine 0.41 / 0.52 / 0.64mm Wire Twist Machine

7.5kw 2000RPM Cable Twisting Machine 0.41 / 0.52 / 0.64mm Wire Twist Machine
7.5kw 2000RPM Cable Twisting Machine 0.41 / 0.52 / 0.64mm Wire Twist Machine 7.5kw 2000RPM Cable Twisting Machine 0.41 / 0.52 / 0.64mm Wire Twist Machine 7.5kw 2000RPM Cable Twisting Machine 0.41 / 0.52 / 0.64mm Wire Twist Machine 7.5kw 2000RPM Cable Twisting Machine 0.41 / 0.52 / 0.64mm Wire Twist Machine

Large Image :  7.5kw 2000RPM Cable Twisting Machine 0.41 / 0.52 / 0.64mm Wire Twist Machine

Product Details:
Place of Origin: China Kunshan
Brand Name: FUCHUAN
Certification: CE
Model Number: FC 1+6(630F)+12
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: simple packing
Delivery Time: 8 weeks
Payment Terms: T/T, L/C
Supply Ability: 500 set per year

7.5kw 2000RPM Cable Twisting Machine 0.41 / 0.52 / 0.64mm Wire Twist Machine

Description
Wire: 19pcs Copper Wires φ0.16mm - φ0.64mm One Time Bunching Bobbin: DIA 630 Or 250mm
Wire: 19pcs Copper Wire Max Speed: 2000RPM(4000TPM)
Pay Off Motor Power: 5.5kw Take Up Motor Power: 7.5kw Cable Braiding Machine
Pay Off Bobbin: DIA 500mm
High Light:

cable twisting machine

,

wire twist machine

,

2000RPM Cable Twisting Machine

Fuchuan Copper Wire Bunching Machine 1+6(630F)+12 mainly for 0.41 / 0.52 / 0.64mm





Quick Details:



Fuchuan 1+6+12 bunching machine 19pcs copper wires φ0.16mm - φ0.64mm in one time



Characteristics:



(1). It is the latest developed machine.

(2). This machine replace the model 200 tube bunching machine with the high productivity(It is 4.5times than tube machine for the 1+6+12 conductors normal bunching)

(3). Low power, small floor place, low noise and other merits.



Specifications:



Equipment models 1+6+12(200bobbin) FC 1+6+12(630bobbin)
Twisting usage It is applicable to bunching 19pcs copper wires in one time
Single wire dia(mm) φ0.16-φ0.64
Stranding section area (mm²) 0.38-6.0
Pitch(mm) 11.6-100(34zones)
Direction of lay Optional for right or left
Pay off bobbin size 8inch,9inch φ630*φ125*475
Max rotating speed 2000(4000twist) 2000(4000twist)
Pay off type Mechanical friction Magnetic tension
Pay off machine power 5.5KW 7.5KW
Take up bobbin size φ630*φ125*475 φ630*φ125*475
Pay off Inverter power 7.5KW 7.5KW
Main motor power 7.5KW 7.5KW
Take up inverter power 7.5KW 7.5KW
Tension control method

Touch screen+PLC+magnetic powder clutch,

it may ensure the constant tension from empty bobbin to full bobbin

Magnetic powder clutch 5.0kgf 5.0kgf
Protection

Machine will automatically brake when wire inside and outside is broken,

the machine will automatically stop when the preset length is arrived.

Brake mode Electromagnetic brake
Traversing method Rolling ring drive units, winding pitch and breadth are adjustable
Operation mode Touch screen operation
Dimension(mm) 10000L*2500W*1650H 10000L*2500W*1650H





Other Information

FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container

7.5kw 2000RPM Cable Twisting Machine 0.41 / 0.52 / 0.64mm Wire Twist Machine 0
7.5kw 2000RPM Cable Twisting Machine 0.41 / 0.52 / 0.64mm Wire Twist Machine 1
