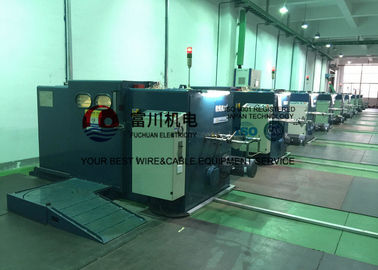

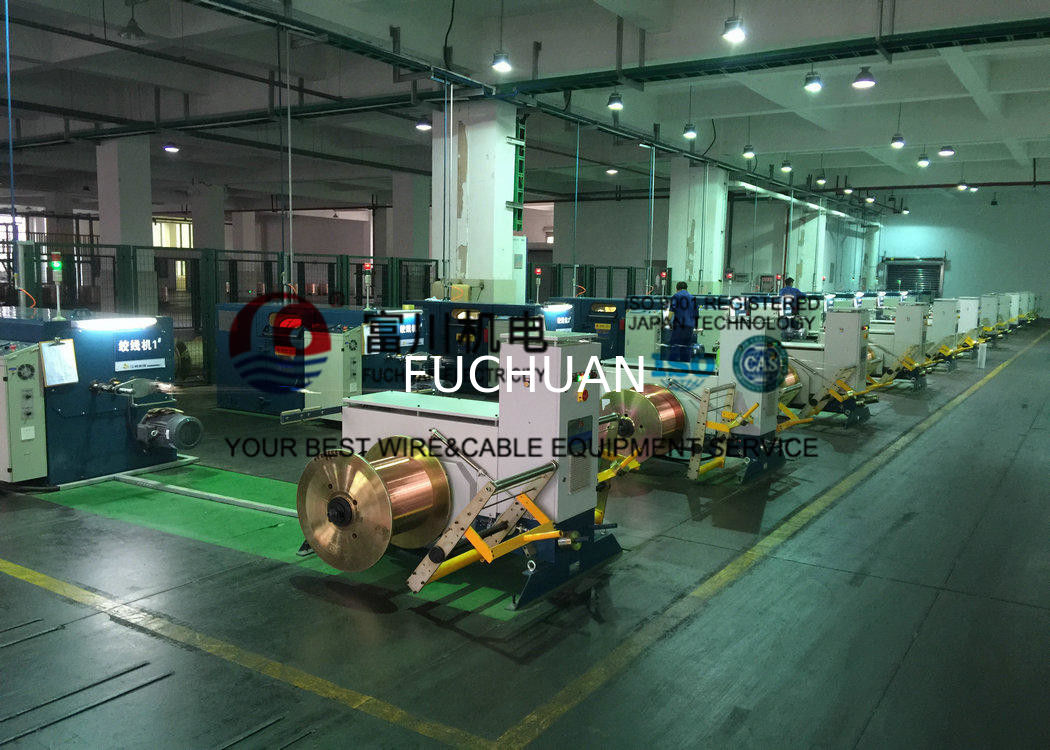

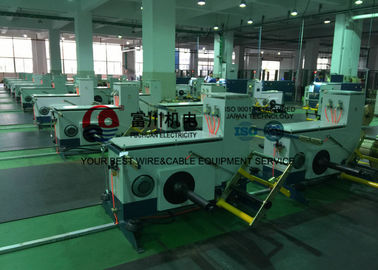

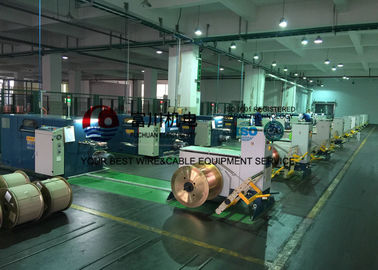

Sky Blue Copper Cable Twisting Machine , Double Twist Bunching Machinery

Sky Blue Copper Cable Twisting Machine , Double Twist Bunching Machinery
Sky Blue Copper Cable Twisting Machine , Double Twist Bunching Machinery Sky Blue Copper Cable Twisting Machine , Double Twist Bunching Machinery Sky Blue Copper Cable Twisting Machine , Double Twist Bunching Machinery Sky Blue Copper Cable Twisting Machine , Double Twist Bunching Machinery

Large Image :  Sky Blue Copper Cable Twisting Machine , Double Twist Bunching Machinery

Product Details:
Place of Origin: China
Brand Name: Fuchuan
Certification: CE
Model Number: FC-650B-6
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD27650
Packaging Details: simply packed
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 500SETS PER YEAR

Sky Blue Copper Cable Twisting Machine , Double Twist Bunching Machinery

Description
Color: Sky Blue / Apple Green Fit For Bobbin: DIA 630mm
Fit Copper Wire: 0.12mm-0.52mm Fitable Wire: Core Wire,bare Copper Wire,tinned Wires,silver Jacketed Wires
Operation Mode: Touch Screen Also Wire: Enamelled Wire / Bare Copper Wire
High Light:

cable twisting machine

,

wire twist machine

,

Sky Blue Copper Cable Twisting Machine

China FUCHUAN Copper Wire Bunching Machine , Double Twist Bunching Machinery





Quick Details:



A Japan Technology, product in China

B FUCHUAN® Series Model B normal wire high speed bunching machine and double twist bunching machine.

C New arrival, mainly apply for stranding the electrical wire and automobile wire and other small section area conductor.



Characteristics:



a. With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire,

b. Only need to change the capstan wheel to change the pitch.

c. Easy to operate.

d. The machine is driven by synchronization strap.



Specifications:



Equipment models FC-650B-6
Twisting usage Apply for the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm) φ0.15-φ1.04
Stranding section area (mm²) 0.35-6.0
Core wire single wire dia φ0.5-φ3.0
Core wire stranding outer dia φ1.0-φ6.0
Pitch(mm) 11.6-100(34zones)
Direction of lay Optional for right or left
Outer dia*bore*outer width

φ630*φ56*475

φ630*φ127*475

Max rotating speed 2000(4000twist)
Main motor power 7.5KW
Inverter power 7.5KW
Tension control method Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch 5kgf
Protection Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode Electromagnetic brake
Traversing method Rolling ring drive units, winding pitch and breadth are adjustable






































Other Information

FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container
