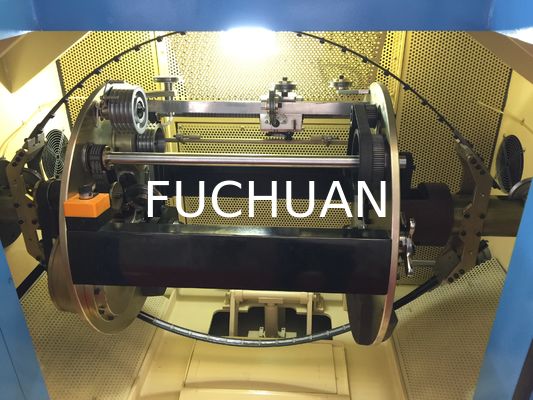

Bare Copper Wire Bunching Machine / Double Twist Cable Bunching Machine

Bare Copper Wire Bunching Machine / Double Twist Cable Bunching Machine
Bare Copper Wire Bunching Machine / Double Twist Cable Bunching Machine Bare Copper Wire Bunching Machine / Double Twist Cable Bunching Machine Bare Copper Wire Bunching Machine / Double Twist Cable Bunching Machine Bare Copper Wire Bunching Machine / Double Twist Cable Bunching Machine

Large Image :  Bare Copper Wire Bunching Machine / Double Twist Cable Bunching Machine

Product Details:
Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: CE
Model Number: FC-500B-3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD14333
Packaging Details: normal packing
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 20SET/PER MONTH

Bare Copper Wire Bunching Machine / Double Twist Cable Bunching Machine

Description
Wire: Core Wire Double Twist Color: Sky Blue
Magnetic Powder Clutch: 1.2kgf Fit For Bobbin: Diameter 500/630/800/1000mm
For Wire: Bare Copper Wire/silver Jacketed Wire/enamelled Wire Wire Dia: 0.08-0.45mm
High Light:

automatic wire twister

,

cable twisting machine

,

Bare Copper Wire Bunching Machine

Bare Copper Wire Bunching Machine





Quick guide:



Japanese Technology ,Product in China

Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires).



Characteristics:





It has been developed to produce very accurate strands with very small sections for the electronic industry. Simultaneously produce two different strand sections, on equal or different reels.One motor drive two shafts can be more environmental and power. With the main shaft meter counter, the machine twist the same types of line, and the tolerance is only 0.01%.

Patent No.:201320522156.7



Specifications:



Model FC-250D FC-300D FC-500D FC-650D
Twisting usage Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires).
Single wire dia(mm) 0.03-0.18 0.05-0.28 0.08-0.45 0.15-1.04
Stranding section area (mm²) 0.0049-0.30 0.0137-0.45 0.05-2.0 0.35-6.0
Pitch(mm) 0.8-10.8(24zones) 1.6-21.6(24zones) 6.3-52.3(24zones) 11.6-100(34zones)
Direction of lay Free to right or left
Take up bobbin size(mm) 250*30*185 300*30*185

500*56*375

500*127*375

600*56*475

600*127*475

Max rotating speed 3500(7000twist) 3500(7000twist) 3000(6000twist) 2000(4000twist)
Power 3.7KW 5.5KW 7.5KW 11KW
Tension control method Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch 0.3kgf 0.6kgf 1.2kgf 5kgf
Protection Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Traversing method Rolling ring drive units, winding pitch and breadth are adjustable
Dimension(mm) 2400L*1750W*1100H 2400L*1750W*1100H 2800L*2250w*1500H 3500L*2850W*1800H



Other Information

FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 piece
