FUCHUAN Sky Blue Double Twist Copper Wire Bunching Machine Diameter 630mm

China FUCHUAN Sky Blue Double Twist Copper Wire Bunching Machine  Diameter 630mm supplier
FUCHUAN Sky Blue Double Twist Copper Wire Bunching Machine  Diameter 630mm supplier FUCHUAN Sky Blue Double Twist Copper Wire Bunching Machine  Diameter 630mm supplier FUCHUAN Sky Blue Double Twist Copper Wire Bunching Machine  Diameter 630mm supplier FUCHUAN Sky Blue Double Twist Copper Wire Bunching Machine  Diameter 630mm supplier

Large Image :  FUCHUAN Sky Blue Double Twist Copper Wire Bunching Machine Diameter 630mm

Product Details:

Place of Origin: China
Brand Name: Fuchuan
Certification: ISO9001 2008
Model Number: FC-650B-3

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD27600
Packaging Details: simply packed
Delivery Time: 45days
Supply Ability: 500 SETS/MONTH
Contact Now
Detailed Product Description
Color: Sky Blue Fit For Bobbin: Diameter 630mm
Fit Copper Wire: 0.12mm-0.52mm Wire: Core Wire,bare Copper Wire,tinned Wires,silver Jacketed Wires
Control Type: Computer Control Or Knob Control Twist: Double Twist
Control: Computer Control

FUCHUAN Sky Blue Double Twist Copper Wire Bunching Machine Diameter 630mm





Quick Details:



FUCHUAN® Series for Model B normal wire high speed bunching machine and double twist bunching machine.

Japan Technology, product in China

New arrival, mainly apply for stranding the electrical wire and automobile wire and other small section area conductor.



Characteristics:



With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.



Specifications:



Equipment models FC-650B-3
Twisting usage It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm) φ0.15-φ1.04
Stranding section area (mm²) 0.35-6.0
Core wire single wire dia φ0.5-φ3.0
Core wire stranding outer dia φ1.0-φ6.0
Pitch(mm) 11.6-100(34zones)
Direction of lay Optional for right or left
Outer dia*bore*outer width

φ630*φ56*475

φ630*φ127*475

Max rotating speed 2000(4000twist)
Main motor power 7.5KW
Inverter power 7.5KW
Tension control method Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch 5kgf
Protection Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode Electromagnetic brake
Traversing method Rolling ring drive units, winding pitch and breadth are adjustable









































































Other Information

FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container

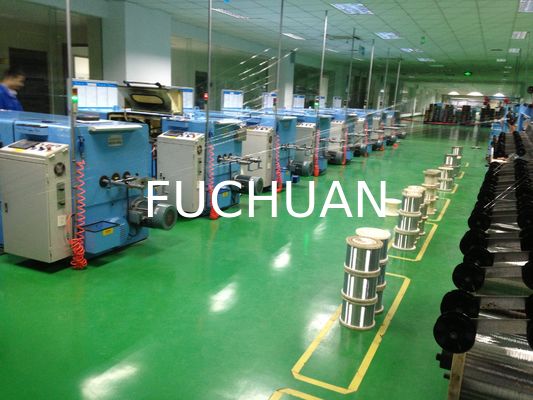

FUCHUAN Sky Blue Double Twist Copper Wire Bunching Machine  Diameter 630mm
