Normal Copper Wire Bunching Machine 34 Zones Adjudtable Winding Pitch

Normal Copper Wire Bunching Machine 34 Zones Adjudtable Winding Pitch
Normal Copper Wire Bunching Machine 34 Zones Adjudtable Winding Pitch Normal Copper Wire Bunching Machine 34 Zones Adjudtable Winding Pitch Normal Copper Wire Bunching Machine 34 Zones Adjudtable Winding Pitch Normal Copper Wire Bunching Machine 34 Zones Adjudtable Winding Pitch

Large Image :  Normal Copper Wire Bunching Machine 34 Zones Adjudtable Winding Pitch

Product Details:
Place of Origin: China
Brand Name: Fuchuan
Certification: CE
Model Number: FC-650B-1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: simply packed
Delivery Time: 45days
Supply Ability: 50SETS/MONTH

Normal Copper Wire Bunching Machine 34 Zones Adjudtable Winding Pitch

Description
Name: Cable Manufacturing Machine Fit For Bobbin: Diameter 630mm
Fit Copper Wire: 0.12mm-0.52mm Wire: Core Wire,bare Copper Wire,tinned Wires,silver Jacketed Wires
Also Wire: Enamelled Wire Double Twist Pitch: Can Be Adjudtable
High Light:

automatic wire twister

,

cable twisting machine

,

34 Zones Copper Bunching Machine

FUCHUAN Normal Copper Wire Bunching Machine 34 Zones Adjudtable Winding Pitch





Quick Details:



Series for Model C normal wire high speed bunching machine and double twist bunching machine

 With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.



Characteristics:



Japan Technology, product in China

1.High rotation speed, max up to 2600rpm, is the 1.6 times than normal (1600rpm);

2.Use PLC, hysteresis clutch take-up device imported from German, tension sensor ensure the stable tension and high quality stranding wire, especially for high quality tight line.

3.Use carbon fiber bow, strong rigidity, uneasy-transformation, small shock, light weight, reduce air friction for high quality of conductors;

4.Use synchronous belt drive, just to replace the guide wheel to change the lay distance, easy to operate.

5.Use spindle to calculate meters, only 0.01% error for a certain wire&cable.

6.Use PLC automatically lubricate spindle bearing, avoid injecting too much or too little grease. Get rid of unnormal noise and worn, cost down for maintenance.



Specifications:



Equipment models FC-650B-1
Twisting usage It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm) φ0.15-φ1.04
Stranding section area (mm²) 0.35-6.0
Core wire single wire dia φ0.5-φ3.0
Core wire stranding outer dia φ1.0-φ6.0
Pitch(mm) 11.6-100(34zones)
Direction of lay Optional for right or left
Outer dia*bore*outer width

φ630*φ56*475

φ630*φ127*475

Max rotating speed 2000(4000twist)
Main motor power 7.5KW
Inverter power 7.5KW
Tension control method Touch screen +PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch 5kgf
Protection Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode Electromagnetic brake
Traversing method Rolling ring drive units, winding pitch and breadth are adjustable

Other Information

FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container

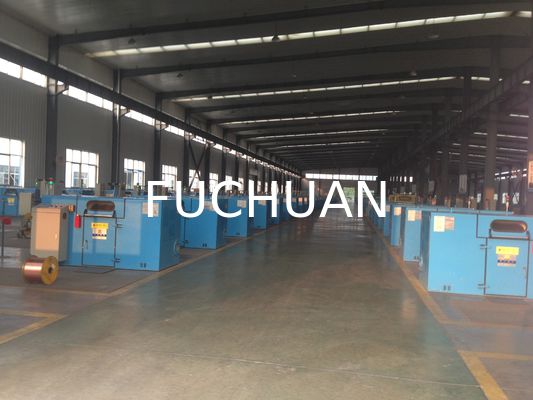

Normal Copper Wire Bunching Machine 34 Zones Adjudtable Winding Pitch 0
