Industrial Copper Wire Twisting Machine , Copper Busbar Punching Machine

China Industrial Copper Wire Twisting Machine , Copper Busbar Punching Machine supplier

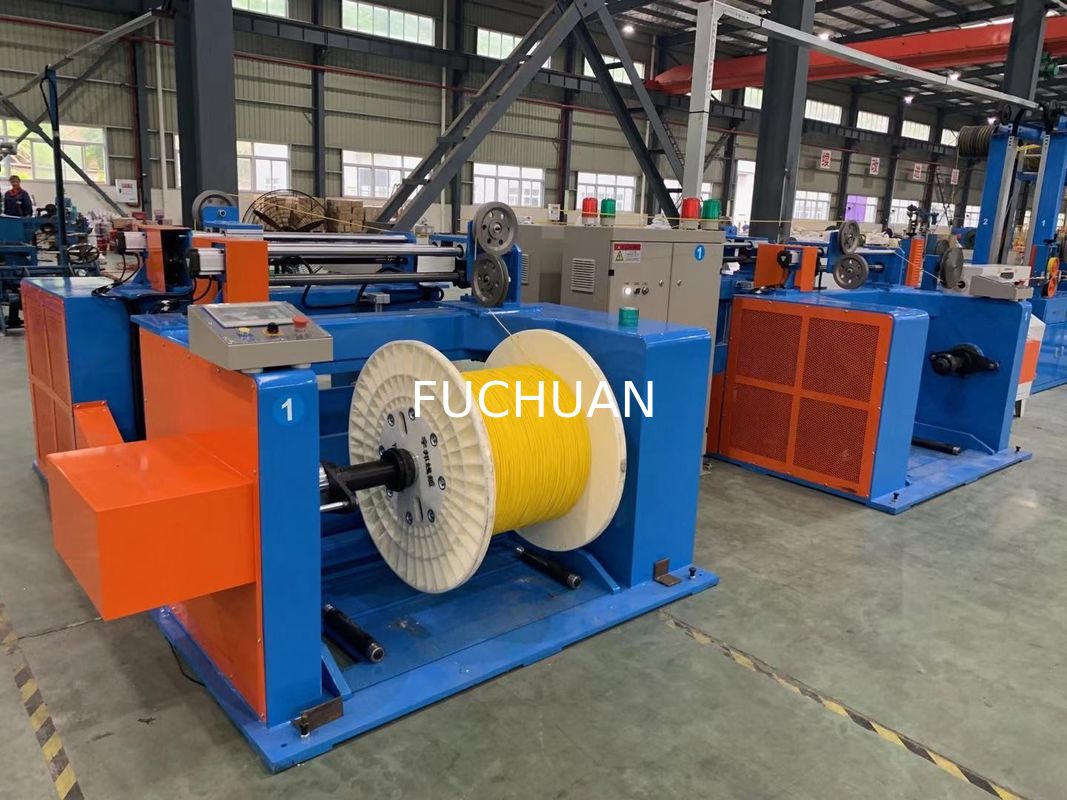

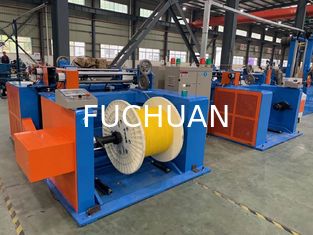

Large Image :  Industrial Copper Wire Twisting Machine , Copper Busbar Punching Machine

Product Details:

Place of Origin: China Kunshan
Brand Name: FUCHUAN
Certification: CE
Model Number: 200B

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: simple packing
Delivery Time: 8weeks
Payment Terms: T/T
Supply Ability: 3000 Sets per month
Contact Now
Detailed Product Description
Product Name: Copper Wire Twisting Machine Application: Industrial
Twisted Wire Diameter Range: φ0.075~ φ0.24mm Stranded Cross-sectional Area: 4.0.0034~ 0.035mm²
Spool Specifications: φ200mm ×31mm×φ135mm Other Name: Copper Busbar Punching Machine
Strand Lay Length: 0.8~ 4.0mm 14 Class Advantage: Eco Friendly

Industrial Copper Wire Twisting Machine , Copper Busbar Punching Machine



Copper Wire Twisting Machine Merits:



1. Change the lay length: easy to operate, just change the leading wheel according to the lay length sheet

2. Pressing device: equipped with two pressing devices to ensure the roundness of the conductor after twisting, to protect the product characteristics of thin-walled insulation line, effectively reduce the wear and tear of insulating materials.

3. Meter counting way: the latest domestic design, with spindle meters; the same machine twisted with a conductor specifications, meter error in one ten thousandth



Copper Wire Twisting Machine Specification:



Description Model Origin
1.Host Motor 2.2KW-4P 380V 50Hz SIEMENS
2.Inverter 2.2KW INOVANCE
3.PLC Programmer 32MR INOVANCE
4.PLC Expander VB-3A INOVANCE
5.Touch Screen 7 inches RGB WEINVIEW
6.Electromagnetic Brake 6KG Tai Wan Weizheng
7.Magnetic Clutch 0.05KG Japan OPC
8.Spindle Bearings 1SET SWEDEN SKF
Other Bearings 1SET JAPAN NSK
9.Timing Belt 1SET US GATES
10.Cable Laying Device GP20(Special bi-direction) SHANXI Tianxiang
11.Tension Controller WLK-0.5A TAIWAN
12.Bow 1SET Japan
13.Body 1SET Self-processing
14.Spindle 2pcs Self-processing
15.Aluminum Plate 2pcs Self-processing



Copper Wire Twisting Machine Spare parts sheet



No. Description Model Qty Remark
1 Operating instructions   1SET
2 Electrical Schematic   1SET
3 Inverter manual   1pcs
4 Spindle guide wheel Φ46(with 696 ZZ Bearings) 1SET
5 Wire guide wheel Φ34(693AZZ Bearings) 1SET
6 Loops in Bow Bilateral porcelain ring 3pcs
7 Split plate porcelain ring Φ4.0 3pcs
8 Stranded Die None
9-11 Timing belt 5M-450*10 1pcs
12 Spool Top sleeve Φ200 spool 1SET
13 SKF Butter LGMT2/1

1

Bottle

1KG
14 Grease gun   1pcs
15 Tool   1SET




Wire Stranding Machine Mechanical Performance



1. Body structure:



1) Material: low carbon steel welded together.

2) Structure: the body by annealing and aging, to eliminate internal stress, and then boring by a precision boring machine to forming a molding.



2. Bunching Entry part:



1) Bunching Entry position: facing to the front door, at the right side of the machine (can be customization according to customer requirements to change to the left side).

2) Bunching Entry Mode : from the pay-off device through the disconnection sensing area, first to the total sub-line board (sub-hole by 1 +6 +12 + ... distribution), through first pressure mold, then the second Pressure mold, after entering the right spindle within the wire guide wheel. From the aluminum arch with porcelain ring and then into the left spindle within the wire guide wheel, and then through the center corner’s guide wheel to the leading wheel, Final to the aligner’s guide wheel to cable laying (see wire bunching entry pattern diagram)



3. Spindle:



1) Material: 40Cr steel forging after quenching and tempering treatment.

2) Accuracy: The shaft core outer face diameter and the bearing end face are ground to ensure concentricity and verticality with the axis.

3) Dynamic balance: Standard of G2.5 (0.03 grams of weight difference)



4. Aluminum plate:



1) Material: ZL104

2) Accuracy: All end faces are positioned relative to the locating holes(less than 0.03 grams)

3) Dynamic balance: Accuracy of G2.5 (0.03 grams of weight difference)



5. Spindle housing:



1) Material: ductile iron QT42-10.

2) Processing: CNC machine tooling

3) Accuracy: one processing hole end molding, to ensure concentricity.
