Eco Friendly Wire Stranding Machine / Latest Structure Wire Twister Machine

China Eco Friendly Wire Stranding Machine / Latest Structure Wire Twister Machine supplier

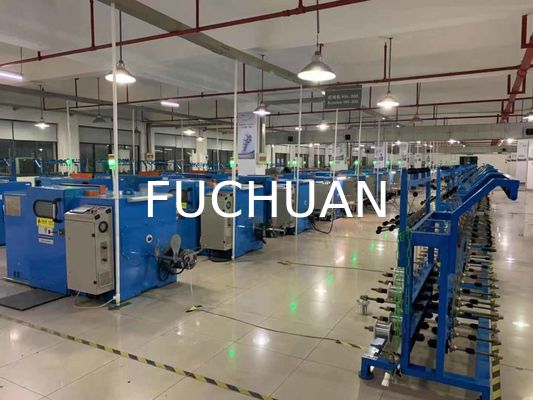

Large Image :  Eco Friendly Wire Stranding Machine / Latest Structure Wire Twister Machine

Product Details:

Place of Origin: China Kunshan
Brand Name: FUCHUAN
Certification: ISO9001:2008
Model Number: 200B

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: simple packing
Delivery Time: 8weeks
Payment Terms: T/T
Supply Ability: 3000 Sets per month
Contact Now
Detailed Product Description
Product Name: Wire Stranding Machine Mono-filament Diameter Range: Stable
Twisted Wire Diameter Range: φ0.075~ φ0.24mm Stranded Cross-sectional Area: 4.0.0034~ 0.035mm²
Spool Specifications: φ200mm ×31mm×φ135mm Max Speed: 3000RPM
Strand Lay Length: 0.8~ 4.0mm 14 Class Advantage: Eco Friendly

Eco Friendly Wire Stranding Machine / Latest Structure Wire Twister Machine


Wire Stranding Machine Merits:


1. Spindle lubrication: butter lubrication (Oil lubrication defects: the oil’s temperature increases while high-speed operation , and the oil mist will concentrate into beads on the wall , falling to the reel and pollute the conductor, cause blister when conduct insulating )

2. Security protection: If the door contact is not in place, lift contact is not in place, internal and external wire broken error display in the touch screen on the automatic alarm or can not start to work

3. Change the lay length: easy to operate, just change the leading wheel according to the lay length sheet

4. Pressing device: equipped with two pressing devices to ensure the roundness of the conductor after twisting, to protect the product characteristics of thin-walled insulation line, effectively reduce the wear and tear of insulating materials.

5. Meter counting way: the latest domestic design, with spindle meters; the same machine twisted with a conductor specifications, meter error in one ten thousandth


Wire Stranding Machine Detail Specification:


Description Model Origin
1.Host Motor 2.2KW-4P 380V 50Hz SIEMENS
2.Inverter 2.2KW INOVANCE
3.PLC Programmer 32MR INOVANCE
5.Touch Screen 7 inches RGB WEINVIEW
6.Electromagnetic Brake 6KG Tai Wan Weizheng
7.Magnetic Clutch 0.05KG Japan OPC
8.Spindle Bearings 1SET SWEDEN SKF
Other Bearings 1SET JAPAN NSK
9.Timing Belt 1SET US GATES
10.Cable Laying Device GP20(Special bi-direction) SHANXI Tianxiang
11.Tension Controller WLK-0.5A TAIWAN
12.Bow 1SET Japan
13.Body 1SET Self-processing
14.Spindle 2pcs Self-processing
15.Aluminum Plate 2pcs Self-processing
16.Timing Pulley 1SET Wu Xi
17.Bearing Housings 1SET Self-processing
18.Disc 2pcs Self-processing
19.Transmission Shaft 1pcs Subcontracting
20.Leading Wheel 1SET Self-processing surface with hard chrome plating
21.Wire guide wheel 6pcs Self-processing surface with hard chrome plating


Wire Stranding Machine Spare parts sheet


No. Description Model Qty Remark
1 Operating instructions   1SET
2 Electrical Schematic   1SET
3 Inverter manual   1pcs
4 Spindle guide wheel Φ46(with 696 ZZ Bearings) 1SET
5 Wire guide wheel Φ34(693AZZ Bearings) 1SET
6 Loops in Bow Bilateral porcelain ring 3pcs
7 Split plate porcelain ring Φ4.0 3pcs
8 Stranded Die None
9-11 Timing belt 5M-450*10 1pcs
12 Spool Top sleeve Φ200 spool 1SET
13 SKF Butter LGMT2/1



14 Grease gun   1pcs
15 Tool   1SET


Wire Stranding Machine Mechanical Performance


1. Body structure:


1) Material: low carbon steel welded together.

2) Structure: the body by annealing and aging, to eliminate internal stress, and then boring by a precision boring machine to forming a molding.


2. Bunching Entry part:


1) Bunching Entry position: facing to the front door, at the right side of the machine (can be customization according to customer requirements to change to the left side).

2) Bunching Entry Mode : from the pay-off device through the disconnection sensing area, first to the total sub-line board (sub-hole by 1 +6 +12 + ... distribution), through first pressure mold, then the second Pressure mold, after entering the right spindle within the wire guide wheel. From the aluminum arch with porcelain ring and then into the left spindle within the wire guide wheel, and then through the center corner’s guide wheel to the leading wheel, Final to the aligner’s guide wheel to cable laying (see wire bunching entry pattern diagram)


3. Spindle:


1) Material: 40Cr steel forging after quenching and tempering treatment.

2) Accuracy: The shaft core outer face diameter and the bearing end face are ground to ensure concentricity and verticality with the axis.

3) Dynamic balance: Standard of G2.5 (0.03 grams of weight difference)


4. Aluminum plate:


1) Material: ZL104

2) Accuracy: All end faces are positioned relative to the locating holes(less than 0.03 grams)

3) Dynamic balance: Accuracy of G2.5 (0.03 grams of weight difference)


5. Spindle housing:


1) Material: ductile iron QT42-10.

2) Processing: CNC machine tooling

3) Accuracy: one processing hole end molding, to ensure concentricity.


6. Spindle bearing lubrication system:


1) Lubrication method: butter lubrication

2) Butter Model: LGMT2

3) Sealing method: mechanical oil retaining ring, keep the machine clean inside


7.Take up:Tensile tension control: through the magnetic clutch control thread tension, by the PLC program controller automatically adjust the tension, keep tension constant


8. Cable laying:Special two-way cable laying device, φ15mm light rod bearing type,lay length and distance can be accurately adjusted


12. Spool Size:


Out Dia(φD) Fix Hole(φd) Outer Length(L1) Inner Length(L2) Positioning Hole PCD
200 31 135 110 Φ14 59

(Can be customerize)
