Product Details:
|
| Color: | Sky Blue Wire Making Machine | Feed Wire Type: | Active Pay Off Or Tension Pay Off |
|---|---|---|---|
| Applicable: | Electrical Wire, Power Wire, Insulated Sheathing And Other Wire&cable | Max Speed: | 200m/mim |
| Extrusion Output: | 250kg/h | Screw Diameter: | 90mm |
| High Light: | wire extrusion machine,wire stranding machine |
||

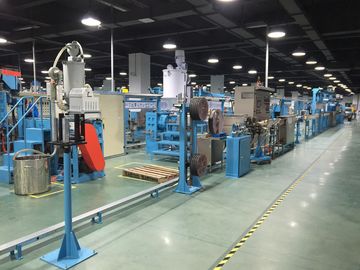

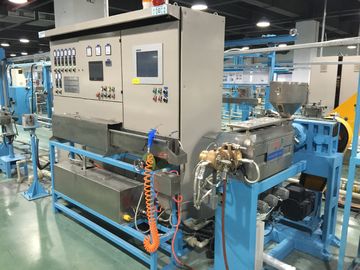

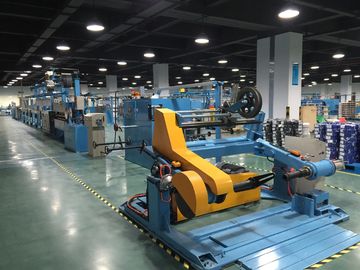

Fuchuan Sky Blue Electric Wire Extruder Machine for Single Wire Dia 6-25mm
Quick Details:
It is applied to produce the electrical wire, power wire, insulated sheathing and other wire&cable.
Specifications:
| Model | FC-40 | FC-50 | FC-60 | FC-70 | FC-80 | FC-90 |
| Screw Diameter | 40 | 50 | 60 | 70 | 80 | 90 |
| Screw L/D Ratio | 26:1 | 26:1 | 26:1 | 26:1 | 25:1 | 25:1 |
| Feed wire type | Active pay off or tension pay off | |||||
| Max speed(m/min) | 300 | 400 | 500 | 500 | 200 | 200 |
| Extrusion output | 40 | 70 | 100 | 150 | 200 | 250 |
| Power for main machine(KW) | 11 | 15 | 18.5 | 22 | 30 | 37 |
| Wire diameter | 0.5-3.0 | 0.6-4.0 | 0.8-8.0 | 1.5-12 | 5.0-20 | 6.0-25 |
| Max accumulator length(m) | 220 | |||||
| Accumulator | Horizonal accumulator | |||||
| Cooling channel | Folding W type | |||||
| Capstan diameter | 340 | 410 | 410 | 510 | Double wheel capstan or caterpillar capstan | |
| Capstan power | 2.2KW | 3.7KW | 3.7KW | 5.5KW | 7.5KW | 7.5KW |
| Take up power | 3.7KW | 3.7KW | 5.0KW | 7.5KW | 7.5KW | 7.5KW |

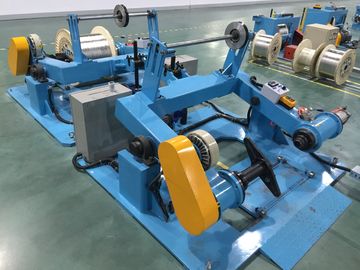

| Take up type | Double shaft take-up or shaftless take up | |||||
