High Speed Automobile Wire Extrusion Machine 60Kg / H Extrusion Output

High Speed Automobile Wire Extrusion Machine 60Kg / H Extrusion Output
High Speed Automobile Wire Extrusion Machine 60Kg / H Extrusion Output High Speed Automobile Wire Extrusion Machine 60Kg / H Extrusion Output High Speed Automobile Wire Extrusion Machine 60Kg / H Extrusion Output

Large Image :  High Speed Automobile Wire Extrusion Machine 60Kg / H Extrusion Output

Product Details:
Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: ISO9001:2008
Model Number: FC-50+35
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: normal packing
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 20SET/PER MONTH

High Speed Automobile Wire Extrusion Machine 60Kg / H Extrusion Output

Description
Color: Sky Blue Or Grass Green Pay Off Bobbin: Diameter 500/630/800/mm
Material: PVC,PP,PE,SR-PVC Screw Dia: 50
Screw Ratio: 25:1 Extrusion Output: 60
Max Speed: 500m/min Cable Extrusion Machine
High Light:

wire extrusion machine

,

cable stranding machine

High Speed Automobile Wire Extrusion Machine 60Kg / H Extrusion Output

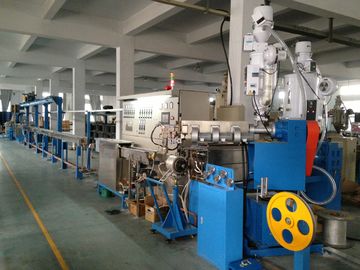

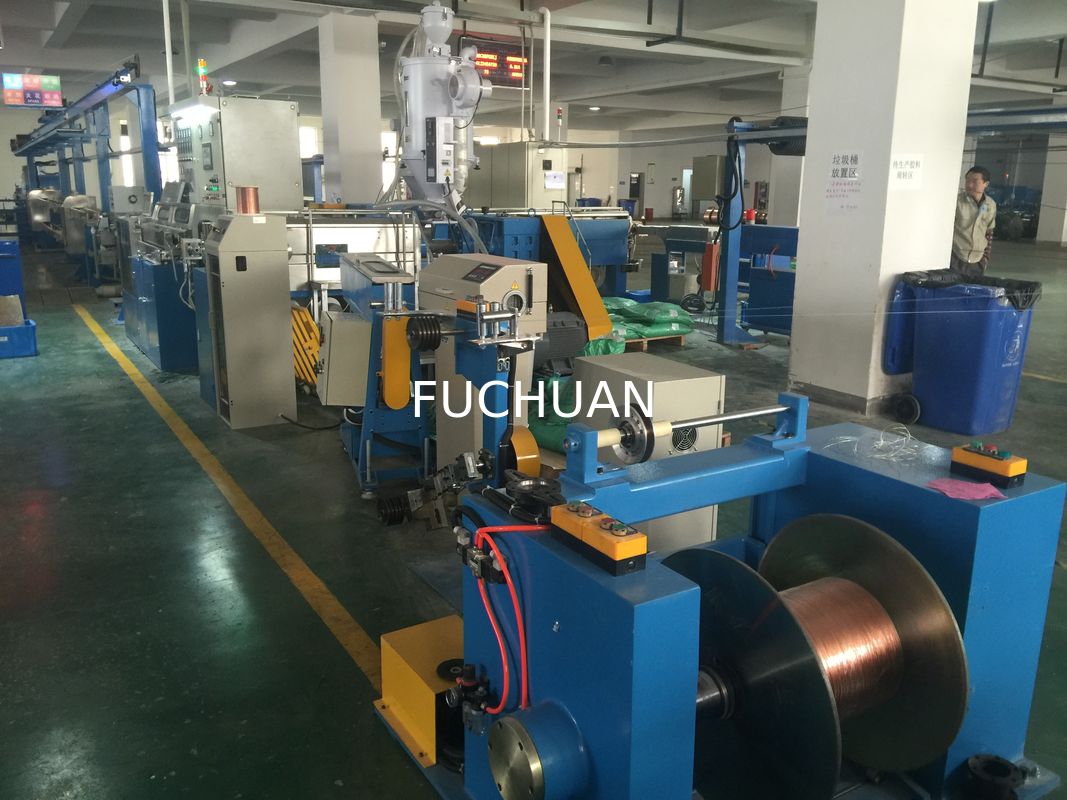

Automobile wire high speed extruder line



Usage:

It is applied to extrude the PVC,PP,PE,SR-PVC and other plastic material for the automobile wire,insulated jacketed.



Device structure:



Lut barrel up pay off machine,straighten ,main machine,injection machine,control case,water tank,double

wheel capstan,accumulator,double shaft take up and other equipments. The choice equipments: copper wire pre-heater,printer,OD measuring instrument,spark tester and PLC control or IPC operation. Save,display and revise technology parameter,remote control.



1. Mechanical model: FC-50+35

2. Pay off type: 500-630active pay off or lut barrel up pay off

3.  Screw dia: 50

4.  Screw ratio: 25:1

5.  Revolving speed of screw: max 100rpm

6.  Extrusion output: 60kg/h

7.  Main power: 15kw

8.  Wire diameter: 0.6-4.0mm

9.  Cooling device: monolayer/double layer model U

10. Take up type:1246 automatic coiling machine,the plum blossom falls barrel machine,shaft type.



High Speed Automobile Wire Extrusion Machine 60Kg / H Extrusion Output 0
