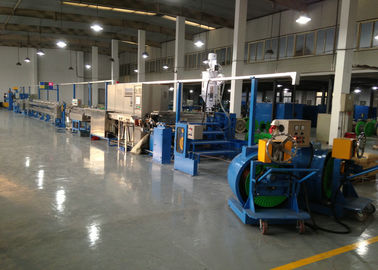

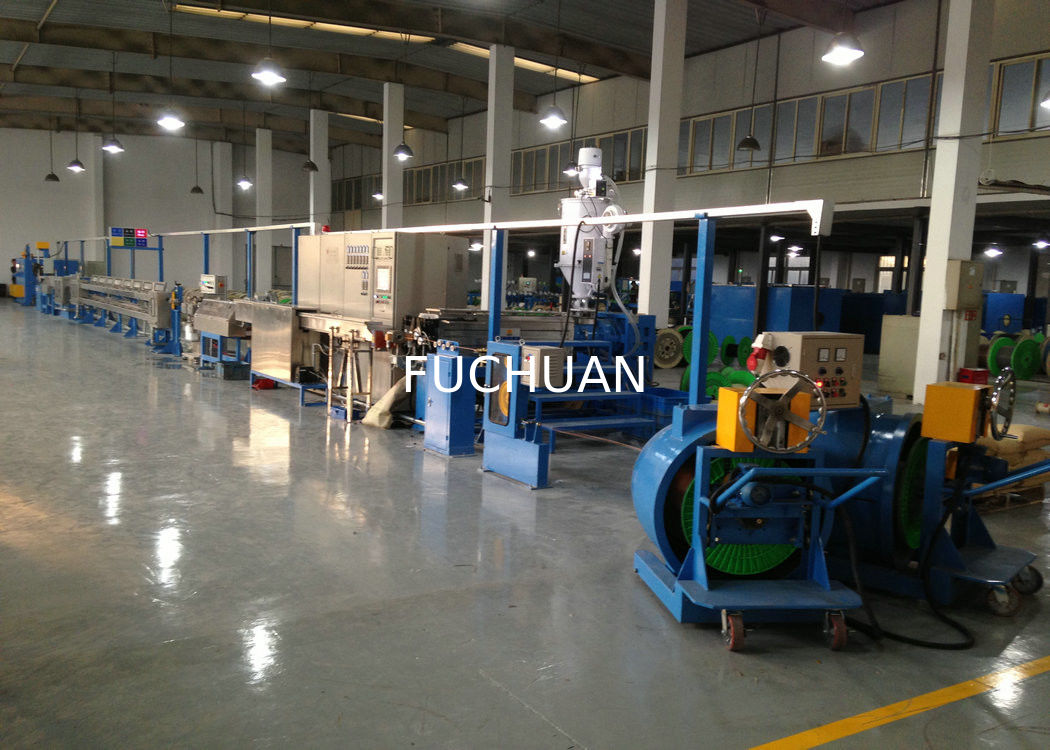

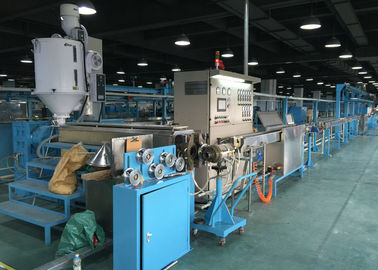

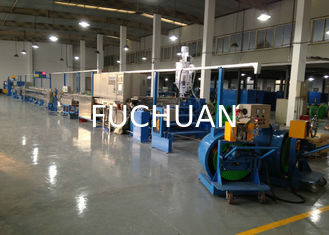

PE SR-PVC Wire Extrusion Machine Plastic Insulating Diameter 500 Pay Off Bobbin

PE SR-PVC Wire Extrusion Machine Plastic Insulating Diameter 500 Pay Off Bobbin
PE SR-PVC Wire Extrusion Machine Plastic Insulating Diameter 500 Pay Off Bobbin PE SR-PVC Wire Extrusion Machine Plastic Insulating Diameter 500 Pay Off Bobbin PE SR-PVC Wire Extrusion Machine Plastic Insulating Diameter 500 Pay Off Bobbin PE SR-PVC Wire Extrusion Machine Plastic Insulating Diameter 500 Pay Off Bobbin

Large Image :  PE SR-PVC Wire Extrusion Machine Plastic Insulating Diameter 500 Pay Off Bobbin

Product Details:
Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: ISO9001:2008
Model Number: FC-70-2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: normal packing
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 500 sets one year
Contact Now

PE SR-PVC Wire Extrusion Machine Plastic Insulating Diameter 500 Pay Off Bobbin

Description
Screw Ratio: 26:1 Color: Sky Blue
Max Speed: 500rpm Pay Off Bobbin: Diameter 500/630/800/1000mm
Material: PVC,PP,PE,SR-PVC Screw Dia: 70
Highlight:

wire stranding machine

,

cable stranding machine

PE SR-PVC Wire Extrusion Machine Plastic Insulating Diameter 500 Pay Off Bobbin





Quick Details:


Serial insulating production line



It is applied to extrude the PVC,PP,PE,SR-PVC and other plastic material for the automobile wire,insulated  jacketed.



Characteristics:

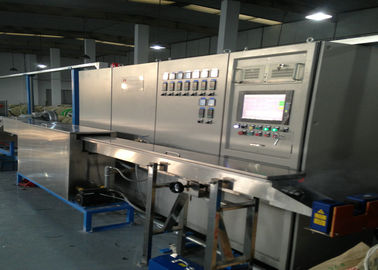

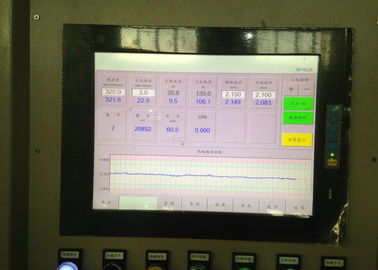

Lut barrel pay off machine,straighten,main machine,injection machine,control case,tank,double wheel capstan,accumulator,double shaft take up and other equipments. The choice equipments: copper wire pre-heater,printer,OD measuring instrument,spark tester and plc control or IPC operation.Save,display and revise technology parameter,remote control.



Specification:



Usage BV building wire
Inlet copper wire diameter Φ2.5-3.0mm
Outlet copper wire diameter Φ0.8-1.78mm
Extrusion finished wire diameter Φ2.0-5.0mm
Max speed 300
Max die number 17
Mechanical reduction ratio 20%
Capstan reduction ratio 15%
Drawing machine power 45KW
Annealing type DC 3phase
Accumulator Vertical accumulator
Extruder main machine FC-70
Injection machine 45horizonal injection machine
Extruder main machine power 22KW
printer Double printer
Cooling tank Double layers
Capstan 510double wheels
Accumulator horizonal
Take up Shaft or coiling machine



















































Other Information



FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container



PE SR-PVC Wire Extrusion Machine Plastic Insulating Diameter 500 Pay Off Bobbin 0

PE SR-PVC Wire Extrusion Machine Plastic Insulating Diameter 500 Pay Off Bobbin 1

PE SR-PVC Wire Extrusion Machine Plastic Insulating Diameter 500 Pay Off Bobbin 2
