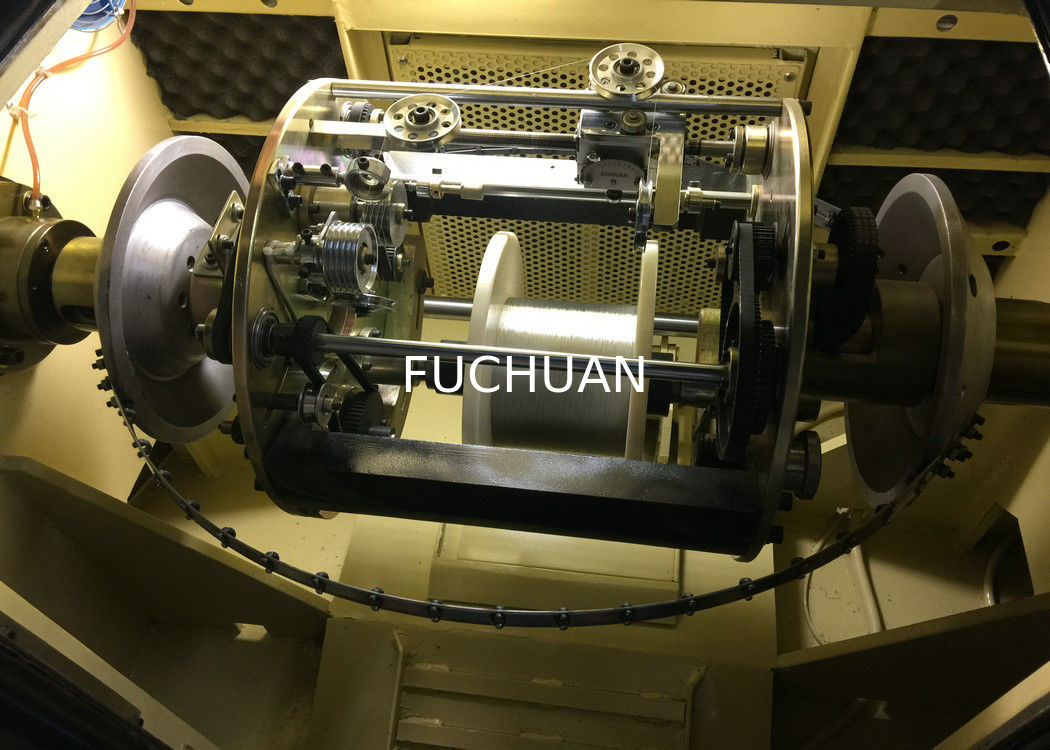

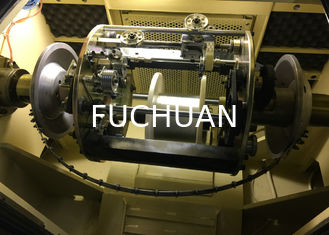

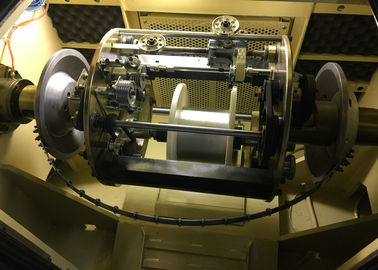

Gear Single Twist Copper Wire Bunching Machine 630 Bobbin Computer Control

Gear Single Twist Copper Wire Bunching Machine 630 Bobbin Computer Control
Gear Single Twist Copper Wire Bunching Machine 630 Bobbin Computer Control Gear Single Twist Copper Wire Bunching Machine 630 Bobbin Computer Control Gear Single Twist Copper Wire Bunching Machine 630 Bobbin Computer Control Gear Single Twist Copper Wire Bunching Machine 630 Bobbin Computer Control

Large Image :  Gear Single Twist Copper Wire Bunching Machine 630 Bobbin Computer Control

Product Details:
Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: ISO9001:2008
Model Number: FC-630-1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD21000
Packaging Details: normal packing
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 20SET/PER MONTH

Gear Single Twist Copper Wire Bunching Machine 630 Bobbin Computer Control

Description
Color: Sky Blue/apple Green Fit For Bobbin: Diameter 800mm
Wire: PE/PVC Core Wire Or Copper Wire Fit For Wire: Dia0.6mm-3.0mm
Max Speed: 500rpm Direction Of Lay: Righ Or Left
Pitch: 30-200 Max Twist Diameter: 16mm
Type: Computer
High Light:

electric wire manufacturing machine

,

electric wire making machine

Gear Single Twist Copper Wire Bunching Machine 630 Bobbin Computer Control





Quick Details:



Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.

Series for 630 gear type single twist (cable laying) machine



Characteristics:



It is mainly used in cable laying of computer wires, such as data cable and control cable. It may synchronize central coil tapping and side coil tapping. The entire machine is consists of pay off rack, central  bundler, side pay off rack for the central coil tapping set, single twist(cable-laying)machine and electrical control cabinet.



Specifications:



Equipment models FC-500B FC-650B FC-650C FC-800B
Twisting usage Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm) 0.08-0.45 0.15-1.04 0.12-0.52 0.38-1.70
Stranding section area (mm²) 0.05-2.5 0.35-6.0 0.30-4.0 1.0-16
Core wire single wire dia(mm) 0.5-1.5 0.5-3.0 0.5-2.0 1.0-4.0
Core wire stranding outer dia(mm) 1.0-3.5 1.0-6.0 1.0-4.0 2.0-8.0
Pitch(mm) 6.3-52.3(24classes) 11.6-100(34classes) 11.6-100(34classes) 23-147(20classes)
Direction of lay Optional for right or left
Outer dia*bore*outer width OD500 ID56 H375 OD630 ID56 H475

OD630 ID56 H475

OD630 ID127 H475

OD800 ID80 H600



Max rotating speed 3000rpm(6000twist) 2000rpm(4000twist) 2400rpm(4800twist) 1500rpm(3000twist)
Main motor power 5.5KW 7.5KW 11KW 15KW
Inverter power 5.5KW 7.5KW 11KW 15KW
Tension control method Touch screen +PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin
Magnetic powder clutch 1.2kgf 5kgf 2.5kgf 10kgf
Protection

automatically brake/stop 1)wire inside and outside is broken

2)the preset length is arrived

Brake mode Electromagnetic brake
Traversing method Rolling wire with ring drive units, winding pitch and breadth are adjustable
Operation mode Touch screen operation
Dimension(mm) 2680L 1250W 1500H 3300L 1550W 1800H 3300L 1550w 1800H 4600L 2000W 2000H



Other Information


FOB SHANGHAI

Payment

TT, L/C

Delivery

FOB Shanghai/Ningbo

Origin

China

Minimum Order

1 set

Package

with container
