Product Details:
|
| Color: | Sky Blue | Pay Off Bobbin: | Diameter 630/800/1000mm |
|---|---|---|---|
| Fit For Wire: | Automotive Wire | Wire: | Enamelled Wire/glazed Wire/insulated Wire |
| Monitor: | LCD Monitor | Screw Dia: | 70 |
| Plastic Material: | PVC.PE | ||
| High Light: | wire extrusion machine,wire stranding machine |
||

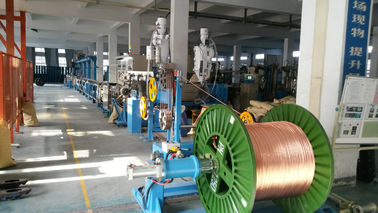

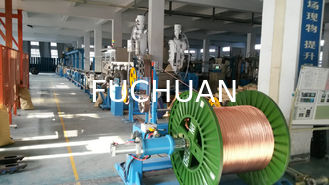

FC-70+40 automotive Wire Screw Extruder Machine 500M/min for 1-6 square meter
Quick Details:
PVC PE wire insulated and sheathing
Usage:
It is applied to extrude the PVC,PE and other plastic material for the automotive wire insulated and sheathing produced.
Characteristics:
Specification:
| Model | FC-50 | FC-60 | FC-70+45 | FC-80 |
| Screw Diameter | Φ50 | Φ60 | Φ70 | Φ80 |
| Screw L/D Ratio | 26:1 | 26:1 | 26:1 | 25:1 |
| Feed wire type | Active pay off or tension pay off | |||
| Max speed(m/min) | 300 | 300 | 300 | 200 |
| Extrusion output | 70 | 100 | 150 | 200 |
| Power for main machine(KW) | 15 | 18.5 | 30 | 37 |
| Wire diameter | Φ0.6-4.0 | Φ0.8-8.0 | Φ1.5-12 | Φ5.0-20 |
| Max accumulator length(m) | 220 | |||
| Accumulator | Horizonal accumulator | |||
| Cooling channel | Folding W type or U type | |||
| Capstan diameter | Φ410 | Φ410 | Φ510 | Φ610 |
| Capstan power | 3.7KW | 3.7KW | 5.5KW | 7.5KW |
| Take up power | 3.7KW | 5.0KW | 7.5KW | 3.7KW reduction motor |
| Take up type | Double shaft take-up | |||
