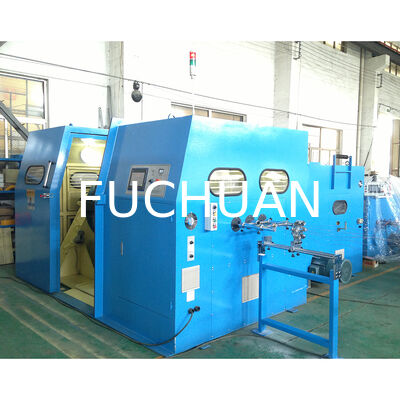

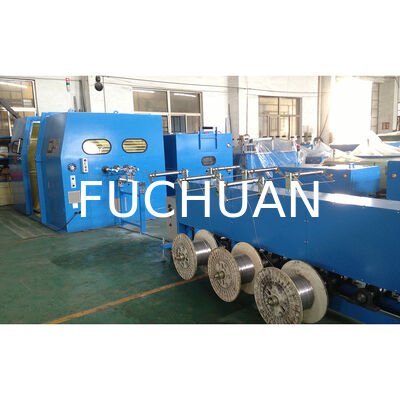

Stranding Area 1.0-10.0mm2 Copper Wire Bunching Machine Featuring Air Cooling System and PLC Control Pitch Control for Wire Processing

Product Description:

The Copper Wire Bundling Machine is an advanced piece of industrial equipment designed to efficiently bundle, interweave, and combine copper wires with precision and reliability. This machine is essential for manufacturers and industries that require high-quality copper wire processing, ensuring that wires are twisted and combined in a manner that meets stringent industry standards. It stands out as a versatile solution, also known as a Copper Wire Interweaving Machine or Copper Wire Combining Machine, making it an indispensable tool in wire production and processing facilities.

One of the key features of this Copper Wire Bundling Machine is its robust dimensions, measuring 2500 mm in length, 1200 mm in width, and 1600 mm in height. These dimensions provide a stable and spacious framework that facilitates smooth operation and easy handling during the wire bundling process. The size ensures that the machine can accommodate various wire gauges and bundle sizes, catering to a broad spectrum of industrial applications.

Powering the machine is a total power capacity of 22 kW, which delivers ample energy to drive the high-speed twisting and bundling mechanisms. This power rating guarantees consistent performance even during prolonged operation, making the Copper Wire Interweaving Machine highly efficient and reliable for continuous production environments. The machine’s motor and drive system are engineered to optimize energy consumption while maintaining peak operational output.

Operating at a speed of 1400 RPM, the Copper Wire Combining Machine offers rapid processing capability without compromising the quality of the wire bundles. The high operating speed ensures that production targets can be met within tight deadlines, enhancing overall productivity. Moreover, the speed is carefully calibrated to maintain the integrity of the copper wires, preventing damage or deformation during the twisting and combining processes.

A distinctive feature of this Copper Wire Bundling Machine is its ability to twist wires in both left and right directions. This bidirectional twisting capability provides greater flexibility in wire bundling configurations and improves the strength and stability of the final wire bundles. By accommodating both twisting directions, the machine can produce bundles that are better suited for diverse applications, ranging from electrical wiring to specialized copper wire assemblies.

The machine is equipped with a Pay Off Bobbin with a diameter of 800 mm, which facilitates the smooth unwinding of copper wire during the bundling process. The large diameter of the bobbin ensures minimal wire tension and reduces the risk of wire breakage or entanglement. This feature enhances the overall efficiency of the Copper Wire Interweaving Machine, allowing for seamless wire feeding and continuous operation.

In summary, the Copper Wire Bundling Machine is a highly capable and versatile piece of equipment designed to meet the demanding needs of the copper wire manufacturing industry. With its substantial machine dimensions, powerful 22 kW motor, high operating speed of 1400 RPM, and bidirectional twisting capability, it provides unmatched performance and reliability. The inclusion of a large 800 mm Pay Off Bobbin further supports efficient wire handling and processing. Whether referred to as a Copper Wire Bundling Machine, Copper Wire Interweaving Machine, or Copper Wire Combining Machine, this equipment is engineered to deliver superior results, making it an excellent investment for businesses focused on copper wire production and assembly.

Features:

• Product Name: Copper Wire Bunching Machine
• Also known as Copper Wire Intertwining Machine, Copper Wire Interconnecting Machine, and Copper Wire Combining Machine
• Magnetic Powder Clutch: 2.5kgf for precise torque control
• Machine Dimensions: 2500 X 1200 X 1600 mm
• Machine Weight: 5500 Kg ensuring robust construction
• Pay Off Bobbin Diameter: 800 mm for handling large wire coils
• Power Source: Electricity for efficient and consistent operation

Technical Parameters:

Applications:

The Fuchuan FC-801C Copper Wire Bunching Machine is an advanced and highly efficient piece of equipment designed specifically for the intertwining, stranding, and bundling of copper and nickel wires. With a robust operating speed of 1400 RPM and the capability to handle wire sizes ranging from 1.0 to 10.0 mm², this machine is ideal for a variety of industrial applications where precision and reliability are paramount. Its compact dimensions of 2500 x 1200 x 1600 mm make it suitable for integration into existing production lines without occupying excessive space.

This Copper Wire Intertwining Machine is widely used in electrical manufacturing plants, cable production facilities, and electronic component factories. It excels in scenarios where multiple strands of copper or nickel wire need to be twisted together with a double twist to form a strong, cohesive bundle that ensures excellent conductivity and mechanical strength. The FC-801C is certified with CE and UL standards, underscoring its safety and quality compliance, which makes it suitable for global markets requiring certified equipment.

In addition to its primary function as a Copper Wire Stranding Machine, the FC-801C also operates efficiently as a Copper Wire Bundling Machine. It can be employed in the production of electrical wiring harnesses, power cables, and communication cables, where precise wire bunching is crucial to product performance. The machine’s high supply ability of 150 sets per month guarantees that manufacturers can meet large-scale production demands without delay.

The packaging of the FC-801C on sturdy wooden pallets ensures safe transportation from its place of origin in China to any destination worldwide. With a delivery time of 60 days and flexible payment terms requiring 30% as a deposit and 70% before shipment, this machine offers both convenience and reliability for buyers. The minimum order quantity of just one unit makes it accessible for small to large enterprises looking to upgrade or expand their wire processing capabilities.

Overall, the Fuchuan FC-801C Copper Wire Bunching Machine is an essential asset for industries involved in cable manufacturing and wire processing. Its advanced design, operating efficiency, and versatility make it the preferred choice when high-quality copper wire intertwining, stranding, and bundling are required. Whether used for small-scale production or large-volume manufacturing, this machine delivers consistent performance and exceptional value.

Customization:

Introducing the Fuchuan FC-801C Copper Wire Bunching Machine, a high-quality Copper Wire Interconnecting Machine designed and manufactured in China. This advanced Copper Wire Interweaving Machine is CE and UL certified, ensuring reliable performance and safety standards. With a supply ability of 150 sets per month, we can accommodate your production needs efficiently.

The FC-801C model supports a twisted outer diameter ranging from 1.0 to 4.0mm and a stranding area of 1.0 to 10.0mm², making it ideal for processing nickel wire and copper wire types. Powered by electricity and operating at a speed of 1400 RPM, this Copper Wire Interconnecting Machine delivers consistent and precise bunching for your wire manufacturing processes.

We offer this machine at a competitive price range of $40,000 to $42,000, with a minimum order quantity of just one set. Packaging is secured with sturdy wooden pallets to ensure safe delivery. The estimated delivery time is 60 days, with payment terms set at 30% deposit and 70% before shipment.

Choose the Fuchuan FC-801C Copper Wire Bunching Machine for efficient, reliable, and high-speed wire interconnecting and interweaving solutions tailored to your business needs.

Support and Services:

Our Copper Wire Bunching Machine is designed to provide efficient and reliable performance for bundling copper wires with precision and ease. We offer comprehensive technical support and services to ensure optimal operation and maintenance of your machine.

Technical Support includes installation guidance, operational training, troubleshooting assistance, and routine maintenance advice. Our expert team is available to help you understand machine functions, optimize settings, and resolve any technical issues that may arise during the machine’s lifecycle.

In addition to support, we provide a range of services such as preventive maintenance programs, spare parts supply, and upgrade options to enhance machine performance and longevity. Our goal is to minimize downtime and maximize productivity for your copper wire bunching operations.

We recommend regular inspections and timely servicing to maintain the machine’s efficiency and ensure safety standards are upheld. Detailed user manuals and maintenance guides are provided to assist your technical staff in routine care and troubleshooting.

By choosing our Copper Wire Bunching Machine and support services, you benefit from our commitment to quality, reliability, and customer satisfaction throughout your product’s lifecycle.

Packing and Shipping:

Our Copper Wire Bunching Machine is carefully packaged to ensure it reaches you in perfect condition. The machine is securely wrapped with protective materials and placed inside a sturdy wooden crate to prevent any damage during transit. All components are cushioned to avoid movement and impact.

For shipping, we offer multiple options including sea freight, air freight, and express courier services, depending on your location and urgency. Each shipment is tracked and handled by experienced logistics partners to guarantee timely and safe delivery.

Before dispatch, the Copper Wire Bunching Machine undergoes a thorough inspection and testing process to ensure it meets quality standards. We also provide comprehensive documentation, including user manuals and warranty information, with every package.

Please contact our sales team for detailed shipping schedules, costs, and any special packaging requests you may have.

FAQ:

Q1: What is the brand and model number of the Copper Wire Bunching Machine?

A1: The Copper Wire Bunching Machine is manufactured by Fuchuan, and the model number is FC-801C.

Q2: Where is the Copper Wire Bunching Machine made?

A2: This machine is made in China.

Q3: What certifications does the Copper Wire Bunching Machine have?

A3: The machine is certified with CE and UL standards.

Q4: What is the price range and minimum order quantity for this machine?

A4: The price ranges from $40,000 to $42,000, and the minimum order quantity is 1 set.

Q5: What are the payment terms and delivery time for the Copper Wire Bunching Machine?

A5: The payment terms are 30% as deposit and 70% before shipment. The delivery time is approximately 60 days.
