50 Heads Set Copper Wire Bunching Machine Supporting Wire Diameter 012 to 045 Millimeters Alongside Two Pressing Devices

Product Description:

The Copper Wire Bunching Machine is an advanced and versatile piece of equipment designed specifically for the efficient processing of copper wires. This machine excels in producing high-quality copper wire bunches with precise control over various parameters, making it an essential tool in industries that require copper wire stranding, intertwining, and interlacing. With its robust design and cutting-edge technology, this machine ensures superior performance and reliability for a wide range of applications.

One of the standout features of this Copper Wire Bunching Machine is its capability to handle copper wires with diameters ranging from 0.12mm to 0.45mm. This wide wire diameter range allows it to accommodate different wire sizes, providing flexibility for manufacturers to produce various wire bunch configurations. Whether you are working on thin copper wires for delicate electrical components or thicker wires for more heavy-duty applications, this machine delivers consistent results every time.

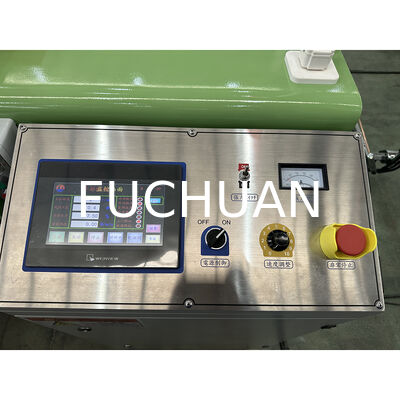

Equipped with a 7-inch WEINVIEW touch screen, the machine offers an intuitive and user-friendly interface that simplifies operation and monitoring. The touch screen enables operators to easily input settings, monitor real-time data, and make adjustments quickly, reducing downtime and increasing productivity. This advanced human-machine interface (HMI) enhances the overall user experience and ensures precise control over the bunching process.

Another critical attribute of this Copper Wire Bunching Machine is its adjustable pitch feature. The pitch, which refers to the distance between the wire strands, can be finely tuned to meet specific requirements. This adjustability is crucial for achieving the desired wire bunch configuration, whether for electrical conductivity, flexibility, or mechanical strength. The ability to customize the pitch ensures that the machine can cater to diverse industry needs, from automotive wiring harnesses to telecommunications cables.

The machine is designed to handle cross sections ranging from 0.22mm² to 2.5mm². This specification indicates the machine's versatility in processing wires with different cross-sectional areas, which directly impacts the current-carrying capacity of the wire bunch. Manufacturers can rely on this machine to produce copper wire bunches that meet stringent industry standards, ensuring optimal performance in their final applications.

Pitch control is managed through a sophisticated PLC (Programmable Logic Controller) system, which guarantees precise and consistent adjustments during operation. The PLC control system enhances automation and accuracy, reducing human error and increasing the repeatability of the wire bunching process. This feature is particularly beneficial in high-volume production environments where consistency and quality are paramount.

In addition to its core functionalities, this machine is often referred to as a Copper Wire Stranding Machine, Copper Wire Intertwining Machine, and Copper Wire Interlacing Machine, highlighting its multifaceted capabilities. Whether the task involves stranding multiple wires together for enhanced electrical properties, intertwining wires to increase flexibility, or interlacing wires for improved mechanical strength, this machine performs all these functions with exceptional efficiency.

Overall, the Copper Wire Bunching Machine represents a perfect blend of precision engineering, advanced technology, and user-centric design. Its ability to process a broad range of wire diameters and cross sections, combined with adjustable pitch and PLC-controlled pitch management, makes it a highly adaptable solution for modern copper wire manufacturing. The inclusion of a 7-inch WEINVIEW touch screen further enhances operational ease and control, making it an indispensable asset for any facility focused on copper wire production.

By investing in this Copper Wire Bunching Machine, manufacturers gain a reliable partner capable of producing high-quality wire bunches tailored to their exact specifications. Its multifunctional nature as a Copper Wire Stranding Machine, Copper Wire Intertwining Machine, and Copper Wire Interlacing Machine ensures that it meets the evolving demands of various industries, delivering consistent performance and exceptional value over time.

Features:

• Product Name: Copper Wire Bunching Machine
• Main Wire Diameter: 0.16mm, 0.2mm, 0.3mm
• Number of Heads: 50 Heads per set
• Twisted Wire Diameter Range: 0.7mm to 2.05mm
• Adjustable Pitch for precise wire bunching
• Cross Section Capacity: 0.22mm² to 2.5mm²
• Functions as a Copper Wire Interweaving Machine for efficient wire processing
• Operates as a Copper Wire Twisting Machine to produce tightly twisted wire bundles
• Also serves as a Copper Wire Grouping Machine to organize wires effectively

Technical Parameters:

Applications:

The Fuchuan FC-650C-2 Copper Wire Bunching Machine is an advanced and reliable solution designed for various industrial applications involving copper wire processing. As a high-performance Copper Wire Interconnecting Machine, it is widely used in manufacturing sectors where precise twisting and bunching of copper wires are essential. Its capability to handle wire diameters ranging from 0.12mm to 0.45mm and produce twisted wire diameters between 0.7mm and 2.05mm makes it an ideal choice for producing high-quality wire harnesses, electrical cables, and other copper wire assemblies.

This Copper Wire Interlacing Machine is perfectly suited for industries such as automotive, electronics, telecommunications, and electrical equipment manufacturing. It is frequently employed in the production of interconnecting wires used in circuit boards, transformers, motors, and power supply units. The machine’s user-friendly controls and a 7-inch WEINVIEW touch screen interface ensure smooth operation and easy adjustments, allowing operators to customize the twist direction (S or Z) according to specific production requirements.

Additionally, the FC-650C-2 serves as a versatile Copper Wire Twisting Machine, capable of delivering consistent and uniform twisting performance, which enhances the mechanical strength and electrical conductivity of the copper wire products. Its CE and UL certifications guarantee compliance with international quality and safety standards, making it a trustworthy investment for manufacturers seeking to improve production efficiency and product quality.

With a supply ability of 150 sets per month and a delivery time of 45 days, this machine meets the demands of both small-scale and large-scale production environments. The Fuchuan FC-650C-2 comes neatly packaged on a wooden pallet to ensure safe transportation. The flexible payment terms, requiring a 30% deposit and 70% payment before shipment, along with a competitive price range of $28,000 to $32,000, make it an accessible choice for businesses aiming to enhance their copper wire twisting and bunching operations.

Support and Services:

Our Copper Wire Bunching Machine is designed to provide efficient and reliable performance for bundling multiple copper wires into a single cohesive unit. To ensure optimal operation, regular maintenance and proper handling are essential.

Technical Support:

We offer comprehensive technical support to assist with installation, operation, and troubleshooting of the Copper Wire Bunching Machine. Our team of experts is available to provide guidance on machine setup, calibration, and optimization to meet your specific production requirements.

Maintenance Services:

Regular maintenance is crucial for the longevity and performance of the machine. We provide detailed maintenance schedules and service plans, including lubrication, inspection, and replacement of worn parts. Our maintenance services help minimize downtime and extend the operational life of your equipment.

Spare Parts and Upgrades:

We supply genuine spare parts to ensure compatibility and durability. Additionally, we offer upgrade options to enhance the machine’s capabilities and integrate the latest technological advancements, improving efficiency and output quality.

Training and Documentation:

To maximize the benefits of the Copper Wire Bunching Machine, we provide comprehensive training sessions for operators and maintenance personnel. Detailed user manuals and technical documentation are also available to support effective machine use and upkeep.

Warranty and Service Agreements:

Our Copper Wire Bunching Machines come with a standard warranty covering manufacturing defects. Extended service agreements are available for ongoing support, including priority repairs and preventive maintenance visits.

For further assistance, please refer to the user manual or contact your local service representative.

Packing and Shipping:

Our Copper Wire Bunching Machine is carefully packaged to ensure it reaches you in perfect condition. The machine is securely wrapped with protective materials and placed inside a sturdy wooden crate to prevent any damage during transit. All components are cushioned to avoid movement and impact.

For shipping, we offer various options including sea freight, air freight, and express delivery, depending on your location and urgency. The packaging is designed to comply with international shipping standards, ensuring safe and efficient delivery to your doorstep.

Before shipment, each machine undergoes thorough inspection and testing to guarantee quality and performance. Detailed instructions and necessary accessories are included in the package for easy installation and operation.

FAQ:

Q1: What is the brand and model number of the Copper Wire Bunching Machine?

A1: The Copper Wire Bunching Machine is branded Fuchuan, and the model number is FC-650C-2.

Q2: Where is the Copper Wire Bunching Machine manufactured?

A2: The machine is manufactured in China.

Q3: What certifications does this Copper Wire Bunching Machine have?

A3: The machine is CE and UL certified, ensuring it meets international safety and quality standards.

Q4: What is the minimum order quantity and price range for this machine?

A4: The minimum order quantity is 1 set, and the price range is between $28,000 and $32,000.

Q5: What are the delivery time and payment terms for purchasing this machine?

A5: The delivery time is approximately 45 days. Payment terms are 30% as deposit and 70% before shipment.

Q6: How is the machine packaged for shipment?

A6: The Copper Wire Bunching Machine is securely packaged on a wooden pallet to ensure safe delivery.

Q7: What is the monthly supply capacity for this machine?

A7: The supplier can produce and supply up to 150 sets per month.
