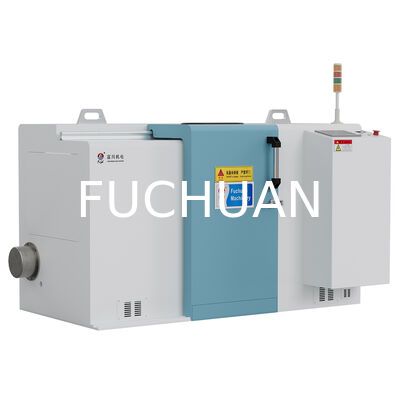

Two Pressing Devices Copper Wire Bundling Machine with S or Z Twist Direction Providing and Wire Bundle Formation

Product Description:

The Copper Wire Bunching Machine is a highly advanced and efficient piece of equipment designed to meet the demanding needs of industries involved in wire processing and manufacturing. This machine is specifically engineered for bundling and bunching copper wires, ensuring precision, consistency, and high productivity. It serves as an essential tool in the production lines where copper wire harnessing is required, making it a reliable solution for various applications including electrical wiring, automotive wiring systems, and communication cables.

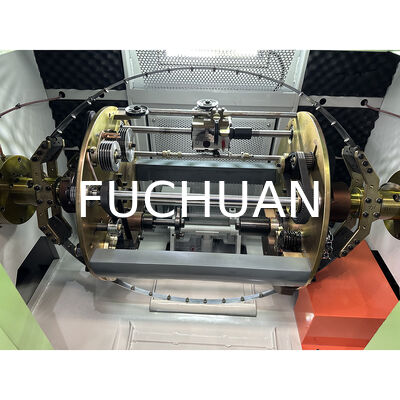

One of the standout features of this Copper Wire Bunching Machine is its incorporation of two pressing devices. These pressing devices work simultaneously to ensure that the copper wires are tightly bundled and securely pressed together, significantly improving the quality and uniformity of the wire bunches. This dual pressing mechanism enhances the overall efficiency of the machine, reducing the chances of wire slippage or misalignment during the bunching process. The pressing devices are designed to handle wires delicately yet firmly, which helps in maintaining the integrity and conductivity of the copper wires.

The machine offers an adjustable pitch feature, which allows operators to customize the spacing between wire bunches according to specific requirements. This flexibility in pitch adjustment is crucial for different wire specifications and customer needs, enabling the Copper Wire Bunching Machine to adapt to a wide range of wire sizes and applications. The adjustable pitch ensures that the final product meets precise dimensional standards, which is essential for the subsequent processes in wire harnessing and assembly.

In addition to pitch adjustability, the machine supports both S and Z twist directions. This capability allows the wires to be twisted in either direction depending on the desired configuration or industry standards. The choice between S or Z twist provides versatility in production, accommodating various wiring designs and enhancing the mechanical properties of the wire bundles. This feature is particularly beneficial for manufacturers who need to cater to diverse markets or customize their wire products for specific uses.

The Copper Wire Bunching Machine is equipped with 50 heads per set, making it capable of processing a large number of wires simultaneously. This high number of heads significantly boosts productivity by allowing multiple wire bunches to be formed in one operation. The multi-head design ensures uniform twisting and bunching across all wires, contributing to consistent product quality and reducing the cycle time for each production batch. This makes the machine ideal for large-scale manufacturing environments where speed and accuracy are paramount.

Control and precision are further enhanced by the PLC (Programmable Logic Controller) control system integrated into the machine. The PLC control enables automated pitch control, ensuring that every wire bunch is processed with exact spacing and tension. This automation minimizes human error, increases repeatability, and allows for easy adjustments and monitoring during operation. The intuitive PLC interface provides operators with real-time data and control options, streamlining the production process and improving overall efficiency.

In summary, the Copper Wire Bunching Machine combines advanced technology with user-friendly features to deliver outstanding performance in copper wire processing. Its dual pressing devices, adjustable pitch, S or Z twist direction options, and large number of heads make it a versatile and powerful tool for wire bunching applications. The PLC-controlled pitch adjustment further enhances its precision and ease of use, making it an indispensable asset for manufacturers.

This machine is also recognized as a Copper Wire Wrapping Machine, Copper Wire Interconnecting Machine, and Copper Wire Combining Machine, highlighting its multifunctional capabilities in wire processing industries. Whether you need to wrap, interconnect, or combine copper wires, this machine provides a robust and reliable solution, ensuring high-quality output that meets industrial standards and customer expectations.

Features:

• Product Name: Copper Wire Bunching Machine
• Also known as Copper Wire Interconnecting Machine and Copper Wire Combining Machine
• Number of Heads: 50 Heads/set for efficient wire processing
• Pitch Control: Advanced PLC Control for precise wire bunching
• Main Wire Diameter: Suitable for 0.16mm, 0.2mm, and 0.3mm copper wires
• Power: 11kW motor ensuring stable and powerful operation
• Cross Section Range: Supports wire cross sections from 0.22 to 2.5mm²

Technical Parameters:

Applications:

The Fuchuan FC-650C-2 Copper Wire Bunching Machine is an advanced and reliable solution designed specifically for various copper wire processing needs. As a high-performance Copper Wire Grouping Machine, it excels in efficiently grouping and bunching multiple copper wires into precise and uniform bundles, making it ideal for manufacturing electrical cables and wiring harnesses. With its CE and UL certifications, this machine guarantees safety, quality, and compliance with international standards, making it a trusted choice for factories and production lines worldwide.

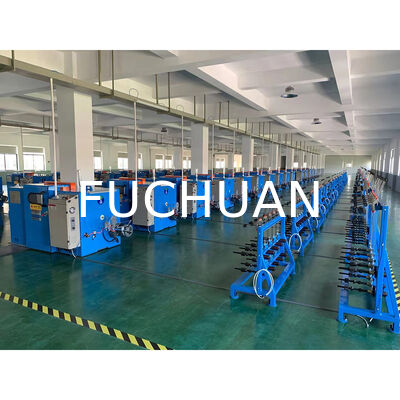

One of the primary application occasions for the FC-650C-2 is in industrial cable manufacturing plants where consistent and high-speed copper wire processing is essential. Thanks to its powerful 11kW motor and dual pressing devices, the machine can handle large volumes of copper wires, ensuring stable operation and high productivity. The machine’s PLC-controlled pitch adjustment and the ability to twist wires in either S or Z direction provide great flexibility, accommodating different wire specifications and customer requirements.

Moreover, the FC-650C-2 serves as an excellent Copper Wire Wrapping Machine, capable of tightly intertwining copper strands to enhance the mechanical strength and electrical performance of cables. Its 7-inch WEINVIEW touch screen interface simplifies operation, allowing operators to easily set parameters and monitor the process in real-time. This feature is particularly beneficial in scenarios where precision and repeatability are critical, such as in the production of multi-core cables and specialized wiring assemblies.

In addition to its role in grouping and wrapping, the FC-650C-2 functions effectively as a Copper Wire Interweaving Machine, enabling the intricate interlacing of copper wires required for certain complex cable designs. This makes it highly suitable for use in sectors such as automotive wiring, telecommunications, and power distribution, where high-quality copper wire bundles are essential.

Originating from China and available with a minimum order quantity of just one unit, the FC-650C-2 is competitively priced between $28,000 and $32,000, packaged securely on wooden pallets for safe delivery within 45 days. With a supply capacity of 150 sets per month and flexible payment terms (30% deposit and 70% before shipment), Fuchuan ensures reliable and customer-friendly service. Whether applied in large-scale production facilities or specialized workshops, this Copper Wire Bunching Machine offers unparalleled efficiency and precision for all copper wire processing occasions and scenarios.

Support and Services:

Our Copper Wire Bunching Machine is designed to efficiently bundle multiple copper wires into a compact, organized form, enhancing the quality and handling of copper cables. We provide comprehensive technical support and services to ensure optimal performance and longevity of your machine.

Technical Support:

Our expert technical team is available to assist with installation, setup, and troubleshooting of the Copper Wire Bunching Machine. We offer detailed user manuals and operational guidelines to help you understand the machine’s features and maintenance requirements. Remote diagnostics and on-site assistance are available to quickly resolve any technical issues.

Maintenance Services:

Regular maintenance is crucial for the smooth operation of the Copper Wire Bunching Machine. We provide scheduled maintenance services including inspection, cleaning, lubrication, and parts replacement. Our technicians ensure that all components are functioning correctly and efficiently to prevent downtime and extend machine life.

Training and Consultation:

We offer training programs for your staff to maximize the use of the Copper Wire Bunching Machine. Our training covers machine operation, safety procedures, and basic troubleshooting. Additionally, we provide consultation services to optimize your production process and integrate the machine effectively into your workflow.

Spare Parts and Upgrades:

Genuine spare parts and upgrade kits are available to maintain the quality and performance of your Copper Wire Bunching Machine. We recommend using only authorized parts to ensure compatibility and reliability. Upgrade options are provided to enhance machine capabilities and adapt to evolving production needs.

Warranty and Service Agreements:

The Copper Wire Bunching Machine comes with a standard warranty covering manufacturing defects and performance issues. Extended service agreements can be arranged for ongoing support, priority service, and cost-effective maintenance solutions tailored to your business requirements.

Our commitment is to provide you with reliable, efficient, and timely support to maximize the productivity and lifespan of your Copper Wire Bunching Machine.

Packing and Shipping:

Our Copper Wire Bunching Machine is carefully packaged to ensure maximum protection during transit. Each machine is securely wrapped with protective materials and placed in a sturdy wooden crate to prevent any damage from shocks or vibrations.

We use high-quality packaging materials that are environmentally friendly and designed to withstand long-distance shipping. The crates are labeled clearly with handling instructions to ensure safe delivery.

For shipping, we offer multiple options including sea freight, air freight, and express courier services depending on your requirements. Our logistics team coordinates closely with reliable carriers to provide timely and efficient delivery worldwide.

Before shipment, each Copper Wire Bunching Machine undergoes thorough inspection and testing to guarantee it meets all quality standards. We also provide all necessary documentation, including user manuals, warranty cards, and shipping certificates.

Customer satisfaction is our priority, so we ensure that your Copper Wire Bunching Machine arrives safely and ready for immediate installation and use.

FAQ:

Q1: What is the brand and model number of the Copper Wire Bunching Machine?

A1: The Copper Wire Bunching Machine is manufactured by Fuchuan, and the model number is FC-650C-2.

Q2: Where is the Copper Wire Bunching Machine made?

A2: This machine is made in China.

Q3: What certifications does the Copper Wire Bunching Machine have?

A3: The machine is certified with CE and UL certifications.

Q4: What is the price range and minimum order quantity for this machine?

A4: The price ranges from $28,000 to $32,000, and the minimum order quantity is 1 unit.

Q5: How long does it take to deliver the Copper Wire Bunching Machine after placing an order?

A5: The delivery time is approximately 45 days after the order is confirmed.

Q6: What are the payment terms for purchasing the Copper Wire Bunching Machine?

A6: The payment terms are 30% as deposit and 70% before shipment.

Q7: How is the Copper Wire Bunching Machine packaged for shipping?

A7: The machine is securely packaged using a wooden pallet to ensure safe transportation.

Q8: What is the monthly supply capacity for the FC-650C-2 Copper Wire Bunching Machine?

A8: The supply ability is 150 sets per month.
