Wirediameterrange 008 Mm 045 Mm Copper Wire Grouping Machine Double Twist Ideal Solution for Wire Harness Assembly Lines

Product Description:

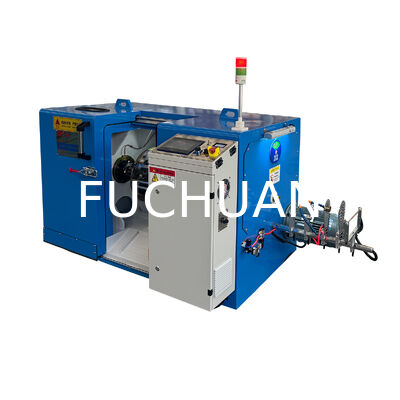

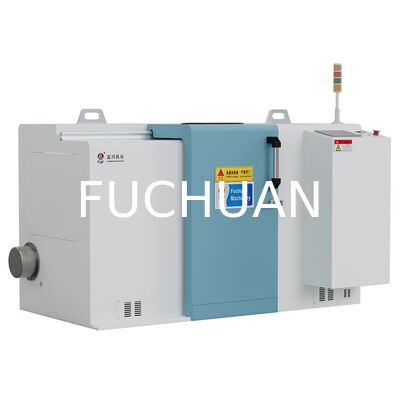

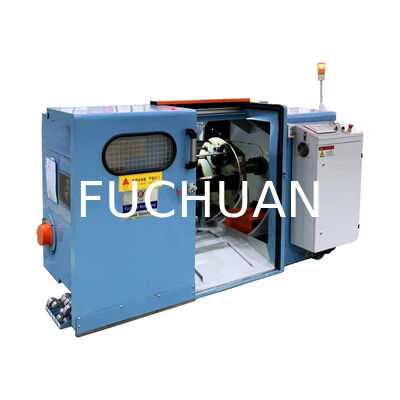

The Copper Wire Bunching Machine is an advanced and highly efficient piece of equipment designed to meet the demanding needs of the wire processing industry. This machine is specifically engineered for the precise combining, wrapping, and grouping of copper wires, making it an essential tool for manufacturers looking to enhance their production quality and efficiency. Known alternatively as the Copper Wire Combining Machine, Copper Wire Wrapping Machine, and Copper Wire Grouping Machine, it offers versatility and superior performance in one integrated system.

One of the standout features of this Copper Wire Bunching Machine is its ability to handle both S and Z stranding directions, catering to various industrial requirements. The stranding direction, whether S or Z, is crucial in determining the final properties of the wire bundle, and this machine allows users to select the direction that best suits their application. This flexibility ensures that manufacturers can produce wire bundles that meet specific mechanical and electrical standards, improving product reliability and functionality.

The control system of this machine is designed to offer ease of use and precision. It is available with two types of control: computer control and knob control. The computer control option provides advanced automation capabilities, allowing operators to program and monitor the entire bunching process with high accuracy. This not only increases productivity but also reduces human error and enhances consistency across production batches. On the other hand, the knob control option offers a more manual approach, giving technicians tactile and immediate control over the machine’s operation. This dual control capability makes the machine suitable for a wide range of users, from large-scale industrial settings to smaller workshops.

In addition to the stranding direction, the twist direction of the wires is also selectable between S and Z, providing further customization options. This feature is particularly important for applications where the direction of twist affects the mechanical strength and electrical conductivity of the final wire product. By allowing the twist direction to be chosen according to specific needs, the Copper Wire Bunching Machine ensures that the wire bundles produced are optimized for their intended use.

The twist type employed by the machine is the compacted twist, which is a significant advancement over traditional wire twisting methods. Compacted twisting not only increases the density of the wire bundle but also enhances its structural integrity and reduces the overall diameter of the cable. This results in better conductivity and improved mechanical performance, making the copper wire bundles more durable and efficient. The compacted twist technique also contributes to saving space and materials, which can lead to cost reductions in the manufacturing process.

Operating at a voltage of 380V, the Copper Wire Bunching Machine is built to handle industrial power requirements safely and efficiently. The machine’s robust electrical design ensures stable operation under continuous use, minimizing downtime and maintenance costs. This voltage specification also aligns with common industrial power supplies, making it easy to integrate into existing production lines without the need for extensive electrical modifications.

Overall, the Copper Wire Bunching Machine stands out as a versatile and reliable solution for copper wire processing. Whether you refer to it as a Copper Wire Combining Machine, Copper Wire Wrapping Machine, or Copper Wire Grouping Machine, its advanced features such as selectable S/Z stranding and twist directions, compacted twist technology, dual control options, and 380V operation voltage make it an indispensable asset in wire manufacturing. Investing in this machine means enhancing your production capabilities, improving product quality, and achieving greater operational efficiency in the competitive wire industry.

Features:

• Product Name: Copper Wire Bunching Machine
• Stranding Direction: S/Z
• Maximum Speed: 2600rpm
• Function: Combining and Twisting
• Control Type: Computer Control or Knob Control
• Twist: Double Twist
• Also known as Copper Wire Stranding Machine
• Functions as a Copper Wire Bundling Machine
• Operates as a Copper Wire Interconnecting Machine

Technical Parameters:

Applications:

The Fuchuan FC-500B Copper Wire Bunching Machine is an advanced piece of equipment designed to meet the needs of industries requiring precise and efficient copper wire processing. Originating from China and certified with CE and UL standards, this machine guarantees high quality and reliability. With a supply ability of 150 sets per month and a delivery time of 45 days, it is an ideal choice for manufacturers looking to optimize their production line without compromising on quality.

The FC-500B model is specifically engineered as a Copper Wire Interweaving Machine and Copper Wire Grouping Machine, making it perfect for applications in electrical cable manufacturing, telecommunications, and electronic component industries. Its capability to handle wire diameter ranges from 0.08 mm to 0.45 mm ensures versatility in processing various copper wire sizes, catering to different product specifications and industry standards.

This Copper Wire Interweaving Machine features a synchronous belt drive mode that provides smooth and stable operation, reducing wear and maintenance costs. The pitch can be adjustable, allowing operators to customize the bunching process according to specific project requirements. Additionally, the twist direction is selectable between S or Z, offering flexibility in wire twisting patterns to meet diverse application needs.

Ideal for occasions where high precision and consistent quality are paramount, the FC-500B is widely used in factories producing winding wires, magnet wires, and other copper wire-based components. Its robust build and reliable performance make it suitable for continuous production environments where efficiency and accuracy are critical. The machine’s voltage requirement is 380V, fitting well into standard industrial power systems.

With a minimum order quantity of just one set and a price range between $12,000 and $16,000, the Fuchuan FC-500B Copper Wire Bunching Machine offers excellent value for small to medium enterprises aiming to enhance their copper wire processing capabilities. The product is securely packaged on wooden pallets to ensure safe delivery. Payment terms are flexible, with 30% as deposit and 70% before shipment, facilitating convenient procurement for buyers.

Support and Services:

Our Copper Wire Bunching Machine is designed to provide efficient and reliable performance for wire bunching applications. To ensure optimal operation, we offer comprehensive technical support and services.

Our technical support team is available to assist with installation guidance, troubleshooting, and maintenance advice. We provide detailed user manuals and operational training to help users maximize the machine’s capabilities and longevity.

Regular maintenance services are recommended to keep the machine running smoothly. This includes inspection of moving parts, lubrication, and timely replacement of worn components. We also offer spare parts supply to minimize downtime.

For any technical issues or inquiries, our support experts are ready to provide prompt solutions to ensure minimal disruption to your production process.

We are committed to delivering exceptional service and support to help you achieve the best results with your Copper Wire Bunching Machine.

Packing and Shipping:

Our Copper Wire Bunching Machine is carefully packaged to ensure safe delivery and maintain product integrity. Each machine is securely wrapped with protective materials to prevent any damage during transit. The packaging includes a sturdy wooden crate or reinforced cardboard box, depending on the size and weight of the machine, providing robust protection against shocks and vibrations.

For shipping, we utilize reliable freight services that specialize in handling industrial equipment. The machines are shipped with clear labeling and handling instructions to ensure proper care throughout the transportation process. We also offer options for insurance and tracking, giving you peace of mind from dispatch to delivery.

Upon arrival, customers are advised to inspect the packaging for any signs of damage and report any issues immediately. Our dedicated customer support team is available to assist with any shipping or packaging concerns, ensuring a smooth and satisfactory delivery experience.

FAQ:

Q1: What is the brand and model number of the Copper Wire Bunching Machine?

A1: The Copper Wire Bunching Machine is manufactured by Fuchuan, and the model number is FC-500B.

Q2: Where is the Copper Wire Bunching Machine made?

A2: The Copper Wire Bunching Machine is made in China.

Q3: What certifications does the FC-500B Copper Wire Bunching Machine have?

A3: The machine is certified with CE and UL certifications.

Q4: What is the minimum order quantity and price range for the FC-500B?

A4: The minimum order quantity is 1 unit, and the price ranges from $12,000 to $16,000.

Q5: What are the payment terms and delivery time for the Copper Wire Bunching Machine?

A5: The payment terms are 30% as deposit and 70% before shipment. The delivery time is approximately 45 days.

Q6: How is the Copper Wire Bunching Machine packaged for shipment?

A6: The machine is packaged securely on a wooden pallet to ensure safe delivery.

Q7: What is the supply ability of the FC-500B Copper Wire Bunching Machine?

A7: The supply ability is 150 sets per month.
