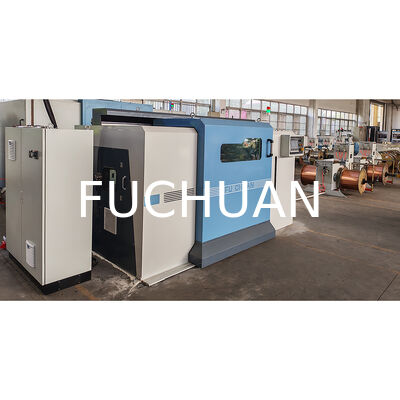

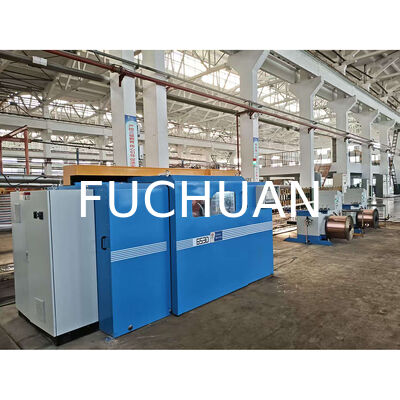

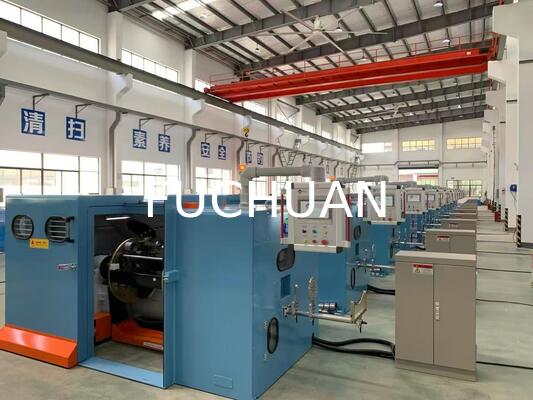

Electricity Copper Wire Bunching Machine Featuring 7 Inches WEINVIEW Touch Screen and DIA 630mm Bobbin Compatibility for Wire Processing

Product Description:

The Copper Wire Bunching Machine is an advanced and efficient piece of equipment designed specifically for the processing and manufacturing of copper wires. This machine, also known as a Copper Wire Interlacing Machine, Copper Wire Stranding Machine, and Copper Wire Intertwining Machine, plays a crucial role in the electrical and electronics industries by producing high-quality stranded copper wires with excellent flexibility and conductivity.

Equipped with a powerful motor ranging from 5 to 15 KW, this Copper Wire Bunching Machine delivers robust performance to handle various wire bunching tasks with precision and reliability. The motor power ensures that the machine can operate smoothly under continuous workloads, making it ideal for large-scale production environments where consistency and efficiency are paramount.

One of the key features of this machine is its strand lay length capability, which ranges from 0.8 mm to 4.0 mm across 14 different classes. This versatility allows manufacturers to produce copper wire strands in multiple configurations to meet diverse application requirements. Whether the need is for fine, tightly strung wires or thicker, more loosely twisted strands, this machine can easily accommodate those specifications, ensuring that the end product meets industry standards and customer expectations.

Designed to work with soft wire types, including flexible wire and insulated wire, the Copper Wire Bunching Machine caters to a wide variety of wire materials and types. The ability to process flexible wires and insulated wires makes it invaluable for producing cables used in telecommunications, power transmission, automotive wiring, and consumer electronics. Its adaptability to different wire types enhances its utility and makes it a versatile tool for manufacturers.

The machine’s dimensions, measuring 3300 mm in length, 1450 mm in width, and 1600 mm in height, provide a compact yet spacious footprint that fits well into most production floors. Despite its relatively moderate size, it offers ample workspace and efficient layout for operators to handle the copper wire bunching process effortlessly. The design optimizes space without compromising on performance or ease of use.

One of the standout features of this Copper Wire Interlacing Machine is its sophisticated pitch control system, which is managed by a Programmable Logic Controller (PLC). The PLC control ensures precise and consistent pitch adjustments during the wire bunching process, enhancing the quality and uniformity of the wire strands produced. This automation significantly reduces human error, increases production speed, and allows for easy customization of wire specifications according to different production needs.

In summary, the Copper Wire Bunching Machine is an essential piece of equipment for any manufacturer involved in copper wire production. Its powerful motor, wide range of strand lay length options, compatibility with various soft wire types, compact dimensions, and advanced PLC pitch control collectively make it an outstanding Copper Wire Stranding Machine. Whether referred to as a Copper Wire Interlacing Machine or a Copper Wire Intertwining Machine, this equipment assures high efficiency, reliability, and precision in producing top-quality stranded copper wires for a multitude of industrial applications.

Features:

• Product Name: Copper Wire Bunching Machine
• Suitable for soft wire including flexible wire and insulated wire
• Compatible spool specifications: φ500mm-φ630mm
• Operating speed ranges from 1800 to 3000 RPM
• Equipped with a 7-inch WEINVIEW touch screen for easy control
• Powered by electricity for efficient operation
• Functions as a Copper Wire Stranding Machine for precise wire assembly
• Acts as a Copper Wire Grouping Machine to organize multiple wires
• Operates as a Copper Wire Intertwining Machine to intertwine wires seamlessly

Technical Parameters:

This Copper Wire Interweaving Machine is designed for efficient and precise operation. The Copper Wire Interweaving Machine features touch screen operation and PLC pitch control, ensuring accurate and reliable performance. As a Copper Wire Twisting Machine, it operates at speeds ranging from 1800 to 3000 RPM, powered by an 11KW motor. The machine includes a 1.2kgf magnetic powder clutch and is supported by a 1-year warranty. Its dimensions are 3300*1450*1600mm with a weight of 1000KG, running on electricity and suitable for processing flexible and insulated soft wires.

Applications:

The Fuchuan Copper Wire Bunching Machine, available in models FC-300B, 400B, 500B, 650B, 800B, 652D, 653D, and 1250C, is an advanced piece of equipment designed specifically for efficient copper wire processing. Originating from China, this robust machine weighs approximately 1000KG and is engineered for high-performance operation with motor power ranging from 5 to 15 KW. Featuring a user-friendly 7 inches WEINVIEW touch screen, it allows precise control and easy monitoring throughout the wire bunching process.

This Copper Wire Grouping Machine is ideal for occasions where precise and consistent wire bunching is required, such as in electrical manufacturing plants, cable production workshops, and wire processing factories. It is perfectly suited for handling soft wire materials including flexible wire and insulated wire, ensuring superior quality and uniformity in the final product. The spool specifications ranging from φ500mm to φ630mm make it versatile enough to accommodate various wire sizes and production demands.

The Copper Wire Twisting Machine functionality is especially beneficial in scenarios where copper wires need to be twisted or intertwined to enhance their electrical performance and mechanical strength. This is crucial in industries producing electrical cables, automotive wiring harnesses, and communication cables. The machine’s ability to interweave wires with precision reduces the risk of wire breakage and enhances conductivity, making it an essential tool in modern wire processing lines.

The Copper Wire Interweaving Machine is also widely used in specialized manufacturing environments where complex wire structures are required. For example, in the production of multi-core cables, power cords, and industrial wiring systems, this machine ensures that each wire strand is perfectly aligned and securely twisted. Its robust construction and advanced control system enable continuous operation with minimal downtime, making it suitable for high-volume production scenarios.

In summary, the Fuchuan Copper Wire Bunching Machine series is indispensable for wire manufacturing industries that demand high precision, reliability, and efficiency. Whether used as a Copper Wire Grouping Machine, Copper Wire Twisting Machine, or Copper Wire Interweaving Machine, its advanced features and versatile capabilities make it an excellent choice for a wide range of application occasions and scenarios.

Support and Services:

Our Copper Wire Bunching Machine is designed to provide efficient and reliable wire bunching solutions for various industrial applications. To ensure optimal performance and longevity of the machine, we offer comprehensive technical support and services.

Technical support includes assistance with installation, setup, and calibration of the machine to meet your specific production requirements. Our team of experts is available to guide you through the operational procedures, troubleshoot any issues, and provide maintenance tips to keep the machine running smoothly.

We also provide detailed user manuals and technical documentation to help you understand the functionalities and safety measures associated with the Copper Wire Bunching Machine. Regular software updates and firmware upgrades are available to enhance machine capabilities and address any identified bugs.

In addition to remote support, we offer on-site service visits for preventive maintenance, repairs, and part replacements to minimize downtime. Our service packages can be customized to fit your operational schedule and production demands.

Training sessions are available for your operators and maintenance personnel to ensure proper handling and efficient use of the machine. We are committed to delivering prompt and effective support to maximize your investment and improve your production efficiency.

Packing and Shipping:

Our Copper Wire Bunching Machine is carefully packaged to ensure it arrives in perfect condition. Each unit is securely wrapped with protective materials and placed inside a sturdy wooden crate to prevent any damage during transit. The packaging is designed to withstand rough handling and environmental factors, ensuring the machine reaches you safely.

For shipping, we offer multiple options including sea freight, air freight, and express courier services depending on your location and urgency. The machine is shipped with all necessary documentation, including a detailed user manual, warranty card, and customs paperwork to facilitate smooth delivery. Tracking information will be provided once the order is dispatched, allowing you to monitor the shipment until it arrives at your specified destination.

FAQ:

Q1: What brand manufactures the Copper Wire Bunching Machine?

A1: The Copper Wire Bunching Machine is manufactured by the brand Fuchuan.

Q2: What are the available model numbers for the Fuchuan Copper Wire Bunching Machine?

A2: The available model numbers include FC-300B, FC-400B, FC-500B, FC-650B, FC-800B, FC-652D, FC-653D, and FC-1250C.

Q3: Where is the Fuchuan Copper Wire Bunching Machine made?

A3: The Fuchuan Copper Wire Bunching Machine is made in China.

Q4: What is the primary use of the Copper Wire Bunching Machine?

A4: The Copper Wire Bunching Machine is primarily used to bunch multiple copper wires into a single cable, improving the organization and conductivity of electrical wiring.

Q5: Are there different sizes or capacities available for this machine?

A5: Yes, the machine comes in various models such as FC-300B up to FC-1250C, each designed to handle different wire sizes and bunching capacities to suit various industrial needs.
