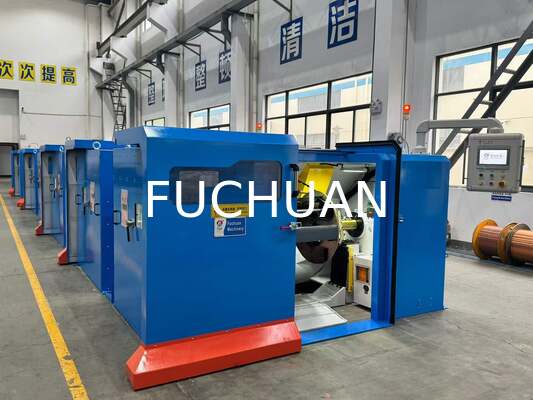

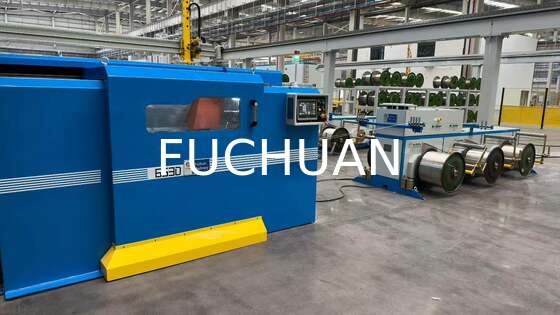

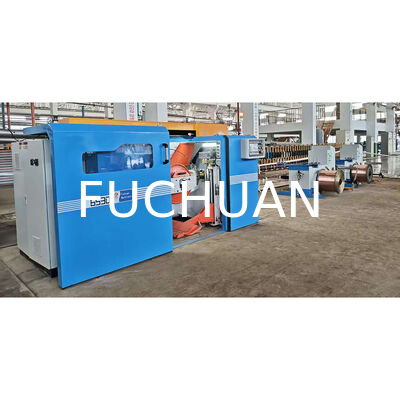

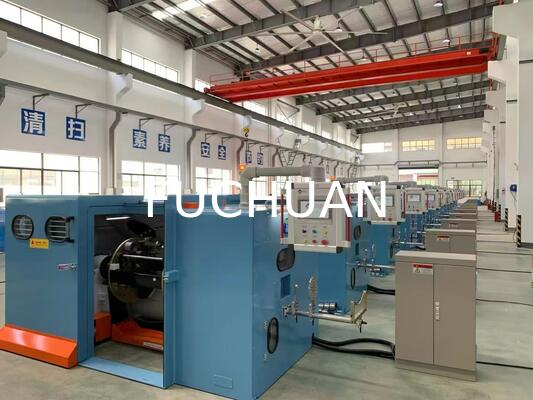

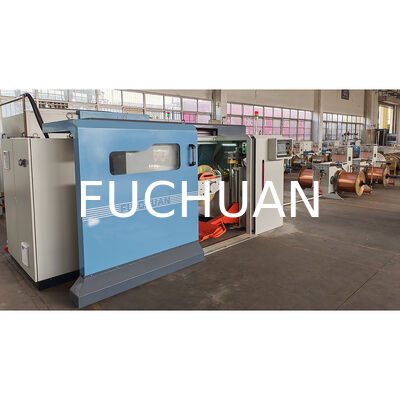

1000KG Copper Wire Combining Machine Fit For Bobbin DIA 630mm Machine Designed For Combining Multiple Copper Wires Into Single Output

Product Description:

The Copper Wire Bunching Machine is a highly efficient and versatile piece of equipment specifically designed for the copper wire manufacturing industry. Engineered to meet the demands of modern wire processing, this machine excels in producing tightly bundled copper wire strands with precision and speed. It is an essential tool for manufacturers seeking to improve productivity and maintain high-quality standards in copper wire production.

One of the standout features of this Copper Wire Bunching Machine is its compatibility with bobbins up to a diameter of 630mm. This wide fit range ensures that the machine can accommodate various spool sizes, making it suitable for different production requirements. The spool specifications it supports range from φ500mm to φ630mm, providing flexibility for manufacturers to work with a variety of wire coils without the need for frequent adjustments or additional equipment.

The machine is equipped with a user-friendly 7-inch WEINVIEW touch screen interface, which simplifies operation and control. This advanced touch screen allows operators to easily set parameters, monitor the production process, and make real-time adjustments to optimize performance. The intuitive design reduces the learning curve and minimizes the risk of operational errors, thereby enhancing overall efficiency and safety.

Designed to handle soft wires such as flexible wire and insulated wire, this Copper Wire Bunching Machine is ideal for producing bundled copper wires that require delicate handling. The capability to manage flexible and insulated wires without damaging the material ensures that the finished product maintains its integrity and meets stringent quality standards. This feature is particularly important in industries where wire flexibility and insulation are critical for electrical performance and durability.

Powering the machine is a robust motor with a power range of 5 to 15 KW, providing sufficient energy to maintain consistent operation even under demanding workloads. This motor power range allows for smooth and reliable performance, ensuring that the copper wire bundling process is both efficient and precise. The strong motor also contributes to the machine’s ability to handle various wire types and sizes, making it a versatile asset in any copper wire manufacturing facility.

In addition to its primary function as a Copper Wire Bunching Machine, this equipment can also be regarded as a Copper Wire Stranding Machine and Copper Wire Interconnecting Machine due to its multifunctional capabilities. It effectively strands multiple copper wires together, creating uniform and tightly bundled wire groups, which are essential for electrical applications requiring enhanced conductivity and mechanical strength. Its ability to interconnect wires seamlessly makes it invaluable for producing complex wire assemblies used in automotive, aerospace, and electronic industries.

Overall, the Copper Wire Bunching Machine is an indispensable machine in the copper wire production line. Its compatibility with large bobbin sizes, advanced touch screen control, capacity to handle soft and insulated wires, and powerful motor make it a highly reliable and efficient solution for wire bundling needs. By incorporating this machine into their production process, manufacturers can significantly improve the quality and consistency of their copper wire products while optimizing operational efficiency and reducing labor costs.

Whether you are looking to enhance your existing copper wire manufacturing setup or invest in a new system, this Copper Wire Bundling Machine offers the perfect combination of technology, durability, and versatility. It stands out as a premier choice for anyone seeking to produce high-quality copper wire bundles with precision and ease.

Features:

• Product Name: Copper Wire Bunching Machine
• Suitable for spool specifications: φ500mm - φ630mm
• Machine Weight: 1000KG
• Strand Lay Length: 0.8 ~ 4.0mm, 14 Class
• Equipped with a 7-inch WEINVIEW touch screen for easy operation
• Operating Speed: 1800 - 3000 RPM
• Functions as a Copper Wire Combining Machine for efficient wire processing
• Acts as a Copper Wire Intertwining Machine to ensure high-quality wire bunching
• Designed as a Copper Wire Intertwining Machine for consistent and precise wire intertwining

Technical Parameters:

Applications:

The Fuchuan Copper Wire Bunching Machine, available in various models including FC-300B, 400B, 500B, 650B, 800B, 652D, 653D, and 1250C, is a versatile and essential piece of equipment designed for efficient processing of soft wires such as flexible wire and insulated wire. Originating from China, this sophisticated machine measures 3300*1450*1600mm and weighs approximately 1000KG, ensuring a sturdy and reliable operation. With a motor power ranging from 5 to 15 KW and an intuitive touch screen operation mode, it offers ease of use combined with high performance.

This Copper Wire Interlacing Machine is widely applied in industries where precise and uniform wire bunching is critical. It is ideal for manufacturing electrical cables, power cords, and wiring harnesses, where multiple strands of copper wire need to be interlaced or twisted together to improve conductivity and flexibility. The machine’s advanced design allows it to handle various wire gauges and insulation types, making it suitable for both small-scale and large-scale industrial applications.

In scenarios requiring the Copper Wire Twisting Machine functionality, this equipment excels in twisting multiple copper wires into tightly bound bundles. This is particularly useful in producing cables that demand enhanced mechanical strength and durability, such as those used in automotive wiring, telecommunications, and household appliances. The precise control via the touch screen ensures consistent twisting speed and tension, resulting in high-quality wire groups with minimal deformation.

Furthermore, the Copper Wire Grouping Machine capability of the Fuchuan models enables efficient grouping and bunching of wires during cable assembly processes. This function is essential in creating uniform wire groups before further processing steps like insulation extrusion or jacketing. The robust construction and reliable motor power ensure stable operation, reducing downtime and maintenance costs.

Overall, the Fuchuan Copper Wire Bunching Machine is designed for applications and occasions that demand high precision, efficiency, and adaptability in handling copper wires. Its multi-functional capabilities as an interlacing, twisting, and grouping machine make it indispensable in the cable manufacturing industry, electrical engineering workshops, and any setting where high-quality copper wire processing is required.

Support and Services:

Our Copper Wire Bunching Machine is designed to provide efficient and reliable performance for bundling copper wires of various sizes. To ensure optimal operation, regular maintenance and timely technical support are essential.

Technical Support:

We offer comprehensive technical support to help you with installation, operation, and troubleshooting of the Copper Wire Bunching Machine. Our team of experts is available to guide you through setup procedures, machine calibration, and to resolve any operational issues that may arise.

Maintenance Services:

Regular maintenance is crucial for the longevity and efficiency of your machine. We provide scheduled maintenance services including inspection, lubrication, parts replacement, and performance checks to prevent unexpected downtimes.

Spare Parts and Upgrades:

Genuine spare parts and upgrade kits are available to keep your Copper Wire Bunching Machine running at peak performance. Using authentic components ensures compatibility and maintains the quality of the machine.

Training and Documentation:

We offer training sessions for operators and maintenance personnel to maximize the machine’s productivity and safety. Comprehensive user manuals and technical documentation are provided to support your team in daily operations.

Warranty and Service Agreements:

The Copper Wire Bunching Machine comes with a standard warranty covering manufacturing defects. Extended service agreements can be arranged to provide ongoing support and priority service response.

For detailed assistance, please refer to the user manual or contact our technical support team.

Packing and Shipping:

Product Packaging and Shipping for Copper Wire Bunching Machine

Our Copper Wire Bunching Machine is carefully packaged to ensure it arrives at your location in perfect condition. The machine is securely wrapped with protective materials such as foam and plastic to prevent any damage during transit. It is then placed inside a sturdy wooden crate or reinforced carton box, providing additional protection against shocks and vibrations.

For shipping, we offer multiple options depending on your location and urgency. The machine can be shipped via sea freight, air freight, or express courier services. We collaborate with reliable logistics partners to guarantee timely and safe delivery. All shipments are properly documented and include necessary customs paperwork to facilitate smooth import and export processes.

Upon receiving the Copper Wire Bunching Machine, please inspect the packaging and product for any visible damage. If any issues are found, notify the shipping carrier immediately and contact our customer service team for assistance.

We are committed to providing excellent packaging and shipping services to ensure your satisfaction and the optimal performance of your Copper Wire Bunching Machine.

FAQ:

Q1: What brand manufactures the Copper Wire Bunching Machine?

A1: The Copper Wire Bunching Machine is manufactured by the brand Fuchuan.

Q2: What models are available for the Copper Wire Bunching Machine?

A2: The available models for the Copper Wire Bunching Machine include FC-300B, FC-400B, FC-500B, FC-650B, FC-800B, FC-652D, FC-653D, and FC-1250C.

Q3: Where is the Copper Wire Bunching Machine produced?

A3: The Copper Wire Bunching Machine is produced in China.

Q4: What is the primary use of the Copper Wire Bunching Machine?

A4: The Copper Wire Bunching Machine is primarily used for bunching copper wires together efficiently to prepare them for further processing or manufacturing.

Q5: Can the Copper Wire Bunching Machine handle different wire sizes?

A5: Yes, the Copper Wire Bunching Machine models such as FC-300B through FC-1250C are designed to handle a variety of wire sizes, accommodating different production needs.
