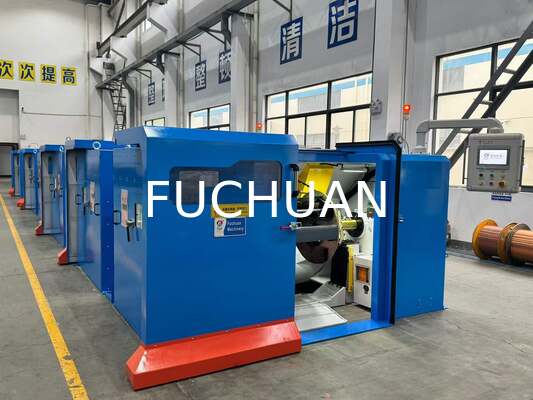

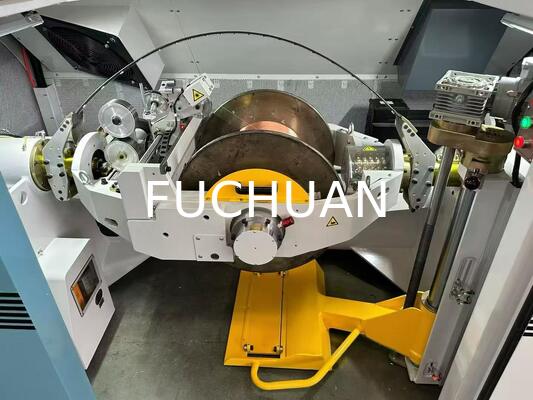

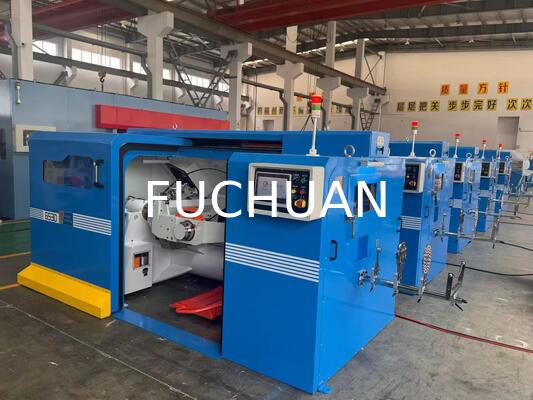

Fit For Bobbin DIA 630mm Copper Wire Bunching Machine Including Motorpower 5-15 KW and Spool Specifications φ500mm-φ630 Designed for Wire Cable Bunching

Product Description:

The Copper Wire Bunching Machine is an advanced and highly efficient piece of equipment designed specifically for the processing and handling of copper wires in various industrial applications. Engineered to meet the demands of modern manufacturing environments, this machine excels in combining, bundling, and interlacing copper wires with exceptional precision and speed, making it an invaluable asset in the wire production industry.

One of the standout features of this Copper Wire Bunching Machine is its impressive operating speed, which ranges from 1800 to 3000 RPM. This high-speed capability ensures rapid processing of copper wires, significantly enhancing productivity and throughput. Whether you are working with flexible wires or insulated soft wires, the machine accommodates these variations with ease, providing consistent results without compromising quality.

The machine offers a strand lay length adjustable between 0.8 to 4.0mm, classified as 14 Class, allowing for precise control over the wire twisting and bunching process. This flexibility means that it can handle a wide variety of wire sizes and configurations, catering to diverse production requirements. The ability to fine-tune the strand lay length ensures that the final product meets stringent industry standards and customer specifications.

Control and automation are critical in modern wire processing equipment, and this Copper Wire Bundling Machine is equipped with sophisticated PLC (Programmable Logic Controller) control systems. The PLC control facilitates accurate pitch control and seamless operation, reducing the need for manual intervention and minimizing the risk of errors. Operators can easily program and adjust parameters to optimize the bundling process, resulting in improved consistency and reduced downtime.

Despite its robust construction and heavy-duty capabilities, the Copper Wire Combining Machine weighs just 1000KG, making it relatively compact and manageable for installation within various manufacturing setups. Its design emphasizes both durability and ease of maintenance, ensuring long-term reliability and minimal operational interruptions. This weight balance also contributes to the machine’s stability during high-speed operation, safeguarding the quality of the wire bundles produced.

The machine’s versatility extends to its ability to handle soft wires, including flexible and insulated wires, which are commonly used in electrical, telecommunications, and automotive industries. By efficiently combining and interlacing these types of wires, the Copper Wire Interlacing Machine facilitates the production of complex cable assemblies and harnesses that meet the rigorous demands of modern electronic and electrical systems.

In summary, the Copper Wire Bunching Machine is a high-performance, versatile, and reliable piece of equipment that combines the functions of a Copper Wire Combining Machine, Copper Wire Bundling Machine, and Copper Wire Interlacing Machine into one seamless solution. Its advanced features such as a high operating speed of 1800-3000 RPM, adjustable strand lay length of 0.8 to 4.0mm (14 Class), PLC pitch control, and a manageable weight of 1000KG make it an ideal choice for manufacturers seeking to enhance efficiency and product quality. Whether your application involves flexible wire or insulated wire, this machine delivers precise, consistent, and high-speed wire processing to meet the evolving needs of the industry.

Features:

• Product Name: Copper Wire Bunching Machine
• Operation Mode: Touch Screen Operation for easy and efficient control
• Touch Screen: 7 Inches WEINVIEW, providing a user-friendly interface
• Motor Power: 5-15 KW, ensuring strong and reliable performance
• Suitable for Soft Wire: Flexible Wire and Insulated Wire processing
• Weight: 1000KG, offering stable and robust construction
• Functions as a Copper Wire Grouping Machine for precise wire arrangement
• Acts as a Copper Wire Wrapping Machine to securely wrap wires
• Operates as a Copper Wire Twisting Machine for efficient wire twisting

Technical Parameters:

Applications:

The Fuchuan Copper Wire Bunching Machine, available in models FC-300B, 400B, 500B, 650B, 800B, 652D, 653D, and 1250C, is a highly efficient and reliable solution designed for various industrial applications involving copper wires. Originating from China, this advanced equipment is engineered to meet the demanding requirements of modern cable manufacturing and electrical component production. With a robust motor power of 11KW and a magnetic powder clutch rated at 1.2kgf, the machine ensures precise and stable operation, making it ideal for continuous production environments.

This Copper Wire Combining Machine is particularly suited for occasions where multiple copper strands need to be intertwined or grouped to form high-quality electrical cables. Its touch screen operation mode simplifies the control process, allowing operators to easily set parameters and monitor the production in real-time. Additionally, the PLC pitch control feature guarantees uniform wire spacing and consistent bunching quality, which is critical in producing cables with excellent conductivity and durability.

The Copper Wire Interweaving Machine is widely used in manufacturing sectors that require the grouping of copper wires into specific configurations for electrical wiring, power transmission cables, and communication cables. Its substantial weight of 1000KG ensures machine stability during high-speed bunching operations, reducing vibrations and enhancing the precision of wire arrangements. This makes it an indispensable tool in factories focusing on cable assembly and wire harness production.

Moreover, the Copper Wire Grouping Machine is highly versatile and can be applied in various scenarios such as automotive wiring harness manufacturing, electrical appliance production, and renewable energy cable assembly. Its advanced design enables seamless integration into existing production lines, boosting productivity and reducing manual labor costs. The Fuchuan Copper Wire Bunching Machine is thus an essential equipment for industries aiming to improve the quality and efficiency of copper wire processing.

In summary, whether for combining, interweaving, or grouping copper wires, the Fuchuan Copper Wire Bunching Machine series offers unmatched performance, precision, and ease of use. Its combination of powerful motor, magnetic powder clutch, and intelligent control systems makes it the preferred choice for manufacturers seeking reliable and high-quality copper wire processing solutions.

Support and Services:

Our Copper Wire Bunching Machine is designed for high efficiency and precision in wire processing. To ensure optimal performance, regular maintenance and proper handling are essential. We provide comprehensive technical support including installation guidance, operational training, and troubleshooting assistance.

Our technical team is equipped to help you with machine setup, parameter adjustments, and software updates to keep your equipment running smoothly. We also offer preventive maintenance services to reduce downtime and extend the lifespan of your machine.

For any technical inquiries or service requests, detailed manuals and instructional materials are available to assist you. We are committed to providing timely and effective support to enhance your production capabilities and ensure customer satisfaction.

Packing and Shipping:

Our Copper Wire Bunching Machine is carefully packaged to ensure it arrives in perfect condition. Each unit is securely wrapped with protective materials and placed inside a sturdy wooden crate to prevent any damage during transit. The packaging is designed to withstand rough handling and environmental factors, ensuring the machine’s safety from our facility to your doorstep.

For shipping, we offer flexible options including sea freight, air freight, and land transportation, depending on your location and urgency. We coordinate with reliable carriers to provide timely delivery and full tracking support. Prior to shipment, all machines undergo thorough inspection and testing to guarantee optimal performance upon arrival.

Additionally, we provide detailed documentation including user manuals, installation guides, and warranty information within the package. Our customer support team is available to assist with any inquiries related to shipping or product setup to ensure a smooth and satisfactory experience.

FAQ:

Q1: What brand manufactures the Copper Wire Bunching Machine?

A1: The Copper Wire Bunching Machine is manufactured by the brand Fuchuan.

Q2: What are the different model numbers available for this Copper Wire Bunching Machine?

A2: The available model numbers are FC-300B, FC-400B, FC-500B, FC-650B, FC-800B, FC-652D, FC-653D, and FC-1250C.

Q3: Where is the Copper Wire Bunching Machine produced?

A3: The Copper Wire Bunching Machine is made in China.

Q4: What types of wires can the Fuchuan Copper Wire Bunching Machine handle?

A4: The machine is designed primarily for bunching copper wires of various sizes, suitable for electrical and manufacturing applications.

Q5: Is the Copper Wire Bunching Machine suitable for industrial use?

A5: Yes, the Fuchuan Copper Wire Bunching Machine is built to meet industrial standards and is widely used in wire manufacturing and processing industries.
