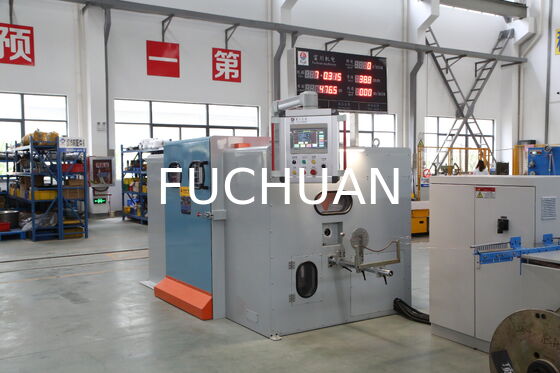

Electricity Operated Copper Wire Wrapping Machine Featuring PLC Control Pitch for Accurate and Wire Wrapping Applications

Product Description:

The Copper Wire Bunching Machine is an advanced and highly efficient piece of equipment designed specifically for the processing and handling of copper wires. This machine is a vital tool in the electrical and manufacturing industries, where the precise and reliable bunching of copper wires is essential for producing high-quality cables and wire products. Known for its robust construction and cutting-edge technology, this machine ensures optimal performance and durability, making it an indispensable asset for any production line involved in wire bundling and assembly.

One of the standout features of this Copper Wire Bunching Machine is its user-friendly touch screen operation mode. This modern interface allows operators to easily control and monitor the machine’s functions, reducing human error and increasing operational efficiency. The touch screen system provides intuitive navigation through various settings, enabling quick adjustments and real-time feedback, which is crucial for maintaining consistent quality throughout the wire bunching process.

Precision is key when it comes to wire processing, and this machine excels with its PLC-controlled pitch system. The programmable logic controller (PLC) ensures accurate pitch control, allowing for precise spacing and alignment of copper wires during the bunching operation. This level of control is essential for producing uniform wire assemblies, which directly impacts the electrical performance and mechanical strength of the final products. The PLC control also enhances automation capabilities, reducing the need for manual intervention and increasing overall productivity.

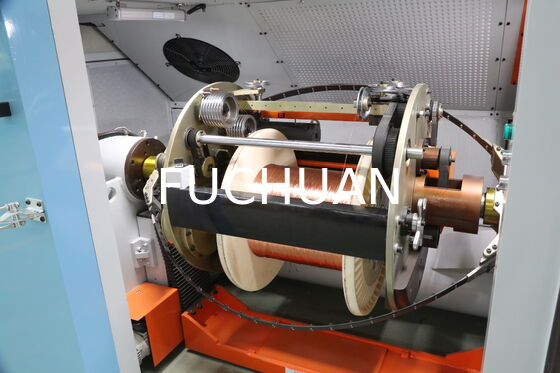

Designed to accommodate a bobbin diameter of up to 630mm, the Copper Wire Bunching Machine offers great flexibility for handling a wide variety of wire sizes and lengths. This capability makes it suitable for different production requirements, from small-scale operations to large industrial manufacturing. The machine’s compatibility with larger bobbins helps streamline the production process by minimizing the frequency of bobbin changes, thereby reducing downtime and improving workflow efficiency.

Another critical component of this machine is its magnetic powder clutch, which provides a smooth and consistent transmission of power. With a force rating of 1.2kgf, the magnetic powder clutch ensures stable torque control during the bunching process, which is vital for maintaining wire integrity and preventing damage. This feature contributes to the machine’s reliable performance and extends its operational lifespan by reducing mechanical wear and tear.

This Copper Wire Bunching Machine is not only versatile but also backed by a comprehensive 1-year warranty, ensuring peace of mind for users regarding its quality and reliability. The warranty reflects the manufacturer’s confidence in the machine’s design and construction, providing customers with dependable after-sales support and service.

In addition to its primary function as a bunching machine, this equipment is often associated with related processes such as copper wire interlacing, copper wire stranding, and copper wire interweaving. Whether you need a Copper Wire Interlacing Machine, Copper Wire Stranding Machine, or Copper Wire Interweaving Machine, this product offers multi-functional capabilities that can meet diverse wire manufacturing needs. Its adaptability to various wire processing techniques makes it a valuable investment for businesses aiming to expand their production capabilities and improve product quality.

Overall, the Copper Wire Bunching Machine combines precision engineering, advanced control systems, and robust construction to deliver exceptional performance in wire processing applications. Its touch screen operation, PLC pitch control, compatibility with large bobbins, and magnetic powder clutch make it a top choice for manufacturers seeking efficiency, reliability, and versatility in their wire bunching equipment. With a solid warranty and proven technology, this machine stands out as a leading solution in the market for copper wire interlacing, stranding, and interweaving processes.

Features:

• Product Name: Copper Wire Bunching Machine
• Power Source: Electricity
• Strand Lay Length: 0.8~4.0mm 14 Class
• Magnetic Powder Clutch with 1.2kgf torque
• 7 Inches WEINVIEW Touch Screen for easy operation
• Compact Dimension: 3300*1450*1600mm
• Efficient Copper Wire Wrapping Machine functionality
• High-performance Copper Wire Stranding Machine capability
• Reliable Copper Wire Bundling Machine for precise wire bunching

Technical Parameters:

Applications:

The Fuchuan Copper Wire Bunching Machine, available in multiple models including FC-300B, 400B, 500B, 650B, 800B, 652D, 653D, and 1250C, is a highly efficient and versatile piece of equipment designed specifically for various wire processing applications. Originating from China, this machine is engineered to meet the rigorous demands of modern copper wire manufacturing, making it an essential asset in industrial settings where precision and reliability are paramount.

This Copper Wire Wrapping Machine is ideal for occasions requiring the bundling or wrapping of copper wires into organized strands. Its advanced design supports strand lay lengths from 0.8 to 4.0mm across 14 classes, ensuring exceptional flexibility and control over wire twisting and bunching processes. With a substantial weight of 1000KG and a powerful 1.2kgf magnetic powder clutch, the machine delivers stable and consistent performance even under heavy-duty operations.

The 7-inch WEINVIEW touch screen interface offers an intuitive and user-friendly control panel, allowing operators to easily adjust settings and monitor the machine's status in real-time. This feature significantly enhances productivity by reducing setup times and minimizing errors during operation. Furthermore, the machine is compatible with bobbins up to a diameter of 630mm, accommodating a wide range of wire sizes and coil formats.

In scenarios where copper wire twisting and stranding are critical, such as in cable manufacturing plants, electrical component production, and wire harness assembly lines, the Fuchuan Copper Wire Twisting Machine and Copper Wire Stranding Machine excel by providing precise strand lay and high-quality bunching results. Its robust construction and advanced technology make it suitable for continuous operation in demanding environments, ensuring consistent output and minimal downtime.

Whether used for producing electrical cables, automotive wiring, or telecommunications wiring, the Fuchuan Copper Wire Bunching Machine stands out as a reliable and efficient solution. Its adaptability across different wire processing tasks, combined with cutting-edge features, makes it an indispensable tool for manufacturers aiming to enhance product quality and operational efficiency.

Support and Services:

Our Copper Wire Bunching Machine is designed to provide efficient and reliable performance for bundling copper wires with precision. To ensure optimal operation, regular maintenance and timely technical support are essential.

Technical Support:

We offer comprehensive technical support for the Copper Wire Bunching Machine, including installation guidance, troubleshooting assistance, and operational training. Our team of experts is available to help you resolve any issues promptly to minimize downtime.

Maintenance Services:

Proper maintenance is crucial for the longevity and efficiency of your machine. We provide scheduled maintenance services that include inspection, lubrication, parts replacement, and performance tuning. Regular maintenance helps prevent unexpected breakdowns and maintains the quality of wire bunching.

Spare Parts:

We supply genuine spare parts to ensure compatibility and durability. Using original parts helps maintain machine performance and extends its service life.

Upgrades and Customization:

To meet evolving production needs, we offer machine upgrades and customization options. Our team can assist you in enhancing your machine’s capabilities to improve productivity and adapt to specific wire bunching requirements.

Training:

Comprehensive training programs are available for operators and maintenance personnel. Proper training ensures safe operation and effective maintenance of the Copper Wire Bunching Machine.

For optimal support, please ensure that your machine model and serial number are available when seeking assistance.

Packing and Shipping:

Product Packaging and Shipping

The Copper Wire Bunching Machine is carefully packaged to ensure safe delivery and to prevent any damage during transportation. The machine is securely wrapped with protective materials such as foam padding and plastic film to safeguard against moisture, dust, and impact.

For shipping, the machine is placed in a sturdy wooden crate or a reinforced carton box, depending on the size and weight of the unit. The packaging is designed to keep the machine stable and immobile during transit.

We offer multiple shipping options including sea freight, air freight, and land transportation to accommodate customer needs and ensure timely delivery. All shipments are handled by reliable logistics partners, and tracking information will be provided once the order is dispatched.

Before shipping, each Copper Wire Bunching Machine undergoes thorough quality inspection and testing to guarantee optimal performance upon arrival.

For international orders, we provide all necessary documentation including commercial invoice, packing list, and certificate of origin to facilitate smooth customs clearance.

Our customer support team is available to assist with any inquiries regarding packaging, shipping schedules, or handling requirements to ensure a seamless purchasing experience.

FAQ:

Q1: What brand manufactures the Copper Wire Bunching Machine?

A1: The Copper Wire Bunching Machine is manufactured by the brand Fuchuan.

Q2: What are the available model numbers for the Copper Wire Bunching Machine?

A2: The available model numbers are FC-300B, FC-400B, FC-500B, FC-650B, FC-800B, FC-652D, FC-653D, and FC-1250C.

Q3: Where is the Copper Wire Bunching Machine produced?

A3: The Copper Wire Bunching Machine is produced in China.

Q4: What types of wire can the Fuchuan Copper Wire Bunching Machine handle?

A4: The machine is designed primarily for bunching copper wires but can also handle other types of conductive wires depending on the model specifications.

Q5: Is the Copper Wire Bunching Machine suitable for both small and large scale production?

A5: Yes, with various models available like FC-300B for smaller tasks and FC-1250C for larger scale production, the machine can cater to different production needs.
