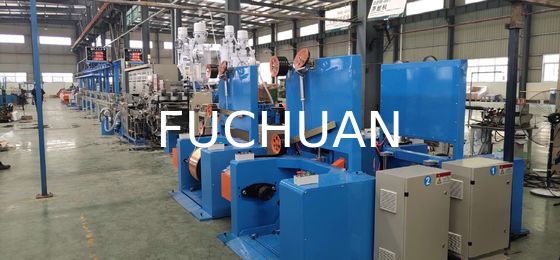

Compact Structure Wire Extruder Machine For Drawing BV Building Wire

Compact Structure Wire Extruder Machine For Drawing BV Building Wire
Compact Structure Wire Extruder Machine For Drawing BV Building Wire

Large Image :  Compact Structure Wire Extruder Machine For Drawing BV Building Wire

Product Details:
Place of Origin: China JiangSu
Brand Name: Fuchuan
Certification: ISO9001:2008
Model Number: Wire Extruder Machine
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: normal packing
Delivery Time: 45days
Payment Terms: T/T, L/C
Supply Ability: 500 sets one year
Contact Now

Compact Structure Wire Extruder Machine For Drawing BV Building Wire

Description
Name: Wire Extruder Machine Structure: Compact Structure
Stranding Section Area(mm²): 0.05～2.5 Core Wire Single Wire Dia(mm): Φ0.5～1.5
Core Wire Stranding Outer Dia(mm）: Φ1.0～3.0 Pitch(mm): 6.3-52.3(24 Classes)
Highlight:

wire extrusion machine

,

wire stranding machine

,

Compact Wire Extruder Machine

Compact Structure Wire Extruder Machine For Drawing BV Building Wire



Wire Extruder Machine Quick detail :



Wire Extruder Machine apply for drawing and extrude BV building wire,LAN cable and local cable.Merits: 1. Integrated design of annealing and pre-heating, equipped with automatic tension adjusting system, and ensure the wire diameter uniformity of the copper wire elongation and conductor. 2. The plastic extruder main machine using non-adjustable crosshead, which can ensure concentricity of core wire over 95%.



Wire Extruder Machine Specification:



Equipment usage BV building wire LAN cable-2
Inlet copper wire diameter Φ2.5～3.0mm Φ2.5-3.0mm
Outlet copper wire diameter Φ0.8～1.78mm Φ0.4-0.9mm
Extrusion finished wire diameter Φ2.0～5.0mm Φ0.7-1.5mm
max speed 300 1200
max die number 17 17
Mechanical reduction ratio 20% 20%
Capstan reduction ratio 15% 15%
drawing power 45KW 45KW
Annealing type DC 3phase DC 3phase
Wire accumulator rack Vertical accumulator Vertical accumulator
Extruder main machine 70 65
Injection machine 45Horizontal injection machine 35Horizontal injection machine
Extruder main machine power 22KW 22KW
Printer Double head printer Single head printer
Cooling water tank Double layer Double layer
Capstan 510Double wheels 410double wheels
Wire accumulator Horizontal Horizontal
Take up machine Shaft or coiling machine Shaft



Other information:



active pay off or passive pay off



Terms of payment:



FOB Shanghai / Ningbo



Payment terms:



30% down payment,70% before shipment



Delivery time:



45-60 days after receive the downpayment



Origin:



China



Minimum order:



1set
